45mm Round Electric Brake Axle Kit

$655.60$848.00

Frequently Bought Together

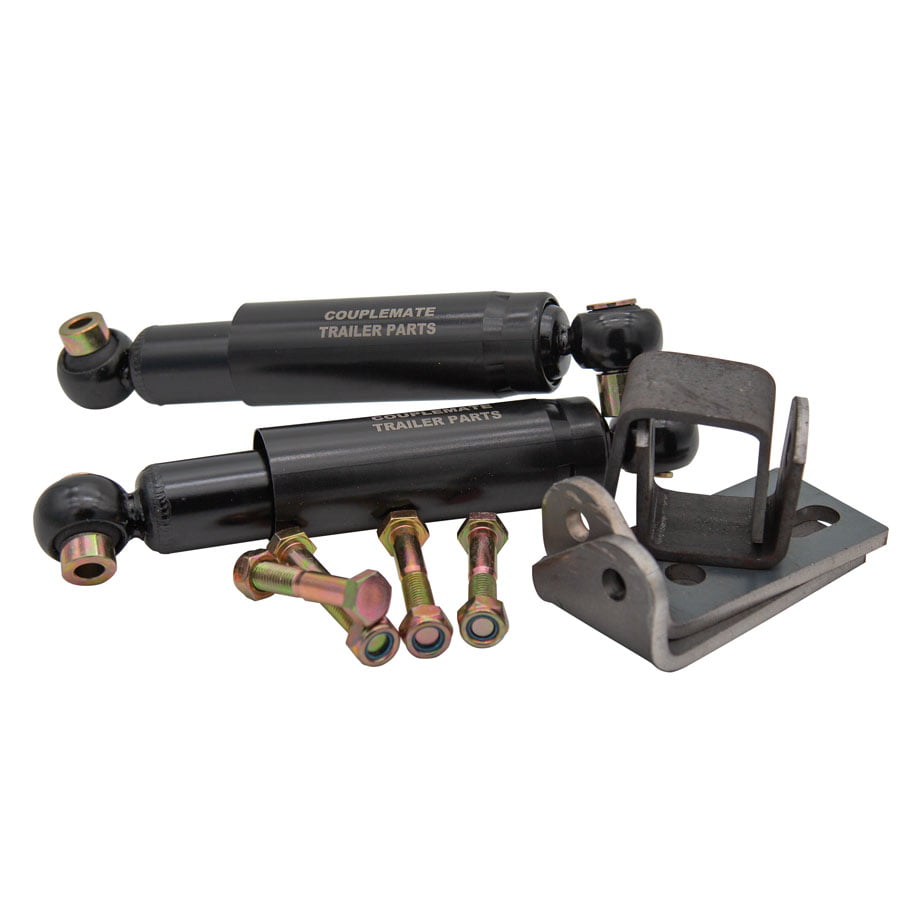

Caravan Shock Absorber Upgrade Kit

How do Couplemate™ Shock Absorbers make a difference?

Smoother towing experience with minimal bounce.
✓ Reduce payload rattle by dampening suspension.
Designed for towing longevity and easy installation.

Designed and manufactured by Couplemate™.

Enter the Face-to-Face length of your axle. (mm).
Please enter a number from 1000 to 2310.

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

45mm Round Electric Brake Axle Kit

45mm Round Electric Brake Axle is a popular braked axle for a budget trailer and camper up to 1600kg.

Couplemate axles are classified as Australian made with most components made in Australia. Products made in Australia by Australian labour is your guarantee of quality craftsmanship.

We back Australian-made quality with a lifetime warranty on a faulty product.

Here is why Couplemate Make One of The Best Electric Brake Axles

  • BlueScope Steel
  • Australian made Drums
  • Premium electric Backing plates
  • Japanese Bearings
  • Pre-adjusted brakes
  • Finally, Couplemates lifetime warranty against faulty workmanship

Electric braked axles on 45mm Round Axles are

  • Ford – 5 x 1/2″ Studs
  • HT Holden – 5 x 7/16″ Studs
  • HQ Holden – 5 x 7/16″ Studs
  • Commodore – 5 x 7/16″ Studs
  • 5 Stud Landcruiser – 5 x 9/16″ Studs
  • 5 Stud Landcruiser Parallel –  – 5 x 9/16″ Studs
  • Landcruiser OffRoad Parallel – 5 x 9/16″ Studs
  • 6 Stud Landcruiser – 6 x 1/2″ Studs
  • Parallel Landcruiser – 6 x 1/2″ Studs
  • 6 Stud Landcruiser OffRoad – 6 x 1/2″ Studs
  • 6 Stud Landcruiser OffRoad Parallel – 6 x 1/2″ Studs

The 45mm Round Electric brake axle is favoured amongst campers because they are relatively cheap compared to the more robust Square Electric axle kits.

Please review our range of electric brake controllers here.

This kit includes

Also, consider a pair of shock absorbers for your caravan. They absorb highway energy and prolong the life of axle components. Click here to review shock absorbers.

How to calculate the face-to-face measurement.

  1. Measure the offset wheel. The wheel offset is the distance between the hub’s inside and the rubber’s outside.
  2. Add 50 mm to the offset. Alternatively, choose the distance between the rubber and the chassis.
  3. Multiply by 2 for both sides. Add your chassis width to the above number.

Still unsure of what measurements to take? Check out this handy guide below:

[P] – Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] – Overall axle length (tip to tip)
[F] – Hub face-to-hub face measurement
[A] – Chassis width
[C] – Tyre clearance
[B] – Back offset
[H] – Tyre to chassis
[G] – Axle pad centres

How To Measure An Axle

Identifying Bearing Combinations

You will also need to identify your bearing combination, which can be done by pulling off a hub and bearings and locating the number laser engraved onto the bearing. You will require both the inner and the outer bearing numbers.

Where to identify bearing number. Look for the laser engraved number on the bearing.

Why should I buy Australian axle steel? Click here

If your 45mm Round Electric Brake Axle Kit looks mismatched, I will call you or me on 0733483822.

Purchase other braked axles here.

Additional information

Weight70 kg
Dimensions240 × 50 × 50 cm
Electric Brakes

HT Holden, HQ Holden, HQ OffRoad Brakes, Commodore, Commodore OffRoad Brakes, Ford, Ford OffRoad Brakes, Ford OffRoad Parallel, 6 Stud Nissan, 6 Stud Nissan OffRoad, 5 Stud Landcruiser, 5 Stud Landcruiser OffRoad, 5 Stud Landcruiser Parallel, 5 Stud Landcruiser OffRoad Parallel, 6 Stud Landcruiser, 6 Stud Landcruiser OffRoad, 6 Stud Landcruiser Parallel, 6 Stud Landcruiser OffRoad Parallel

Beam Size

45mm Round
