$1,200.00
High quality trailer and caravan axles that are built to last.

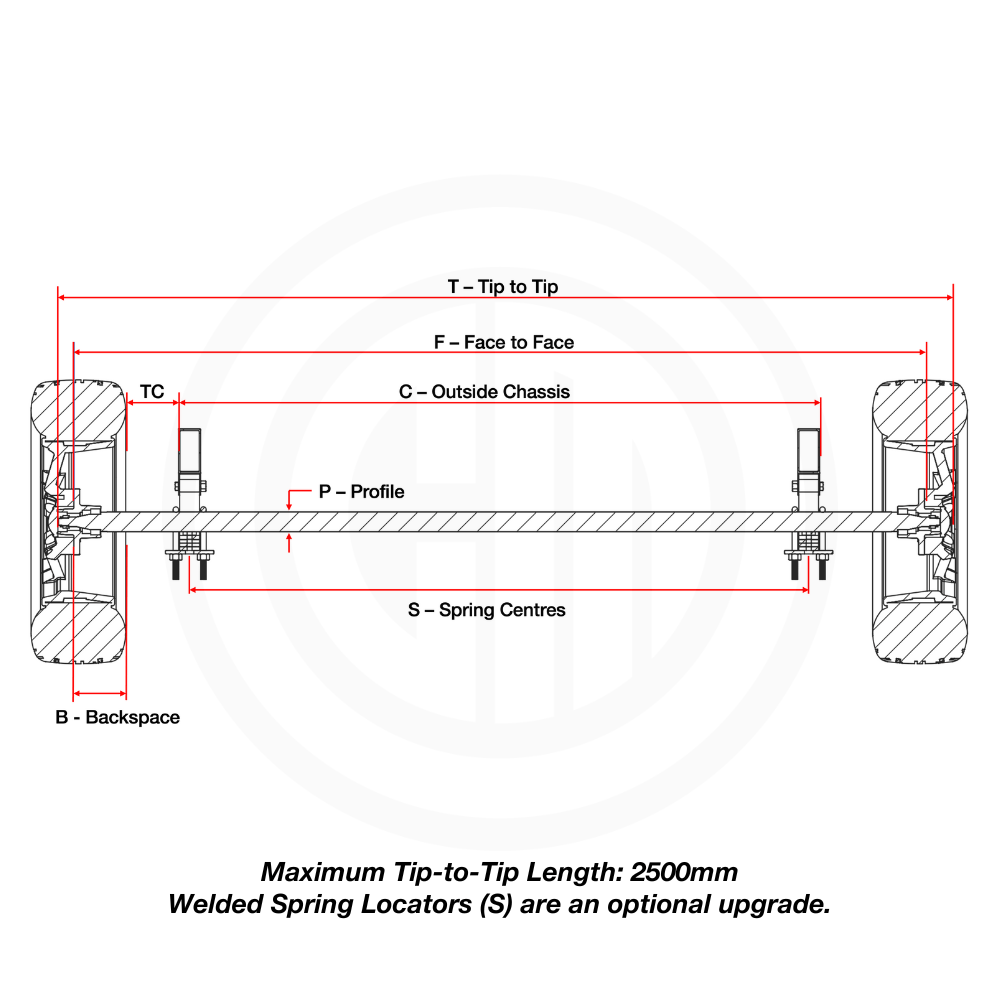

Couplemate™ axles are made to your specifications. When you place an online order, you will receive a copy of the Custom Axle Form that our team will use to build your axle.
Manufacturing ETA: 3 Working Days
✓ Heavy-duty solid axle made from 50mm square Australian steel.
✓ Each axle is rated to 2250kg and can be used for tandem 4500kg trailers.
✓ Manufactured and assembled in Australia using skilled workmanship.
Axles can be shipped to your doorstep. Local customers are welcome to collect at our Brisbane headquarters.
Shipping
2t x 50mm Square Electric Brake Axle | 6S Landcruiser
Couplemate™ specialises in manufacturing 50mm square electric brake axles for trailers and caravans.
50mm square axles are used for ATMs of around 2500kg and can be used for 4500kg ATM tandem trailer builds (two axles).
Trailer & Caravan Axles Made to Your Needs
With the large number of manufacturers and brands in Australia, it’s important to note that no two axles are the same.
Customers choose Couplemate™ axles when they need to:
- Replace a worn or bent axle on their caravan or trailer.
- Upgrade ATM rating or maximise axle capacity.
- Convert or add trailer brakes.
- Manufacture new trailers, caravans, and campers.
Wheel & Bearing Specifications
- Minimum Wheel Bore: 105mm
- PCD: 6 x 139.7mm (i.e. 6S Landcruiser)
- Wheel Studs: 1/2″ UNF
- Inner Bearing: 30210J
- Outer Bearing: 15123/245
Don’t know your stud pattern (PCD)? Find out in three easy steps.
Optional Off-Road Upgrade
Corrugated surfaces consistently wear the steel housing of standard electric brake magnets. (Think: dirt roads, potholes… the Bruce Highway during the wet season.)
If you’re looking to tackle challenging terrain with your caravan or trailer, Couplemate™ recommends upgrading to electric Off-Road brakes.
See the Off-Road version here.
Itemised List of Components
Your pre-assembled axle will arrive at your doorstep, complete with:
- 1 x 50mm Solid Beam Axle
- 2 x 12-inch Hub Drums in 6-Stud Landcruiser
- 12 x Open-Ended 1/2″ Wheel Nuts
- 2 x 12-inch Electric Backing Plate Brakes (Left) (Right)
- 2 x Drum Brake Mounts
- 4 x Japanese Bearings (with marine-grade greased)
- 2 x Grease Seals
- 2 x Dust Caps
N.B. Backing plates come with the park brake lever.
Why Choose a Couplemate™ Axle?
Built Tough, Built to Last
This kit includes electric brakes, offering precise and effective caravan braking control. This is crucial for safety, as you can rely on the brakes to respond efficiently.
Safe & Secure Foundation
Axles are the foundation of your trailer/caravan body. This kit includes electric brakes, offering precise and effective caravan braking control. This is crucial for safety, as you can rely on the brakes to respond efficiently.
Australian-Made Quality
50mm square axle kits are crafted to the highest quality and durability standards. It undergoes rigorous testing to ensure it meets or exceeds industry benchmarks. Caravan builders choose this axle for its reliability and long-lasting performance. Our expert machinists and boilermakers manufacture all Couplemate™ axles in our Brisbane warehouse.
This axle has earned the trust of top-quality caravan manufacturers. Its track record as the “axle of choice” speaks volumes about its dependability and suitability for the job. When you choose our 50mm square electric brake axle kit, you invest in peace of mind. You can confidently hit the road, knowing your caravan has a sturdy and dependable axle.
Delivered To Your Door
Couplemate™ has partnered with Direct Freight Express so we can ship your axle directly to you.
Our warehouse team secures your axles on a wrapped skid or pallet and sends them with tracking information. When your axle arrives, the truck will have a tailgate for easy unloading.
Service Lifetime Warranty
All Couplemate™ axles are warranted under our Service Lifetime Warranty.
As an Australian manufacturer, Couplemate™ only uses high-quality materials, components, and workmanship. We’re confident that your axle will handle the trials and tribulations of Australian roads, and Couplemate™ guarantees your axle will be free of defects for the service lifetime of the product (when used as intended).
Purchase other braked axles and trailer parts here
Additional information
Weight | 90 kg |
---|---|
Dimensions | 249 × 60 × 50 cm |
Materials | Australian BlueScope Steel (K1045) |
Hub Size | 12-inch |
Stud Thread | 1/2" UNF – 490300-ALKO |
Bolt Pattern (PCD) | |
Grease Seal Type | Standard |
NSK Bearing # | 15123/245, 30210J |
Hub Boss Dia | 105mm |
Beam Size | 50mm Square |
