1.5t Caravan Seal

1.5t Caravan Seal

$14.73

SKU: 493015 Category:
Couplemate accepts PayPal, Visa and Mastercard.

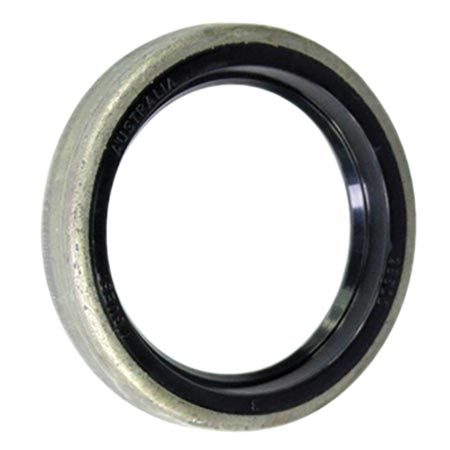

1.5t Grease Seal suits 1.5t Al-ko Trailer hubs

1.5t grease seals require care during hub insertion.

On some seals, there is a small spring inserted under the lip of the seal. Be careful not to dislodge this spring from under the lip. Dislodging this spring will certainly cause rear wheel bearing failure.

Bearings are often destroyed by this spring when it inadvertently becomes dislodged. Carefully smear a small amount of grease on the axle profile before inserting the hub over the axle.

Again, be careful with this spring, it has brought me undone several times.

1.5t Seal Specifications

  • Seal ID 52.83mm, OD 69.11mm – 493015

For more installation tips, read our Easy Steps to Install a Marine Bearing Seal Correctly post.

Always use seals with the metal outer. Rubber seals can be more difficult to insert into the hub. Furthermore, rubber seals can be found on some budget axle assemblies.

Purchase more seals here:

More great advice about seals and bearing kits from Alko.

Finally, Couplemate uses only the highest quality trailer parts on all of its axle assemblies, and that includes a wide range metal ring marine seals.

1.5t Grease Seal suits 1.5t Al-ko Trailer hubs

Additional information

Weight 0.1 kg
Dimensions 8 × 8 × 1 cm
