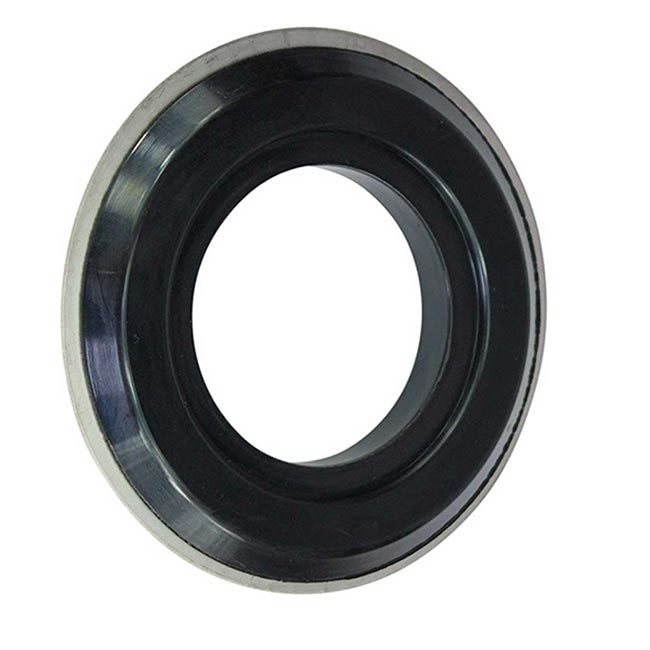

Rubber marine bearing seal suit 2t and 3t Landcruiser hubs, drums and disc rotors.

Suits Al-ko® hubs and drums OD 89.96mm, ID 60.3mm.

To summarise the video: Apply grease the lips of the seal to reduce friction during rotation.

Installation Instructions:

1. Check the seal fits perfectly onto the axle journal before proceeding further.
2. Grease the ID of the seal before installation onto the axle.
3. Insert steel ring into the hub and make sure it is hard against the outside boss of the wheel hub.
4. Insert rubber seal over the axle journal.
5. Install hub and bearings over rubber seal.

The hub should be pushed hard onto the rubber seal, and the rubber seal should be hard against the axle shoulder.

The axle shoulder prevents the seal from sliding further down the axle.

Find other seals here:

• Grease Seal Holden LM
• Marine Seal LM
• Slimline – Parallel Standard seal
• Slimline – Parallel Marine SL Seal
• 1.5t Caravan Seal
• 2t Caravan Bearing Seal | 64607
• 1.6t Dexter Seal
• 2t Dexter Seal
• Simplicity Seals

Bearings fit these axle kits

• 3t x 65mm Round Unbraked Lazy Axle Kit.
• 60mm Round 2t – 3t Electric Brake Axle Kit.
• 3t x 2pc Electric Brake Drum Al-ko.
• 60mm Round Trailer Axle 2t or 3t.

Rubber Marine Bearing Seal - 2t - 3t
