3t Japanese Bearing Kit suit 12-inch Al-ko Drums

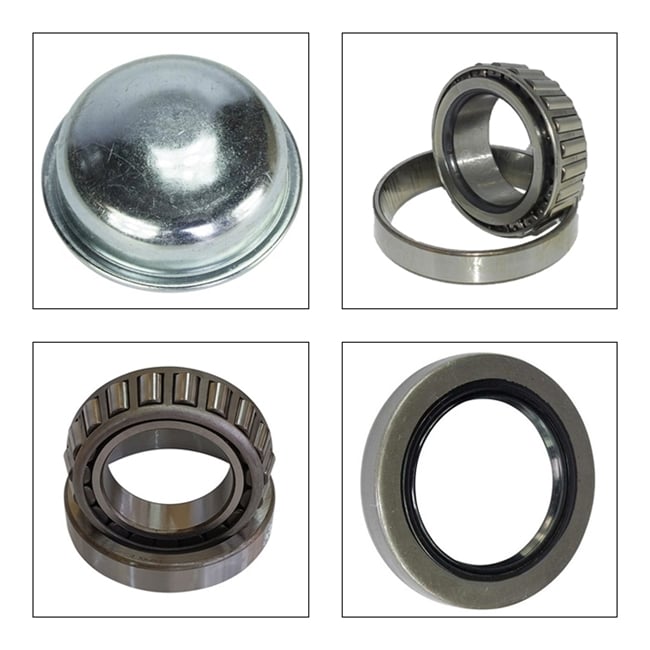

3t Bearing Kit to suit Al-ko including seals and dust cap. Japanese bearings are certainly worth the extra cash in comparison with the heartache of failing Chinese bearings.

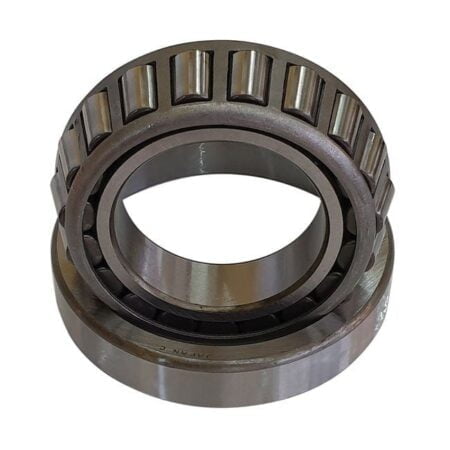

• Inner ID 50mm, OD 89.96mm - HR30210

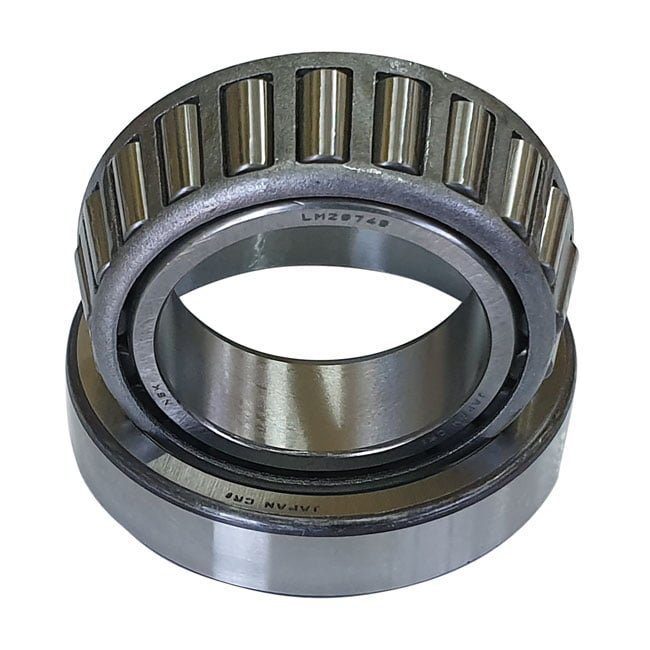

• Outer ID 38.10mm, OD 65.06mm - 29749

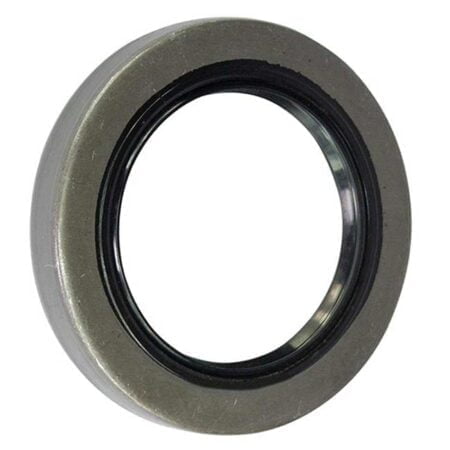

• ID 60.3mm, OD 89.96mm - 64607

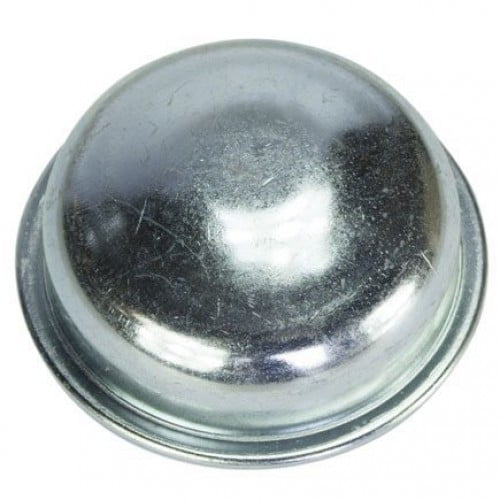

• Dust Cap OD 76mm - DC3

Installing 3t Japanese bearings is difficult if you have not watched this video.

Installation Instructions:

1. Check the seal fits perfectly onto the axle journal before proceeding further.
2. Grease ID before installation onto the axle.
3. Insert steel ring into the hub and make sure it is hard against the outside boss of the hub.
4. Insert rubber seal over the axle journal.
5. Install hub and bearings over rubber seal.

The hub should be pushed hard onto the rubber seal and the rubber seal should be hard against the axle shoulder.

The axle shoulder prevents the seal from sliding further down the axle.
