U-bolts are not usually assessed as the culprit in Caravan accidents or rollovers, possibly due to the enormous accident carnage.

Bad bearings, broken springs, loss wheel nuts are blamed as the cause of the accident.

However, the culprit in many instances is hydrogen embrittlement embodied into the u-bolt during manufacture.

Hydrogen embrittlement is one of the most underestimated processes in the manufacturing industry. Hydrogen embrittlement is embedded into all steel products that have undergone some form of heating process.

Example, plating tow balls install hydrogen embrittlement into the tow ball. Tow balls must then be de-embrittled via a slower reheating and cooling process to remove the embrittlement.

Read more about hydrogen embrittlement here.

How do I know if I have the right u-bolts on my caravan?

U-bolts are often overlooked and just not on the maintenance checking schedule before your next caravan trip.

It is difficult for manufacturers to produce a standard u-bolt as there is no Australian Standard for caravan or trailer mounted u-bolt.

u-boltsCouplemate have decided to undertake u-bolt tests to a standard similar to rated Dee Shackles. The test for dee shackles is breaking load limited (BLL) / 6 = working load limit (WLL). (not the ATM). To calculate the ATM divide the WLL by 1.5.

Example, if heavy duty u-bolts break at 23t, the rated load limit is 5.75t.

ATM is calculated at 5.75t / 1.5 = 3.83t max load.

Therefore, a 5/8″ Couplemate u-bolt kit has been tested to a maximum ATM capacity of 3.83t

The image on the right is from our 200t test rig. A force was gradually applied until breakage occurred at 23t. We called this the BLL or break load limit.

By applying the Dee Shackle or Bow shackle testing regime, we can apply a maximum safe rating of 3.83t per axle for this type of u-bolt.

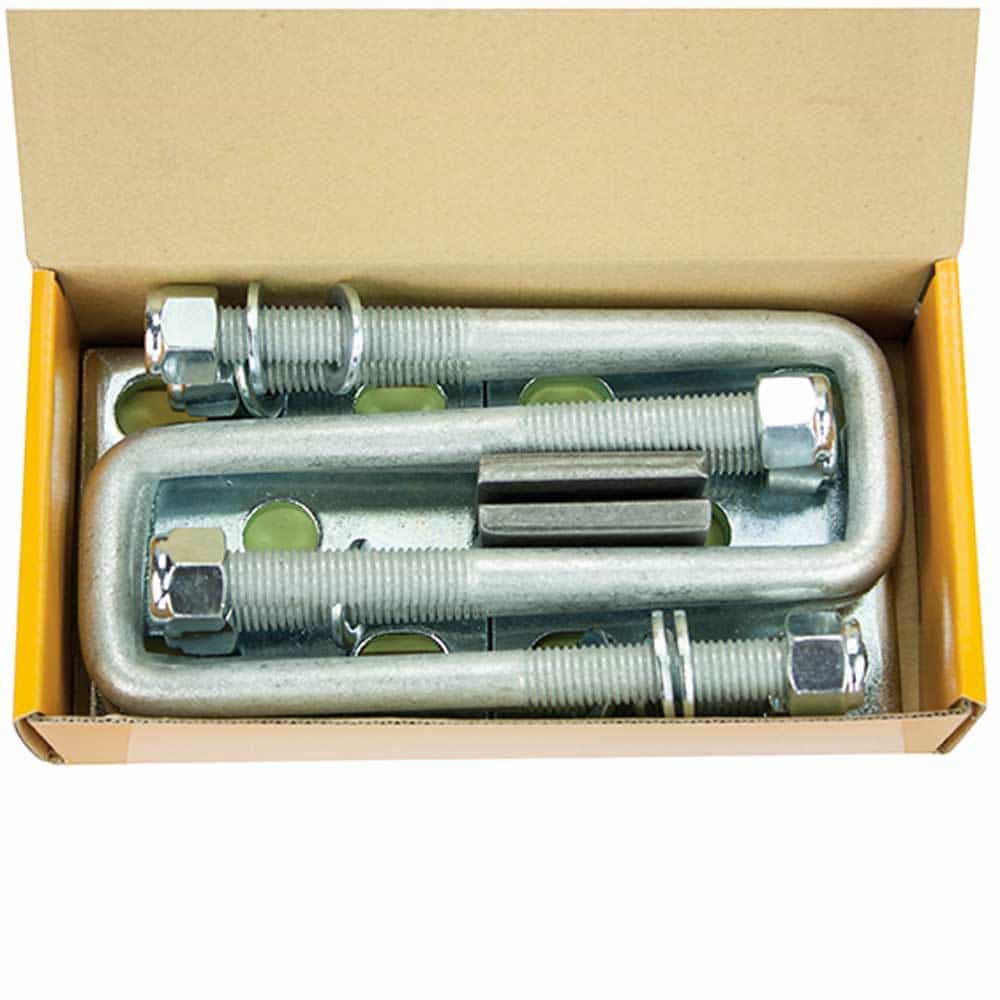

Heavy Duty U-bolt Kit specifications are

  • 2 x 5/8″ BSW Galvanised mild steel u-bolts
  • 4 x 5/8″ BSW nylocks and washers.
  • 1 x 10mm Galvanised mild steel plate.

5/8 Heavy Duty Ubolt Galvanised Kits

Springs, Axles and U-Bolts

It is a common practice by some caravan manufacturers to put spring under the axles to give extra height. Contrary to popular opinion, Couplemate not only thinks this is a bad idea, but it is unsafe and contributes to road accidents.

Axles are usually located above the spring and enclosed by the spring and the chassis rails.

What buyers do not know is there is no Australian Standard to test u-bolts used by caravan and trailer manufacturers.

A process called hydrogen embrittlement causes u-bolts to become brittle and fracture on the bend of the u-bolt.

The u-bolt on the left was bend by bare hands. This is hydrogen embrittlement. U-bolts become so soft. No chance of effectively clamping your axle to your caravan spring.

A fractured u-bolt when the axle is under the spring means the axles can easily break free once the u-bolt fracture and discharge itself out the rear of the caravan. The potential for road carnage to innocent travellers behind you is horrific.

Couplemate tests its u-bolts to destruction under its standards, due to the lack of Australian Standards, so we are well aware of this problem.

Our remedy to combat hydrogen embrittlement inserts an additional process into the manufacture of u-bolts. This process removes hydrogen embrittlement.

When making your spring choices be sure to purchase Couplemate u-bolts.

Snapping U-bolts

Hydrogen embrittlement can be readily determined by breakage at the corner of the u-bolt when it has been bent.

All bends should have a least a 5mm radius otherwise they will not match the 5mm radius curve on your axle. This radius is a critical pressure point. It is easily eliminated.

U-bolts are the only thing holding your entire caravan onto the road. They bind your axle to your springs and then your chassis.

Your u-bolts need to be well made and guaranteed. U-bolts are not a disposable item like grease or bearings or tyres. They are in place for the life of your caravan,

Please excuse me if I am OCD about u-bolts after witnessing images from accidents.

Tip: Check you u-bolts for tightness every time you pull your wheel off to check your bearings.

U-bolts are made from mild steel, can stretch and even break under shock loading. I always check mine, and I ask you to do likewise for your safety,

Finally, I would love to hear your comments below and your opinion on broken U-bolts and how close you were to disaster.
