10-inch HT Galvanised Disc Rotor
$95.75
Shipping

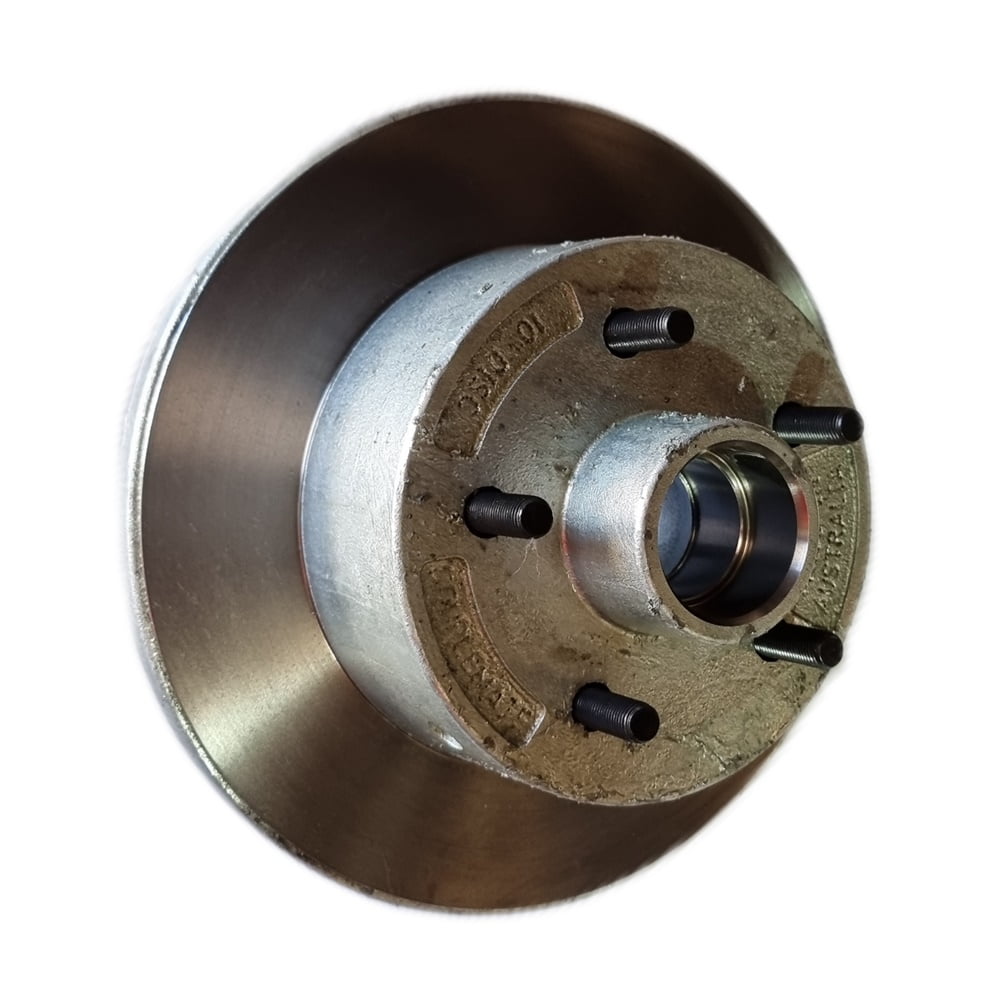

10-inch HT Galvanised Disc Rotor
10-inch HT Galvanised Disc Rotor brakes boat trailers up to 1450kg. Galvanised disk rotors are manufactured in Australia by Couplemate.
Couplemate is the only manufacturer of GAlvanised Disc Rotors in Australia. (20th April 2024)
High-grade steel is the foundation for building this superior disc rotor.
This disc rotor sets the industry standard for disc-braked axles and is the most popular rotor in our axle builds.
Disc stud pattern
- HT 4.25″ P.C.D.
Galvanised disc rotors suit standard bearings on 39mm Round Axles to 40mm Square axles or SL bearings for 45mm Round Axles and larger.
Effective Braking for Disc Rotors
When our engineers designed this galvanised rotor, we had the choice of leaving the coating on the disc face or removing it.
Removing the coating opened up opportunities for unsightly rusting.
However, it was found that the machine disc face would exhibit better braking capabilities than the coated face. Disc pads perform best on machined surfaces rather than coated surfaces like dacromat, zinc, or galvanised surfaces.
Eventually, dacroment, galvanised and zinc finishes are removed by disc pads during braking over time.
Trailer Bearing Kit required but not included
- Inner Bearing ID 35.00mm, OD 59.10mm
- Outer Bearing ID 22.00mm, OD 45.20mm
- Seal ID 43.9mm, OD 59.10mm
- Dust Cap 45.20mm
A larger braked disc rotor is available for 1600kg and 2250kg ratings and suits 5-stud and 6-stud Landcruiser hubs only.
Compatible with the following equipment:
- Mechanical Caliper Anchor Plate
- Hydraulic Caliper Anchor Plate
- 10-inch Ford Galvanised Disc Rotor
- 10-inch HQ Galvanised Disc Rotor
- Commodore 10-inch Galvanised Disc Rotor
- Galvanised Multi-Fit Tyres for Boat Trailers
- Al-ko Mechanical Disc Caliper – Forward or Center
- Al-ko Hydraulic Disc Caliper
- Stainless Hydraulic Disc Caliper Al-ko
- 2t Landcruiser Disc Rotor – ElectroGal
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 10 × 30 × 30 cm |
| Coating | Galvanised |
| Bolt Pattern (PCD) | |
| Stud Thread | 7/16" UNF – 490200 |
| NSK Bearing # | 11949/10, 12749/10, 67048/10, 68149/10 |
| Bearing Profile | Slimline (SL), Light-Medium (LM) |
