AL-KO Hydraulic Disc Pads

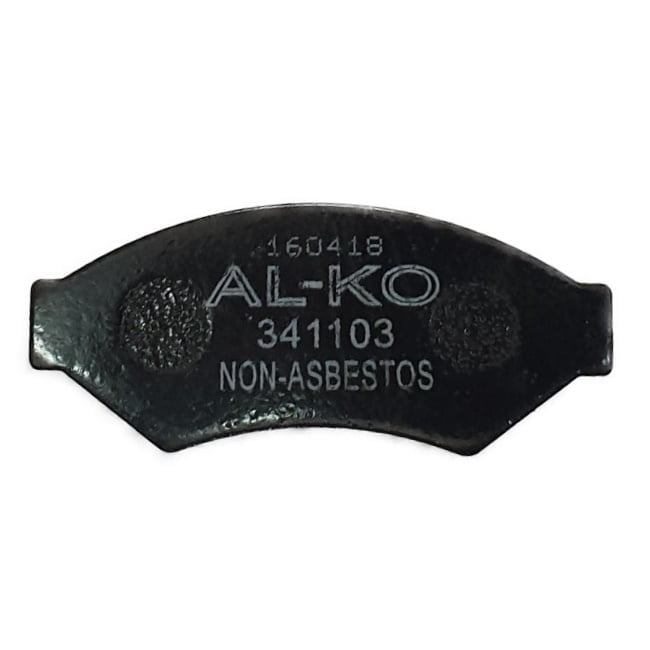

AL-KO Hydraulic Disc Pads also suit Trojan Capliers and are made of a high-quality, non-asbestos friction material that provides excellent braking performance.

Use AL-KO caliper parts with 10-inch and 12-inch disc rotors.

  • Up to 14-inch wheel brake rating to 1600kg per axle.
  • Up to 16-inch wheel brake rating to 1400kg per axle.
  • Suitable for disc thickness from 10mm to 15mm.

AL-KO installs stainless pistons in both Dacromet and stainless Calipers. Hydraulic disc brake calipers have a mounting hole spacing of 88.9mm from centre to centre.

In addition, a wide range of parts is available, as follows

Recommended operating pressure is 6.9 mpa (1000psi).

Trailers exceeding 2000 kg require independent control and a breakaway facility. Breakaway kits cause the brakes to be automatically activated if the towing vehicle and the trailer become disconnected.

Tip: When changing or checking disc pads, squeeze the piston home a little by applying a G clamp to the piston. This procedure gives you a little extra room when fitting the disc pads.

Finally, for great advice call the experts at Couplemate

Additional information

Weight0.25 kg
Dimensions10 × 2 × 2 cm
