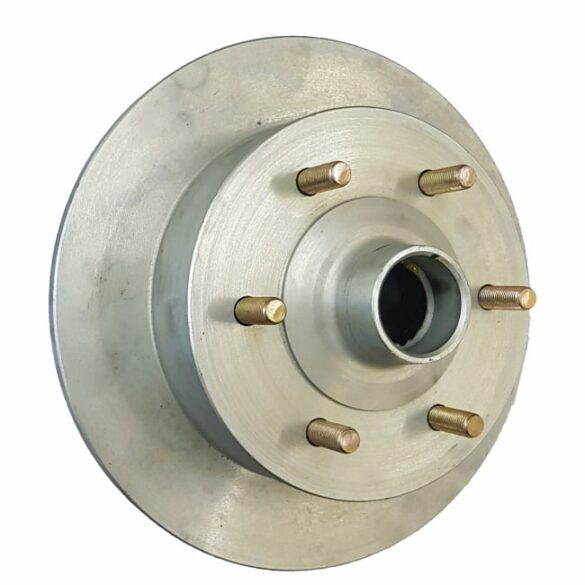

Landcruiser Slimline Disc Rotor suits Slimline Bearings
SL (Slimline) bearings. SL is used in conjunction with 5 and 6 Stud Landcruiser Disc 12″ rotors.
Landcruiser slimline disc brakes are used for applications where resistance to corrosion is paramount. The open nature of disc brakes makes washing after saltwater immersion a simple task.
Alko disc brakes also allow quicker cooling during brake applications and therefore the disc brake system is less prone to brake fade.
Alko 5 Stud and 6 stud Landcruiser 12″ rotors to suit 15″ and 16″ wheels only. Note: Smaller wheels like 14″ are not suitable for these rotors.
6 stud = 6 x 1/2″ unf threads. The PCD (Pitch Centre Diameter) is 140mm. Further, depending on the type of caliper used, the rating can be as low as 1200 kg on 16” Wheels.
If you are in doubt as to whether you have SL or LM bearings, please review the information below.
Slimline Trailer Bearing Kit is not included
- Inner ID 35.00mm, OD 59.10mm
- Outer ID 22.00mm, OD 45.20mm
- Seal ID 43.9mm, OD 59.10mm
- Grease Cap 45.20mm
Couplemate recommends against using Holden Bearings on this type of disc rotor.
Nissan disc rotors with a PCD, of 114mm, are not currently available.
