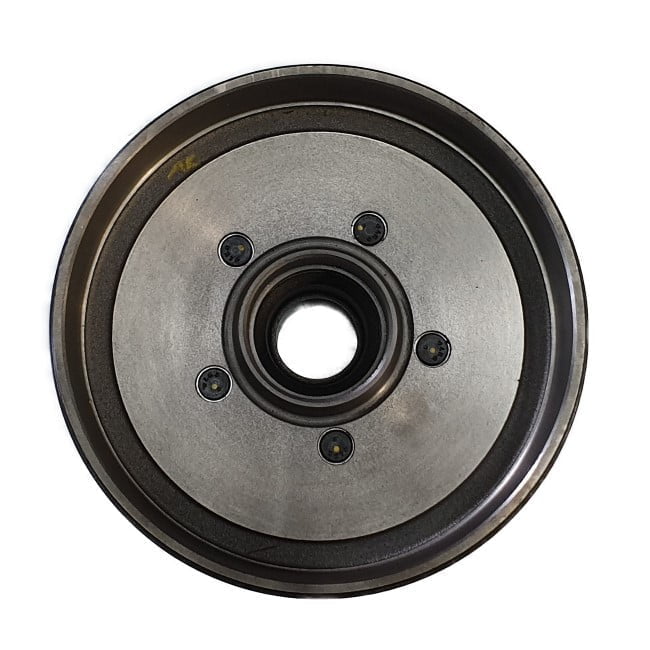

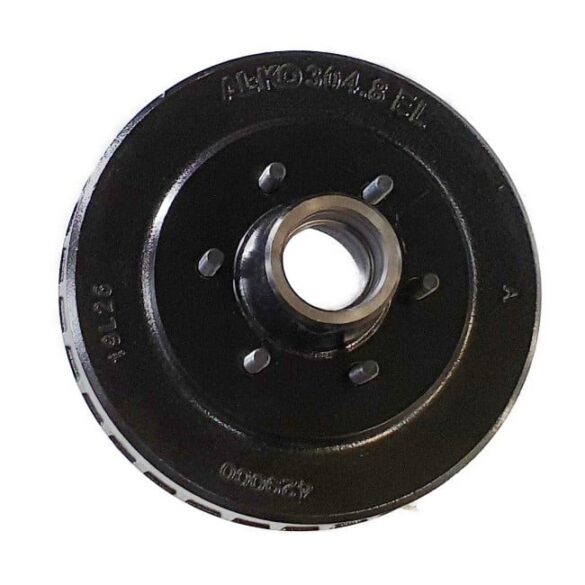

,2t Electric Brake Drum - Al-ko, Dexter to suit 12inch Electric Brakes

2t Electric Brake Drum by Al-ko or Dexter is built for rugged terrain and tough trailers. One-piece Al-ko hub drum. 2t bearings or nuts not included.

Al-ko 2t brake drums, like Couplemate parts, undergo quality testing before being released onto the market.

The checklist includes bearing tolerance, brake shoe diameter, stud depth, stud penetration and magnet face are just a few checks.

Stud heads must be well below the surface of the magnet; otherwise, the magnet will impact the studs.

Al-ko International and Dexter are Australia's significant suppliers of caravan parts to the OEM RV markets.

• Landcruiser PCD 140mm – 6 x 1/2 UNF studs & Nuts (Genuine Al-ko)
• Landcruiser PCD 150mm – 5 x 9/16 UNF Studs & Nuts (Genuine Al-ko)
• Dexter 6 Stud Landcruiser PCD 140mm – 6 x 1/2 UNF studs & Nuts (Genuine)
• 6 Stud Landcruiser PCD 140mm – 6 x 1/2 UNF studs & Nuts (Aftermarket)  Dexter
• 5 Stud Landcruiser - 5 x 9/16 UNF Studs & Nuts (Aftermarket)  Dexter

Suit Al-ko Bearings (not included)

• Inner ID 50mm, OD 89.96mm – HR30210
• Outer ID 31.75mm, OD 61.95mm – 15123/15245
• Seal ID 60.3mm, OD 89.96mm – 64607
• Dust Cap OD 63mm – DC2

Suit Dexter Bearings (not included)

• Inner Bearing - 25580/20
• Outer Bearing - 15123/245
• Seal - 33940
• Dust Cap OD 63mm - DC2 / CM498

Other 12" Drums

• The One-piece drum is identical in bearing configuration to the Al-ko 2 pcs x 12-inch drum.
• Cruisemaster 2t Drum incl Bearing Kit.
• 3t x 2pc Electric Brake Drum Al-ko

We prefer to use metal seals on these brake drums. Other caravan spare parts are rubber seals and marine seals.

Please note: Wheels nuts not supplied.
