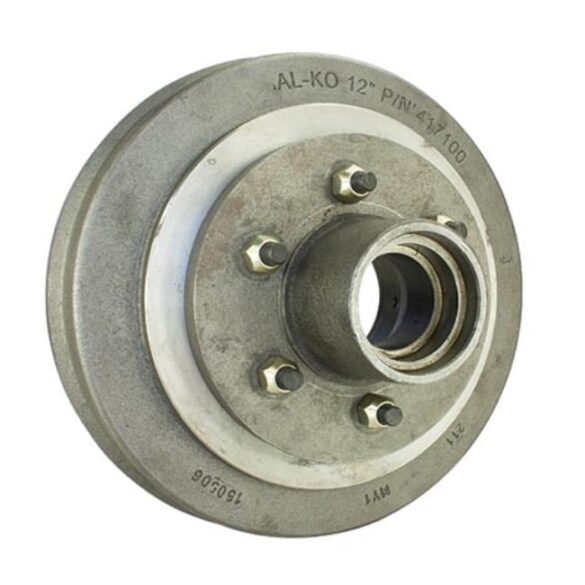

3t electric brake drum suit 12-inch electric brakes by Al-ko

3t electric brake drum, two-piece hub drum to suit trailer and caravan axles with 3t profiles made by Al-ko. Two-piece hub drums must be assembled to form one piece. One inner hub and one outer brake hub comprise the two pieces.

• Landcruiser PCD 140mm – 6 x 1/2 UNF Studs Nuts
• Landcruiser PCD 150nn – 5 x 9/16 UNF Studs Nuts

Suit Bearings

• Inner ID 50mm, OD 89.96mm – HR30210
• Outer ID 38.10mm, OD 66.06mm – 29749
• ID 60.3mm, OD 89.96mm – 64607
• Dust Cap OD 76mm – DC3

Suits Al-ko three-tonne axles only

Your bearings tell you if they need replacement during your inspection process. If you see carbon black in the grease, you need to replace your bearings, seal and dust cap.

If you do not see carbon black, your bearings are suitable and may need repacking if the grease looks hardened.

Carbon black is a sign that the casting of your roller bearings and journals has begun the wearing process. These bearings will not be far away from total collapse.

Another thing to look out for is your dust cap. Dust caps are a compression fit. If used repeatability, the cap loses its compression and will fall off on the highway.

Note: Does not include wheel nuts
