4 Stud Galvanised Unbraked Trailer Hub
$51.00 – $96.14
Shipping

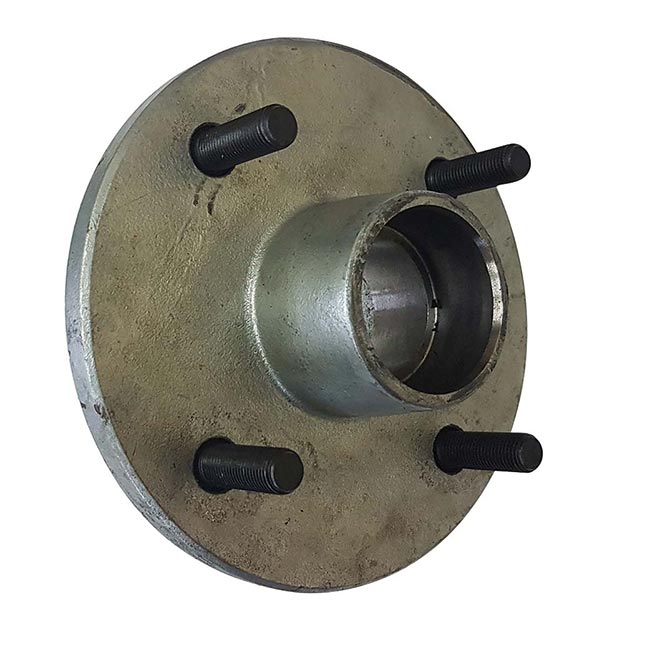

4 Stud Galvanised Lazy Hub suit Holden and Ford Bearings
Four stud galvanised lazy hubs are used on trailers under 750 kg and as a rear axle on a tandem trailer or caravan setups under 2000 kg.
Couplemate supports Australian workers and their families who produce products made in Australia.
Please note: Trailer parts such as hubs, drums and disc rotors do not fit motor vehicles.
Purchase Couplemate non-galvanised four stud unbraked hubs here.
Suit axles with Standard bearings with a max rating of 1000kg
- Inner bearing ID 31.75mm, OD 59.10mm
- Outer bearing ID 19.05mm, OD 45.20mm
- Seal ID 37.5mm, OD 59.10mm
- Dust Cap 45.20mm
Suit axles with Ford bearings max rating are 1450kg
- Inner bearing ID 35.00mm, OD 59.10mm
- Outer bearing ID 22.00mm, OD 45.20mm
- Seal ID 43.9mm, OD 59.10mm
- Dust Cap 45.20mm
Unbraked hubs are supplied with the following PCD.
| Gemini/Honda | PCD 100mm | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 150mm | Outer Boss 53.0mm | Rating 650kg |
| Lancer | PCD 100mm | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 150mm | Outer Boss 52.5mm | Rating 650kg |
| Barina | PCD 100mm | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 150mm | Outer Boss 52.5mm | Rating 650kg |
| Mini | PCD 100mm | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 150mm | Outer Boss 60.9mm | Rating 1000kg |
| Mazda | PCD 110mm | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 150mm | Outer Boss 60.9mm | Rating 1000kg |
| Datsun | PCD 4.5 inch | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 150mm | Outer Boss 60.9mm | Rating 1000kg |
| Pulsar | PCD 4.5 inch | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 150mm | Outer Boss 60.9mm | Rating 1000kg |
| Corolla | PCD 4.5 inch | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 150mm | Outer Boss 60.9mm | Rating 1000kg |
| Cortina | PCD 4.25 inch | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 150mm | Outer Boss 60.9mm | Rating 1000kg |
| Subaru | PCD 140mm | Stud Size 7/16 inch | Stud 1.25 TPI | Hub Dia 190mm | Outer Boss 60.9mm | Rating 1000kg |
What is the best trailer bearing to use?
We recommend Japanese bearings for high-speed highway use and longevity of your bearings.
Check your bearings yearly for water ingress or black carbon deposit in your grease.
Carbon black indicates bearing wear, so they will need replacing. The carbon black comes from wear on the casing of the bearings.
A quick way to check wheel bearings is to jack up the wheel and grab the wheel top and bottom. Please give it a good shake from front to back.
At Couplemate, we machine our four stud galvanised lazy Hubs at our Wynnum facility in Queensland. Landrover, Range Rover, and metric Landcruiser studs variations require 48-hour notice until we supply these for your axle build.
Please note: Wheel nuts are not included.
4 Stud Galvanised Unbraked Trailer Hub
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Stud Pattern | Barina – 4 x 7/16 Studs, Lancer – 4 X 7/16 Studs, Cortina (4 x 107.95mm), Gemini – 4 x 7/16 UNF Studs, Honda – 4 x 7/16 UNF Studs, Pulsar – 4 x 7/16 UNF Studs, Toyota Corolla – 4 x 7/16 Studs, Datsun – 4 x 7/16 UNF Studs, Mini – 4 x 7/16 UNF Studs, Mazda – 4 x 7/16 UNF Studs, Subaru – 4 x 7/16 UNF Studs |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
