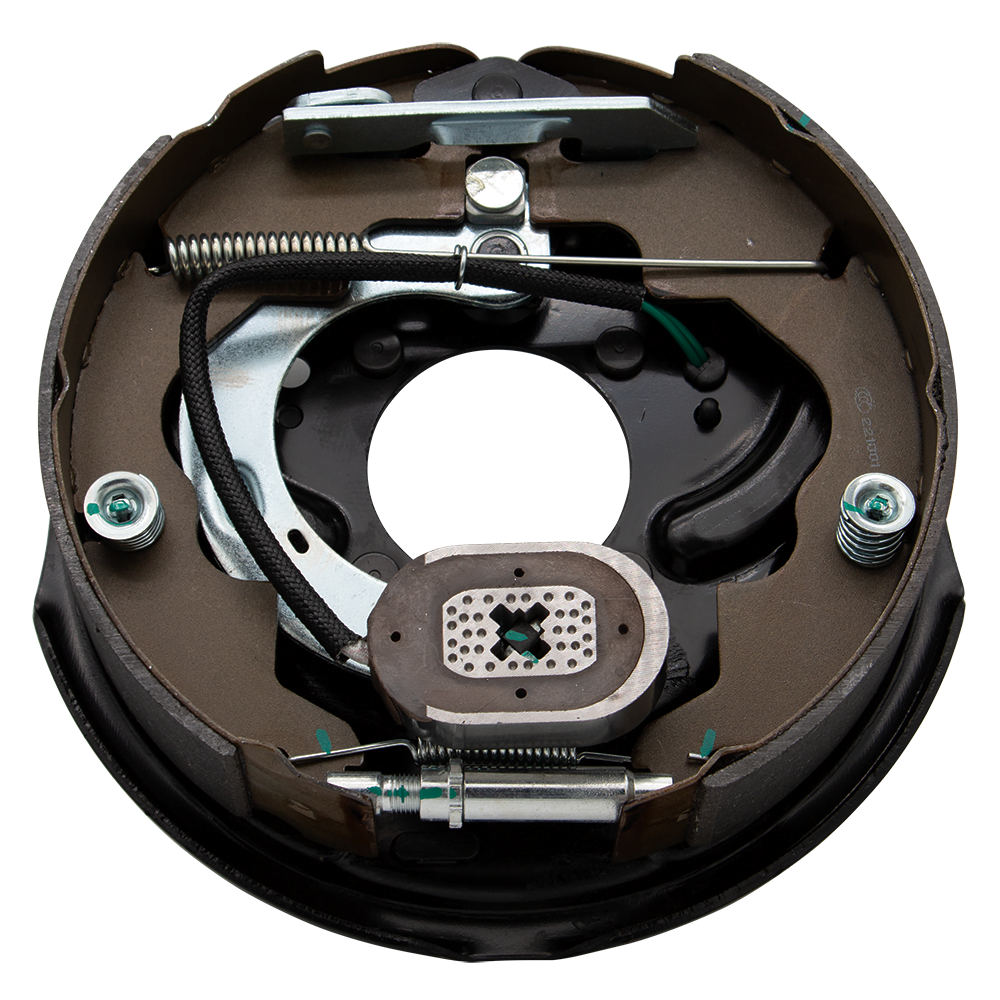

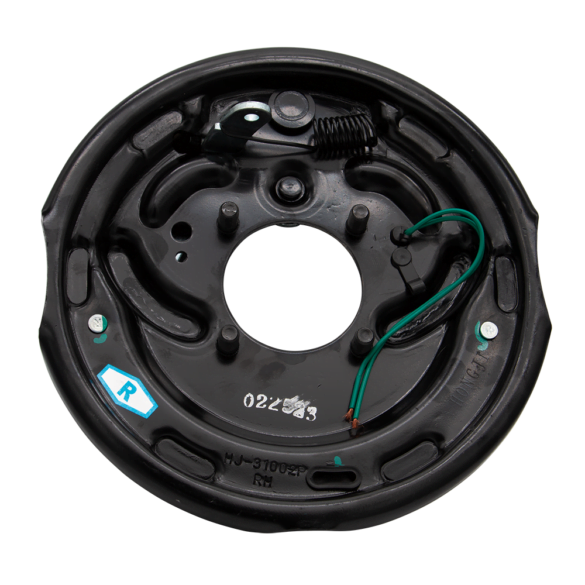

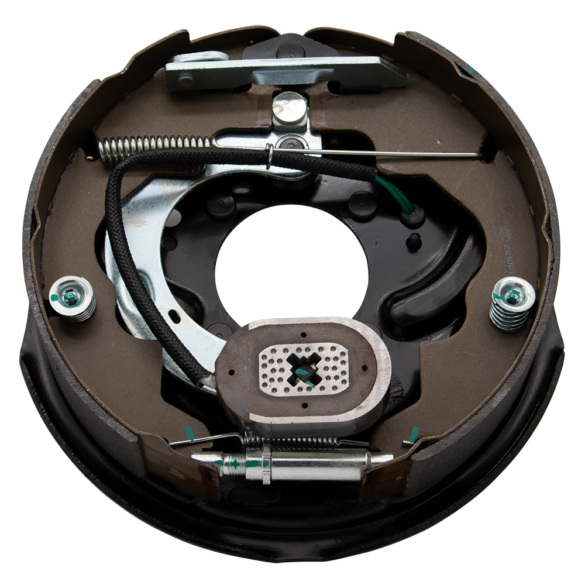

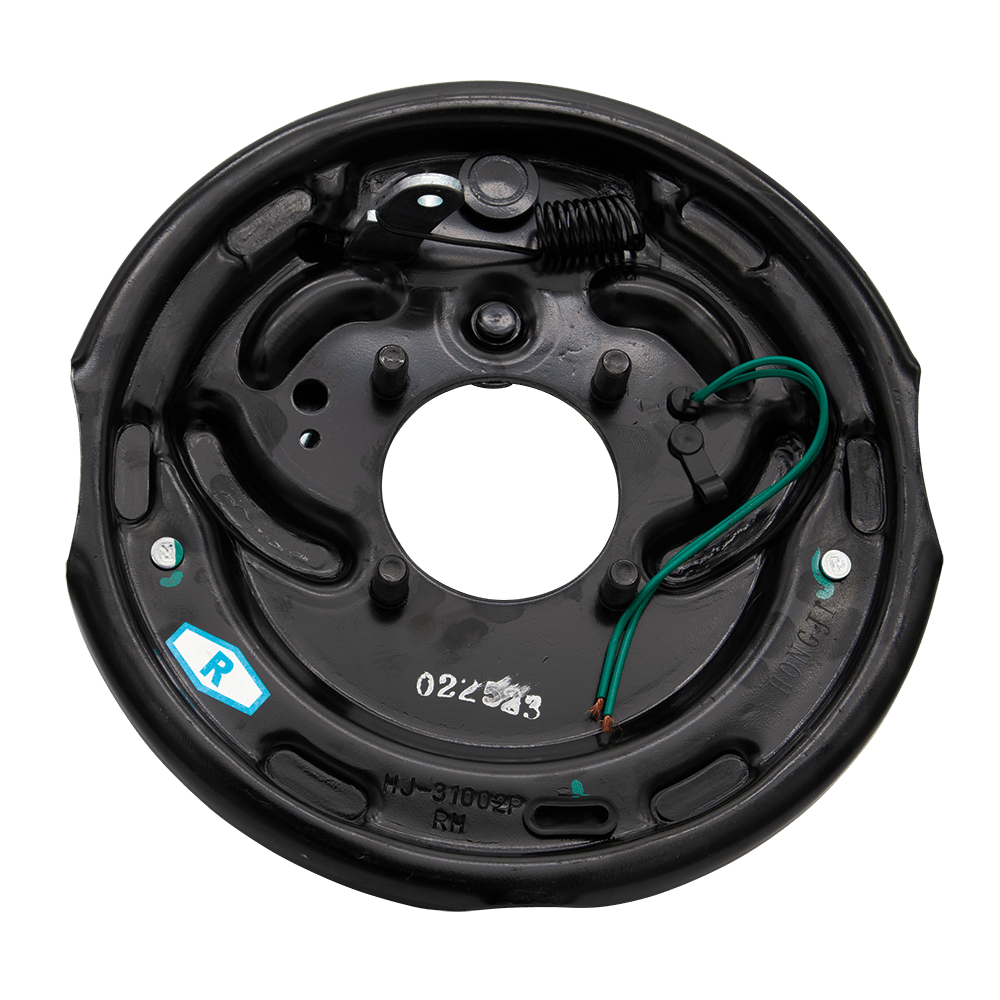

10-inch Electric Backing Plate Brake Kit

(1 customer review)

$88.50$164.86 inc GST



10-inch Premium Electric Drum Brake Assembly incl Park

10-inch Premium Electric Brake Assembly incl Park – Maximum rating 1600kg, Highway Magnets, Off-road Magnets and Dexter Magnets.

Complete replacement of backing plates is often a better option than replacing worn components.

You may be unaware of other parts in your backing plate that are near the end of life. Replacing an entire backing plate is a relatively easy procedure.

This electric backing plate is used on slimline and parallel 10″ brake drums.

Couplemate also sells an extensive range of trailer and caravan spare parts for electric brake drums and backing plates.

Pre assembled electric backing plates

Magnets for these backing plates.

  • Standard Highway Magnets
  • Off-Road Magnets. (left hand and right hand)

We recommend an off-road magnet if you plan to drive over corrugated roads for any length of time.

Four types of electric backing plates

  • Standard – Horizontal Park Brake
  • Off-road – Horizontal Park Brake
  • Dexter Standard – non-genuine
  • Dexter Off-road – non-genuine (note: Off-road Magnets installed by Couplemate as required)

It might surprise you to find out that not all 10-inch electric brake backing plates are the same.  Inferior quality backing plates generate excess heat; as a result, they cause overheated bearings and grease.

News Articles

What are the features?

  • A quality 10-inch electric backing plate
  • Suit highway or off-road 1450kg or 1600kg caravans
  • Long haul braking.
  • The right side is the driver’s side.
  • Install the electric park brake lever to the top.

The driver side is the right-hand side. Parking brake levers installed on the bottom will be permanently engaged brakes in a forward motion.

electric backing plate

Electric brake shoes are not self-aligning.

When installing new brake shoes, adjust the brake shoes until they close and the wheel is locked to prevent turning.

The factory setting is 13 turns from fully closed, but you may need more or less when replacing new shoes. Use a 4mm trailer cable on the parking brake.

Do not wire electric brakes across the axle. Rundown each chassis rail separately to reduce voltage losses.

If existing wire runs across the axle, install another pair of cables or install a larger cable to counter voltage loss.

Why can’t I run the electric cable across my axle?

Click this link to check the correct cable size for your installation

  • Rundown each chassis rail = 6mtr @ 6.4 Amps per pair of magnets = 5.62mm cable size
  • Run down the chassis trailer (inside) = 6 meter + 2 meter (8mtr) @ 6.4 Amps per pair of magnets = 7.5mm cable size

To escape voltage drop, run your cabling down the chassis rail. How electric drum magnets can become electrically ineffective

Cable sizes can be confusing because there are two standards used.

  • Electric Cable is 6mm per square inch of copper.
  • The Automotive Cable size is 10mm per circumference.

So we careful not to purchase undersized cable else you will suffer voltage drop. Most brake controllers have proportional control. As a result, NO voltage is applied to the brakes.

Your caravan must be in motion for your electric brake controller to work.

Apply a voltage to your brakes by pulling the pin on your breakaway kit.

You are also testing the contacts within the housing in this exercise. Pull the pin on your breakaway kit, and your electric brakes activate. It will be impossible to spin your wheel when it is off the ground if your brakes are ON and adjusted correctly. It should also be impossible to move your caravan forward without your wheels skidding.

This product has an extensive range of parts and accessories available. If your brakes are pretty old, consider replacing the entire backing plates. Backing plates are straightforward to uninstall.

Purchase a wide range of replacement parts from our retail store

Further, the shoes on electric brakes are not self-centring.

  • The parking brake facing at noon ensures the shoes are parallel with two outcrops on the backing plate located at 3 and 9 o’clock.
  • Tap the shoes into position until they are perfect.

Finally, use 4 x 7/16″ UNF nuts to bolt the backing plate to the weld ring.

10-inch Electric Backing Plate Brake Kit

Couplemate Trailer Parts sells only the best quality 10-inch Electric Backing Plate Brake Kit and caravan spare parts throughout Australia.

Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.

We also ship products to New Zealand via Australia Post Air Express.
