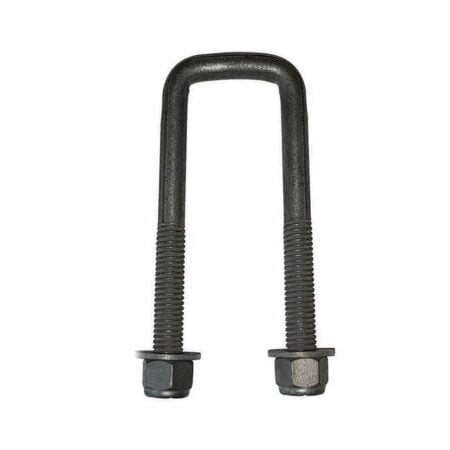

40mm Square Galvanised U-Bolt – 125mm Long, incl Gal Nylock, and Gal Washers
40mm x 125mm Square Galvanised u-bolt by Couplemate are supplied bulk with nuts and washers on the threads in boxes of 50.
Rolled threads with gal flat washer and gal nylock. The thread length is 60mm.
How do I calculate the correct length, measure
- Spring width plus
- Axle Pad 8mm plus
- Axle width plus
- Nyloc plus
How to Measure U-bolts (example)
It would be best to retighten u-bolts approximately 200 km after installation due to the steel’s ability to stretch a little under load.
We stress-tested these u-bolts during manufacture and batch test until destruction.
Destruction loads exceed 17,000kg for 1/2-inch galvanised U-bolts.
The max rating of 60mm Round axles is 3000kg with a u-bolt rating of 1500kg.
Vibration fatigue affects trailer U-bolts. Retightening is essential.
40mm U-Bolt Lengths
Understanding Caravan and Trailer U-Bolts
- Read why U-bolts could be the primary cause of accidents.
- Loose Axle U-Bolts cause Highway Havoc.
- This article is the catastrophic result of the incorrect tightening of the U-bolt on a truck chassis.
- How to Reduce Dangerous Caravan Vibration Fatigue
U-bolt clamp kits are listed below
Additional information
Weight | 0.5 kg |
---|---|
Dimensions | 10 × 6 × 2 cm |
U-Bolt Width | 40mm |
Bolt Diameter | 12.7mm |
Coating | Galvanised |
Fastener Type | U-Bolt |
Stud Thread | 1/2" BSW |
