Swivel Brackets

$21.30$71.20 inc GST

or 4 fortnightly payments from $5.33 with Afterpay More info

Clear
SKU: N/A Categories: ,

Description

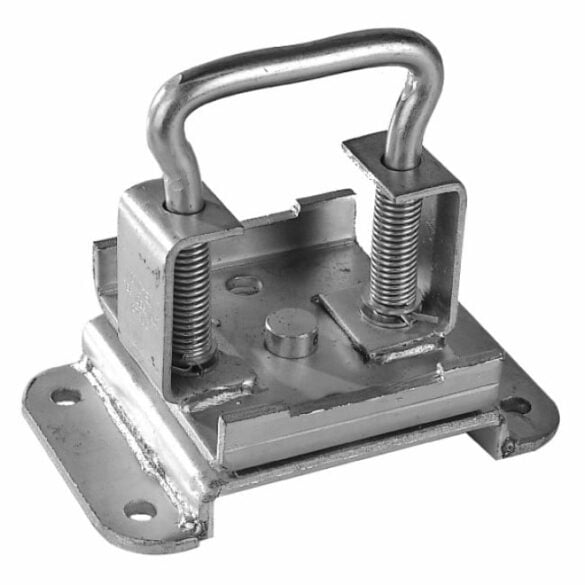

Swivel Bracket suits Jockey Wheel and Jack Stand

Swivel bracket to suit caravan and camper trailers swing-up jockey wheels or Jack Stands.

Suitable for weld-on, bolt through chassis rail or u-bolt to the trailer chassis rail.

Jack stands have for years been difficult until recently, to attach to trailer chassis rails. Australian company Manutec have developed several swivel and weld-on bracket to enable jockey wheels and jack stand attachment to trailers.

Jack Stands need a swivel when used on larger trailers. In these cases, the stands are used instead of a jockey wheel and need a secure location when not in use.

Another example of good bracketry use, is lifting a toolbox off a ute with four high lift jacks and driving the ute out from under the toolkit. The tradie then backs his ute under his camper tray and instantly becomes a camper.

An excellent example from Tough Tinnies, Lindum, QLD

Bracket Specifications48mm Swivel jockey wheel

48mm Light Duty Swivel

  • Weld in 48mm tube
  • Weight: 2.2kg

48mm Heavy Duty Swivel

  • Weld in 48mm tube
  • 2.7kg

48mm Tube U-Bolt Bracket

  • Weld in 48mm OD Jockey Wheel
  • U-Bolt Size: 2″, 3″, 4″, 5″ and 6″
  • Weight:2.6kg
  • Hole Size: 1/2″

50mm Swivel Mount

  • 50mm suits square tube
  • Static Load Capacity: 1000kg
  • Hole Size: 14mmm
  • Weight: 2.2kg
  • Suits ASSW-LN

heavy duty jack stand assw-h

60mm Swivel Mount

  • 60mm suits square tube
  • Static Load Capacity: 1000kg
  • Hole Size: 14mmm
  • Weight: 2.3kg
  • Suits ASSW-M

70mm Swivel Mount

  • 70mm suits square tube
  • Static Load Capacity: 2000kg
  • Plate Size: 220mm x 140mm
  • Weight: 4.9kg
  • Suits ASSW-H and ASSW-DL

Jack Stand  Mounting Tube Swivel LD

  • Outer Diameter (Inner Tube): 48mm – 5mm thickness.
  • Outer Diameter (Outer Tube): 62mm – 6mm thickness
  • Weight: 0.9kg
  • Static Load Capacity: 1000kg

Jack Stand Mounting Tube Swivel HD

  • Outer Diameter (Inner Tube): 60mm – 8mm thickness.
  • Outer Diameter (Outer Tube): 77mm – 6.5mm thickness
  • Weight: 1.6kg
  • Static Load Capacity: 4000kg

Weld-on 48mm Jockey Wheel U-Bolt Plate

  • Suits 48mm Jockey Wheels to be welded into position
  • Fits 2″, 3″, 4″, 5″ and 6″ Chassis rails
  • Weight: 2.6kg

Weld-on 48mm Jockey Wheel U-Bolt Heavy Duty Plate

  • Suits 48mm Jockey Wheels to be welded into position
  • Fits 2″, 3″, 4″, 5″ and 6″ Chassis rails
  • Weight: 3.2kg

Weld-on Heavy Duty Swivel Plate

  • Suit 60mm HD Outer Tube
  • Weight: 3.3kg
Couplemate Trailer Parts sells only the best quality Swivel Brackets and caravan spare parts throughout Australia.

Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.

We also ship products to New Zealand via Australia Post Air Express.

© Steve Wotherspoon September 11, 2018. Images and text may be copied, provided a link back to the copied page and the source is displayed where the content or image is located.
