Jockey Wheel Clamp kit
Jockey wheel clamp kits to suit 50mm | 75mm | 100mm | 125mm and 150mm drawbars. Clamps to suits all bolt-on jockey wheels with 48mm OD outer.
Kits are available to improve the tension between the jockey wheel and the trailer. Clamps are plated in zinc or galvanised.
The wheel clamp is located near the front of the trailer, allows the wheel to be removed, also allows the wheel height to be easily adjusted.
Jockey wheels can carry weights up to 500kg as a static load. (not moving)
Standard Clamp Kit
Comprised a 48mm ID Jockey Wheel clamp that is suitable for bolt-on or weld onto a chassis rail.
Hole centres are 140mm x 1/2″ hole.
Also fits standard and medium jack and jockey wheel stands.
Heavy Duty Clamp HDCLAMP48
Weld-on Clamp to suit Medium and Heavy Duty Range of Jockey Wheels and Stands.
Hole centres are 70mm x 1/2″ hole. Note: Not suitable for 75mm or 100mm u-bolts.

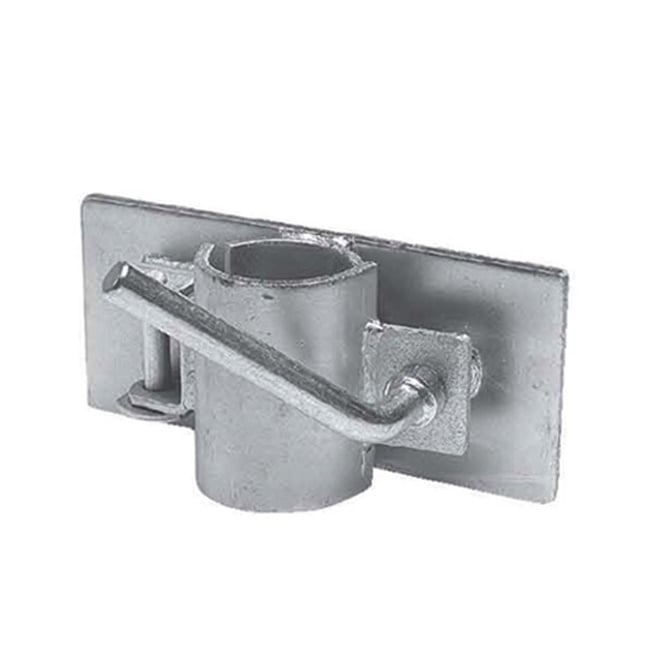

Heavy Duty Clamp HDCLAMP60
Weld on to suit 60mm tube.
Using Heavy Duty 60mm O.D. Outer Tube.
Unit Weight: 3.2kg
No Longer Available
Al-ko Swivel U bolt clamp
uBolt swivel clamp by Al-ko is a handy tool if you wish to swivel your jockey wheel. The added advantage is removing the jockey-wheel for storage when required.
Change all Al-ko and all Manutec 48mm OD Jockey Wheels into swivel jockey wheels.
Easy to install. You will require a spanner and u-bolts to suit your drawbar.
Suit drawbar sizes
- 50mm wide x 50mm high
- 50mm wide x 75mm high
- 75mm wide x 75mm high
- 50mm wide x 100mm high
- 75mm wide x 100mm high
- 100mm wide x 100mm high
Al-ko Double Clamp
The Alko double Clamp fits 100mm chassis rails. 2 x ubolts wrap around the clamp and attach into a backing plate. See 100mm ubolt clamps here.
Manutec Double Galvanised Clamp Kit
- Double Clamp Galv. To suit std 48mm tube BOLT-ON KIT.
- Double Clamp gives Extra Support on Standard and Medium Jockey Wheels and Stands.
- Ideal for use on the Extra Height Jockey Wheels using standard 48mm O.D. Outer Tube.
- Bolt-on Kit to suit Draw Bar 50mm x 100mm / 125mm – 150mm
- Spare Jockey Wheel Clamp Bolt
U bolts cannot be used to install this clamp. However, a good read on u-bolt and how to prevent disaster can be read here.
Purchase other heavy-duty clamps and swivel brackets here.
Couplemate Trailer Parts sells only the best quality Jockey Wheel Clamp Kits and caravan spare parts throughout Australia.
Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.
We also ship products to New Zealand via Australia Post Air Express.
