9 inch Brake Drum incl Studs

$86.63$130.58 inc GST

SKU: N/A Categories: ,

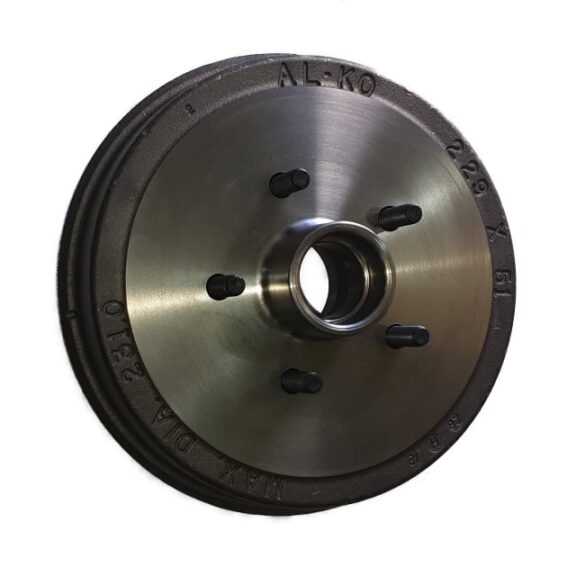

9 inch Brake Drum incl Studs, Nuts suits Landcruiser, Nissan, Ford, Holden

9 inch brake drum suit hydraulic or mechanical backing plates. Measure inside your drum to get the correct measurement.

Measure inside your drum to get the correct measurement. Some older drums have a larger internal width of 1 3/4 inch and are obsolete.

Specifications Include Studs

  • Holden HT – PCD 4.25 inch – 5 x 7/16 UNF Studs.
  • Holden HQ – PCD 4.5 inch – 5 x 7/16 UNF Studs.
  • Commodore – PCD 120mm – UNF 5 x 7/16 Studs.
  • Ford Brakes – PCD 4.5 inch – 5 x 1/2 UNF Studs.
  • Landcruiser PCD 140mm – 6 x 1/2 UNF Studs.
  • Landcruiser PCD 150mm – 5 x 9/16 UNF Studs.
  • Nissan Navara PCD 114mm – 5 x 1/2″ UNF Studs

Some 9 inch drums have been imported from the EU and some drums are no longer available. Please measure your drum and compare below. If the size does not match give us a call and we may be able to locate your drum.

Wesco is one of the drums that are not available however from the manufacturer. If you have one of these drums we may be able to locate one for you. Couplemate has a supply of these 9″ drums form this link.

Note: Nuts not included.

Suits LM Holden or Ford Slimline Bearings


9″ Drum Brake Kit Measurements (nominal)

  • Outside Diameter – 250mm
  • Inside Diameter (Shoe Faces) – 227mm
  • Shoe width – 45mm
  • Inner Boss Height – 45mm
  • Inner Boss Diameter – 75mm
  • Outer Boss Height – 55mm
  • Outer Boss Diameter – 60mm

Further information on Al-ko 9″ braking systems can be found here.

Couplemate Trailer Parts sells only the best quality 9 inch Brake Drum incl Studs and caravan spare parts throughout Australia.

Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.

We also ship products to New Zealand via Australia Post Air Express.
