Spare Wheel Slimline Hub Rescue Kit

$112.00$230.00

Brand: Couplemate™Australian Made and Owned.

Uses quality Japanese bearings from NSK.

Couplemate accepts PayPal, Visa and Mastercard.

Trailer Rescue Spare Wheel Kit – Slimline Bearings

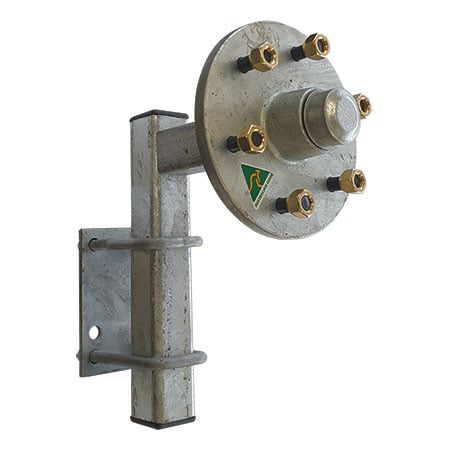

The Couplemate™ CM095-SL series is a Trailer Rescue Spare Wheel kit that is Galvanised to suit both caravans and boat trailers.

All spare parts are heavy-duty, galvanised, and suit chassis rails 50mm wide.Australian Made and Owned.

Product Specifications

Galvanised RHS Length: 400mm

Available Stud Patterns:

  • 6 x 139.70mm | 6 Stud Landcruiser
  • 5 x 150mm | 5 Stud Landcruiser
  • 5 x 114.30mm | 5 Stud Ford
  • 5 x 107.95mm | Holden HT
  • 5 Stud Dexter USA 1.6t

Please note: If your chassis rail is wider than 50mm, let us know so we can include longer U-bolts.

Installation Guidelines

There is a 150mm adjustment on the galvanised spare wheel carrier bracket, so you can get a stylish, neat finish. Just slide the box section inside the bracket to adjust to the trailer wheel’s correct height. The gap between the boat and the wheel is 15mm, and more room to open the gap if required.

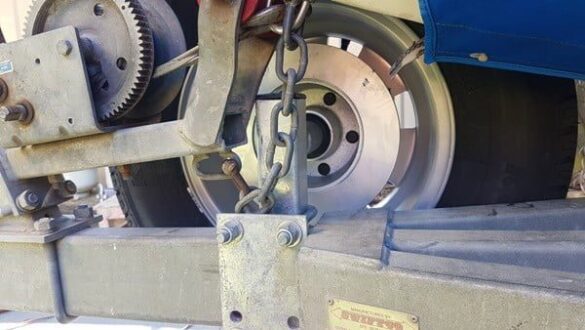

The back view shows how compact the spare wheel holder can fit if you make the correct adjustments.

Included in this Kit:

  • 2 x Galvanised U-bolts (incl. hardware)
  • 1 x 50mm x 50mm Galvanised RHS (vertical holder)
  • 1 x backing plate
  • 1 x 45mm Square Galvanised Axle Assembly
  • 1 x Slimline/Ford bearing kit

Slimline/Ford Bearing Combinations

  • Inner ID 35.00mm, OD 59.10mm
  • Outer ID 22.0mm, OD 45.20mm
  • Bearing Seal ID 37.5mm, OD 59.10mm
  • Grease Cap 45.20mm (CM497)

Manufacturing History

We have a big range of Australian-made high-speed spare wheel carriers and trailer rescue kits for caravans and boat trailers. Our Brisbane factory machines the hub faces, and inserts stud the castings in our Brisbane factory.

Made in Australia is more than just a statement. Australian-Made means that the products you purchase from us are by workers who have completed technical training to produce goods suitable for the worst Australian conditions.

Australian-made accreditation, January 2016.

Couplemate also has the following variations available:

Additional information

Weight8 kg
Dimensions30 × 15 × 10 cm
Stud Pattern

, , , ,
