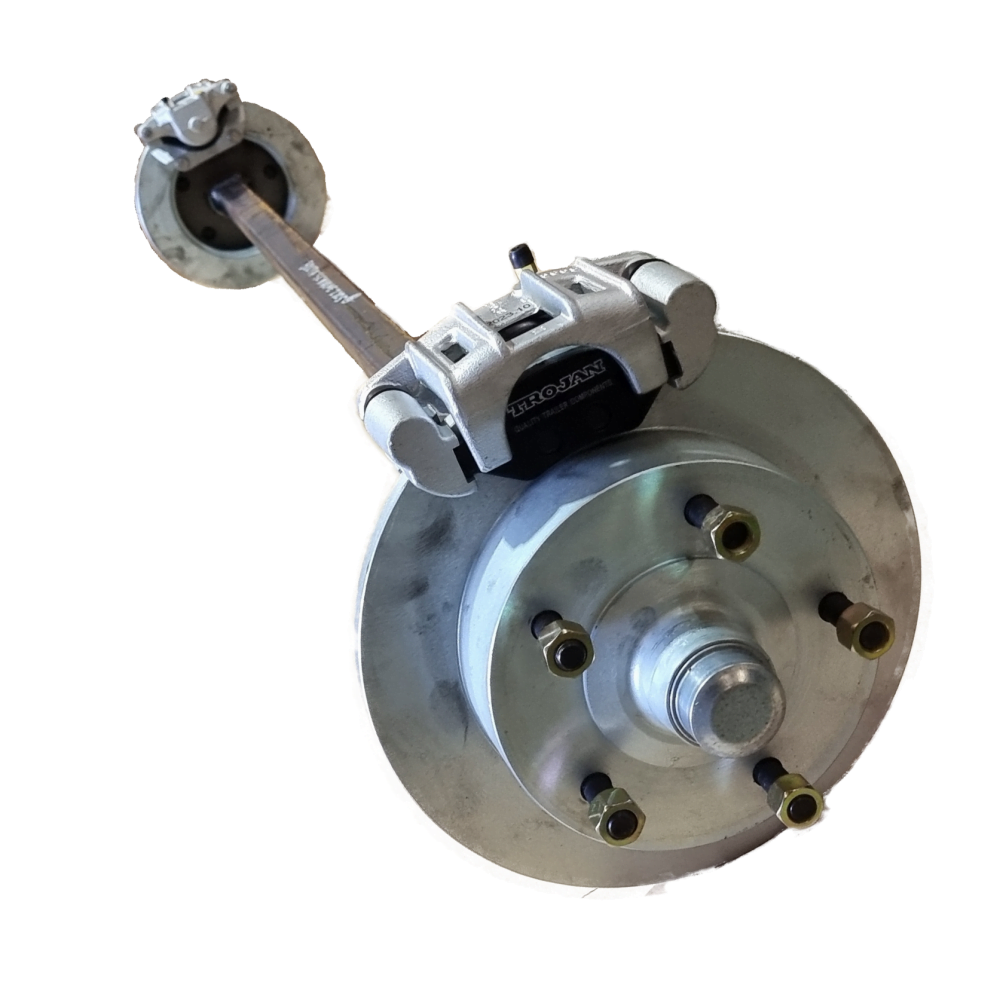

45mm Square Hydraulic Disc Axle – 6S Landcruiser
$1,485.00
✓ Axle beam made from 45mm x 45mm solid square steel.
✓ 12-inch discs suit 6 Stud Landcruiser Wheels (6 x 139.7mm)
✓ Uses Ford Slimline (SL) Japanese NSK bearings
N.B. “In Stock” refers to 45mm axle material. Axles are made-to-order per your requirements!
Shipping
45mm Solid Square Steel Axle | 6 Stud Landcruiser Hydraulic Disc Brakes
Couplemate™ axles are made custom to suit your caravan, camper, or any type of trailer.
In particular, we pride ourselves on only manufacturing axles that are built to last. No cheap parts, and no half-baked labour!
What’s included with the hydraulic disc brake axle?
Large features of your axle include:
- Australian BlueScope Steel 45mm Square Axle
- Disc Brake Hydraulic Calipers (Australian-style)
- 12-inch Disc Rotors (6 Stud Landcruiser)
- Japanese LM68149 & LM12749 bearings
You’ll also receive all the nuts, bolts, washers, mount plates, and standard small parts needed.
What is the axle length? Is there a standard length?
There’s no “standard” beam length for trailer and caravan axles.
Your ideal length will depend on your chassis, your tyres, your ATM… just to name a few!
If you’ve never replaced an axle:

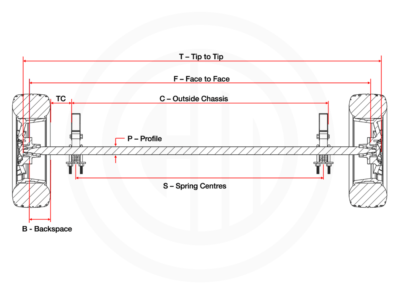

Take a look at our digital axle drawing (Couplemate™ Digital Axle) which covers the main measurements.
Depending on your goals, you might not need all the measurements. For example, our team will only need:
- “T” (Tip-to-Tip): Simple axle swaps with no changes.
- “F” (Face-to-Face): Axle swaps with just a bearing profile change.
- “B” (Backspace), “C” (Outside Chassis), and “TC” (Tyre clearance): Axle swaps with just a tyre change.
If you’re looking to change multiple parts of your axle, or you’re looking to build a trailer from the ground-up, it’s best to provide all the measurements you can.
Otherwise, a quick 5-minute call with our team will ensure you’ve got all the information you need!
Call Now: +61 7 3348 3822
If it’s not your first rodeo:
Feel free to place an order online, over the phone, or via email! Our team will reach out to confirm your axle ASAP.
If you’re a manufacturer, don’t forget you can log-in to our B2B platform.
Alternative Axle Assemblies
- 40mm Square Hydraulic Drum Brake Kit – 1000kg
- 40mm Square Mechanical Drum Brake Kit – 1000kg
- Round Mechanical Disc Braked 45mm Axle
- 45mm Round Hydraulic Drum Brake Kit – 1450kg
- 45mm Square Ford Hydraulic Disc Brake Axle
- Round Mechanical Drum Brake Kit – 1450kg
- 45mm Square HT Hydraulic Disc Brake Axle
- 45mm Square 5 Stud Landcruiser Hydraulic Disc Brake Axle
Additional information
| Weight | 60 kg |
|---|---|
| Dimensions | 249 × 50 × 50 cm |
| Beam Size | 45mm Square |
| Bearing Profile | Slimline (SL) |
| Brake Type | Hydraulic |
| Brake Style | Australian |
| Grease Seal Type | Marine |
| Hub Size | 12-inch |
| Materials | Australian BlueScope Steel (K1045) |
| NSK Bearing # | 12749/10, 68149/10 |
| Bolt Pattern (PCD) | |
| Stud Thread | 1/2" UNF – 490300-ALKO |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
