Standard Tandem Springs
Standard tandem spring replacements are among the most popular caravan springs caravan manufacturers choose.
Jayco and other caravan manufacturers use this type of spring. The price is for one side only, comprising two springs and a spring kit.

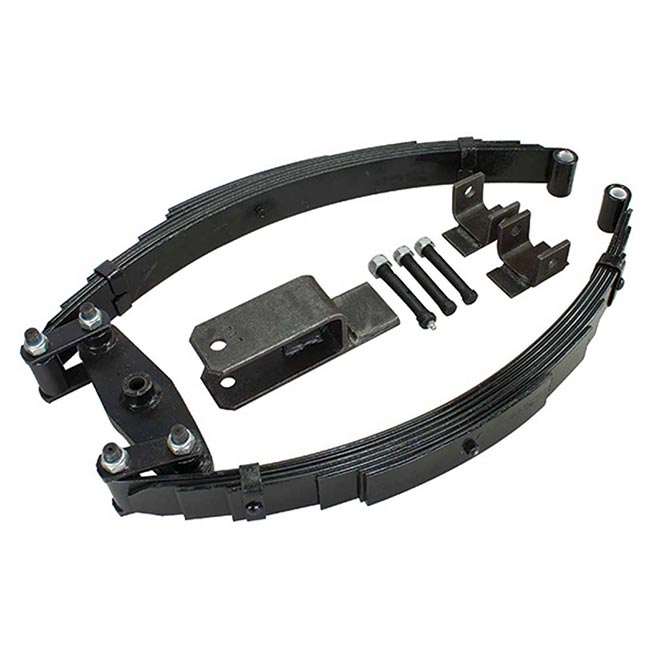

The shackle spring kit contains
- Rocker arm x 1
- Centre hanger x 1
- Shackle plates and shackle bolts x 2
- Front and rear hangers x 2
- 18mm Center Bolt x 1
Caravan tandem springs are 60mm wide and one of the best investments into your suspension system you can make.
How so? 60mm springs twist less and more robust to withstand better shock-loading events like potholes, railway lines, cattle grids, and corrugations.
If you consider 45mm wide springs and a cheaper suspension system, you must contemplate whether your trailer will be susceptible to some harsh conditions or run-around town trailers.
OK, so right now, you have a grasp on spending a few extra dollars as a better investment for your family adventures.
Purchase single replacement springs below
Replacement Spring Sizes and ratings
- 5 Leaf – 2000kg
- 6 Leaf – 3000kg
- 7 Leaf – 3400kg
Caravans use this spring for its durability at high speed. This spring can withstand twisting tension impacted during shock load events like high-speed potholes.
- 60mm x 6mm
- 700mm eye to eye
- 120mm free camber
- 386mm eye-to-centre bolt
- 16mm Shackle pin diameter
- Spring bushes 16mm x 22mm x 60mm
Tack weld it to the hanger plate to prevent the shackle bolt from spinning.
Tip: Springs fit 14″ wheels. If your wheel is 15″ or 16″, then turn one spring around. These springs have a spring offset of 50mm.
Tandem springs can be challenging to fit correctly. This article may help you with your setup or adjust your existing configuration.
