45mm Slipper Hanger Kit Single Axle

45mm Slipper Hanger Kit suited to single axle trailers up to 1000kg.

Use only on 6mm springs with three leaf tails. (765mm eye to tail)

Important the hangers are installed 700mm from the centre of the eye to the centre of the rear hanger.

Hangers installed over 700mm centres will cause the rear leaf to jump out under shock loading conditions like deep potholes in the road.

Hangers installed closer than 700mm centres will cause the spring to lock in the rear hanger and break.

• The bolts supplied are 1/2 inch.
• Most 6mm springs have 1/2 inch ID bushes with 22mm OD.

Wrong hanger location cause Spring Problems

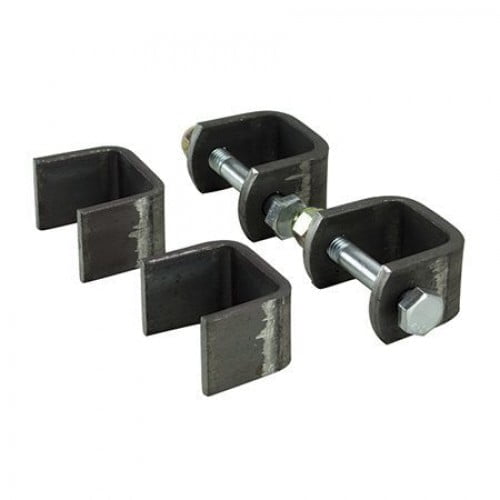

45mm Slipper Kit comprises

• Two Bolts + Nylocks
• 2 x Rear keepers
• 2 x Front Hangers

Other available hanger kits

• 45mm Slipper Single Axle
• 45mm slipper Tandem
• 60mm Slipper Single Axle
• 60mm Slipper Tandem Axle
• 45mm Eye to Eye - Single
• 45mm Eye-to-Eye - Tandem
• 60mm Eye-to-Eye - Single
• 60mm Eye-to-Eye - Tandem
