6.0t Combination Pintle Hook (33.6kN)

$222.00

541 in stock

✓ Adaptable Towing: 6.0t Ring, 3.5t Ball
✓ Suits Heavy-Duty Truck Towing Application
✓ Forged from Strong Carbon Steel

Designed and manufactured by Couplemate™ Australia.

541 in stock

Req. Tow Bar Adaptor

6.0t Pintle Tow Bar Adaptor

What makes the CM510 a great product?

✓ Enhanced towing strength and reliability.Australian Made and Owned.
Officially rated for 6.0t ATM heavy-duty applications.
Boosts convenience with 8-mount holes and invertibility.

Designed and manufactured by Couplemate™ Australia.

Couplemate accepts PayPal, Visa and Mastercard.

Combination Pintle Hook | 6.0t Ring & 3.5t Ball Couplings

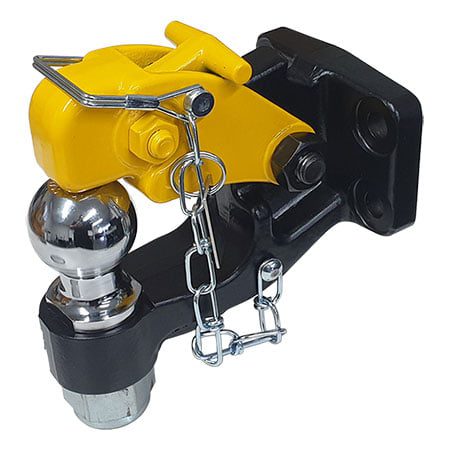

The Couplemate™ CM500 Combination Pintle Hook is engineered to provide convenience and consistently safe towing. Forged from high-quality steel, this bolt-on Combination Pintle Hook is rated for towing up to 6000kg. The Genuine Couplemate™ product has a yellow horn, and is the preferred choice in the Australian agricultural, logistics and mining industries.

An example of a rating is a 10-t trailer towed by a 10-truck; the D-value is 49kn. (Refer to the table below for the calculation of your towing combination.)

Another example is a 20-ton truck that can tow a 6-ton trailer; the D-Value is 45kN. The table below shows variable towing capacities.

Combination Pintle Hooks eliminate the need to regularly switch your tow vehicle hitch. With one product, you can tow trailers with a 50mm ball coupling and a ring coupling.

For smoother towing with a ring coupling, Couplemate™ recommends investing in a Tow Ball Protector.

N.B. If you intend on mainly towing with ring couplings, Couplemate™ recommends the CM532 Premium Combination Pintle Hook.

CM500 Pintle Specifications

  • D-Value: 33.6kN
  • CRN: 38562
  • Tow Ball Torque: 1067Nm
  • Hole Centres: 45mm x 85mm
  • Coating: Power-Coated
  • Materials:
    • Hitch Body: Forged SAE1045
    • Tow Ball: HT4140 Alloy
    • Chain & Clip: SAE1008, SS400

The CM500 is suitable for towing up to:

  • 3500kg ATM on 50mm ball couplings
  • 6000kg ATM with 75mm ring couplings.

CM500 Product Contents

When you buy the Couplemate™ Premium Combination Pintle Hook, you will receive:

  • 1 x CM500 Combination Pintle Hook
  • 1 x Pintle Safety Chain, Clip and Pin
  • 4 x Grade 8 1/2″ Bolts
  • 4 x Spring Washers and Nuts

Spare parts for this product include the high tensile bolts and safety chain and clip.

Important Information

D-Values for Trailer & Truck Couplings

D-Values assign ratings to tow couplings. These values represent the maximum force that can be safely exerted on the component along a prescribed axis.

For example, 50mm ball couplings have a D-Value that is determined by:

  • Maximum towing vehicle mass of 5000kg.
  • Maximum trailer mass of 3500kg.

So, why are D-values important? When products are assigned a D-value, the developing engineers rigorously test the component to ensure its safety. You can use the configurator below to check that the Premium Combination Pintle Hook is suitable for your application.

You will note that some resellers advise products are ADR compliant. To be ADR compliant and tested, the components requires a D-Value after testing and the results submitted to Department of Transport, Canberra. A CRN is then issued, and this certification proves compliance.

Additional information

Weight5 kg
Dimensions20 × 18 × 15 cm
