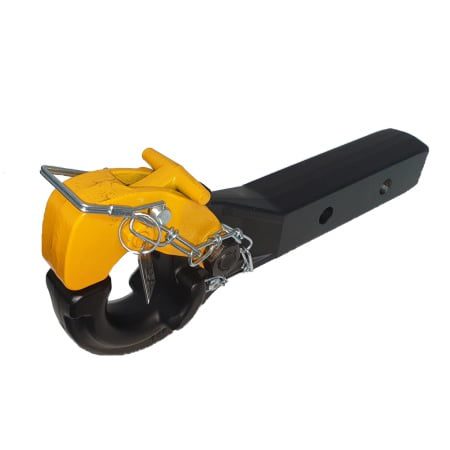

6000kg Pintle Hook Receiver Hitch
$250.00
176 in stock
What are the Key Benefits of a 6000kg Pintle Hook Receiver Hitch?
✓ ADR Compliant for consistently safe towing.
✓ Easy installation by inserting into 50mm tow bar.
✓ Tows up to 6000kg ATM trailers with ease (36.4kN).
Designed and manufactured by Couplemate™.
176 in stock
6000kg Pintle Hook Receiver Hitch | ADR Compliant | Genuine Couplemate™
The Couplemate™ 6000kg Pintle Hook Receiver Hitch is engineered to provide safe towing and convenience.
Forged from high-quality materials, the hitch offers a robust design for ultimate towing safety. Investing in high-quality components is important for all vehicles on our roads, as safe and adequately rated components help us protect all Australians on the road.
Couplemate™ only supplies high-quality and safe components. The CM535 Pintle Hook Receiver Hitch has been rigorously tested to meet strict ADR 62/02 regulations, meaning it will provide you and your fleet with a safe tow — every single time.
Product Specifications
- Materials: Forged SAE1045
- Coating: Powder Coated
- Suitable Tow Bars: 50mm x 50mm (2″)
- D-Value: 36.4kN
- Receiver Length: 200mm
The CM535 is suitable for towing trailers up to 6000kg ATM.
When you purchase genuine Couplemate™ towing components, you will be supplied with an CM535 Engineering Specification Sheet. This is also available on your online account.
Product Contents
When you buy the Couplemate™ 6000kg Pintle Hook Receiver Hitch, you will receive:
- 1 x Receiver Hitch Body
- 1 x Pintle Safety Chain, Pin & Clip
N.B. The component is supplied without a 5/8″ hitch pin. Class V pins can be purchased separately here.
Alternative Genuine Couplemate™ Truck Pintle Hooks are available here and are rated at up to a 16,500kg capacity.
Important Information
D-Values for Trailer Couplings
D-Values assign ratings to tow couplings. These values represent the maximum force that can be safely exerted on the component along a prescribed axis.
For example, 50mm ball couplings have a D-Value that is determined by:
- Maximum towing vehicle mass of 5000kg.
- Maximum trailer mass of 3500kg.
So, why are D-Values important?
Couplemate designs products to a D-Value. The D-Value means that the component has been rigorously tested by the developing Engineers to ensure a safe product.
To check that the 6000kg Pintle Hook Receiver Hitch suits your application, you can use the configurator below.
Additional information
Weight | 7 kg |
---|---|
Dimensions | 40 × 20 × 6 cm |
SKU | CM535 |
Brand | Couplemate |
Weight Rating | Up to 6000kg ATM |
D-Value | 36.4kN |
Materials | SAE1045 |
Warranty | 12-Month Manufacturer's Warranty |
Hitch Pin Size | 5/8" (Sold Separately) |
ADR Compliance | ADR 62/02 Compliant |
Suits Tow Bar Sizes | 50mm (2") |
