Axles - Trailer and Caravan

  • 2t Dexter Spindle

    Tie-Down or Dexter Torsion Axle Spindle

    $223.30$237.98
    Select options
  • 2t Hydraulic Disc Braked

    3t Hydraulic Disc Braked Axle

    $1,837.09$1,842.98
    Select options
  • 50mm Square Overlay Axle

    50mm Square Overlay Axle Parallel

    $279.64
    Select options
  • 50mm Square Mechanical Disc

    50mm Square Mechanical Disc Brake

    $714.95$1,429.00
    Select options
  • 45mm Square Mechanical Disc

    45mm Square Mechanical Disc Brake

    $771.50$1,169.50
    Select options
  • 50mm Square Galvanised Lazy

    50mm Square Galvanised Lazy Axle

    $684.00$1,291.00
    Select options
  • 45mm Square Galvanised Lazy

    45mm Square Galvanised Unbraked Axle

    $415.73$630.00
    Select options
  • 45s galvanised axle hydraulic disc

    45mm Square Hydraulic Disc Brake Axle

    $1,048.00$1,480.50
    Select options
  • 50mm Square overlay Hydraulic

    50mm Square 2t Hydraulic Disc Brake Overlay Axle

    $1,139.16$1,140.95
    Select options
  • 50mm Square Mechanical Disc

    50mm Square Mechanical Galvanised Disc Brake Axle

    $995.97$1,404.93
    Select options
  • mechanical disc brake axle

    45mm Round Mechanical Disc Braked Axle

    $729.00$1,169.00
    Select options
  • 39mm Round Galvanised Lazy

    39mm Round Galvanised Lazy Axle

    $303.30$415.73
    Select options

Trailer Axles, Drop Axles, Overlay Axles and Independent Suspension Stubs.

All caravan and trailer axles are Australian Made

Couplemate manufacturer’s replacement axles for trailers, caravans, camper trailers and boat trailers in its Wynnum workshops.

How are Trailer Axle Kits made?

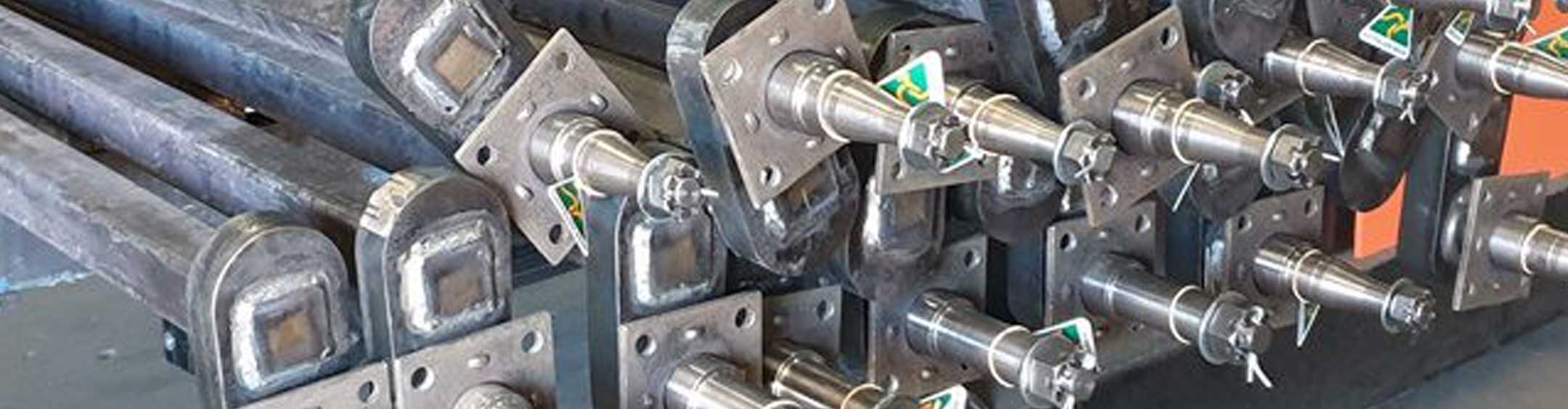

Axles are manufactured from virgin Bluescope steel and turned in our CNC Lathes.

https://youtu.be/ntHMZqYj_9Q

Our specialty is custom heavy-duty axles for independent trailer coil spring suspension and Rocker Roller trailer kits. In short, our CNC toolmakers and technicians manufacture precise square shafts for the smoothest ride.

Also, as a side note, the most popular setup for a dual axle trailer is an axle fit to suit rocker roller springs.

Firstly, the process of ordering a replacement axle starts by measuring the total axle length or face to face measurement – see measurement F below.

Convert Face to Face measurements to Tip to Tip measurements

  • S/L x 10 inch Electric Drum – add 103mm
  • S/L x 150mm Lazy – add 100mm
  • 10-inch Disk Rotor – add 98mm
  • PLL x 10 inch Electric Drum – add 122mm
  • 2T x 12 inch Electric Drum – add 172mm
  • 2T x 205mm Lazy  – add 172mm

Secondly, it is important to check your bearing combination.

The most convenient and accurate way to identify your bearing combination is to remove your hub and bearings. Thereafter, locate the number laser engraving on the bearing.

Where to identify bearing number. Look for the laser engraved number on the bearing.

Finally, it would help to calculate your P.C.D for axles requiring braked or lazy hubs.

Question: How do I send axle information to you?

Please take a photo of your axle, complete our axle order form and then send it to us via email at sales@couplemate.com.au. We will contact you with any questions and a quote.

Our team of experts will help provide advice on brake axles and braked axle upgrades.

Give our team a call on 07 3348 3822 for help.

Delivery

Couplemate ship pallets of axles and suspension kits daily. As a result, our freight rates are cost-effective.

In addition, bare axles, braked axles or entire axle and suspension kits are assembled and shipped to you in a few days from order. Furthermore, we ship nationally and provide competitive freight rates.

Ride height is designed into camper design via the use of drop axles. On the other hand, airbags are another solution to increase ride height.

Also, Caravan & Trailer Axles are 100% Australian made and produced daily, as follows:

  • Straight shafts
  • Stub Axles
  • Overlay Axles
  • Drop Axles
  • Independent Suspension stubs
  • Specialty axles
  • Disc brake axles
  • Electric braked axles
  • Unbraked axles

Caravan axles and their maximum load capacity

  • 39mm Round Axle – 750kg rating
  • 39mm Round Axle – Galvanised
  • 40mm Square Axle – 1000kg rating
  • 40mm Square Galvanised Axle – 1000kg
  • Round Axle 45mm – 1600kg
  • 45mm Round Galvanised Axle – 1600kg
  • Square Axle 45mm – 1600kg
  • 45mm Square Parallel – 1600kg
  • 45mm Galvanised Square Axle – 1600kg
  • 50mm Square Axle – 2500kg
  • 50mm Galvanised Square Axle – 2250kg
  • 60mm Galvanised Round Axle – 3000kg

Finally, stocks of galvanised axle steel allow us to manufacture axles quickly.
