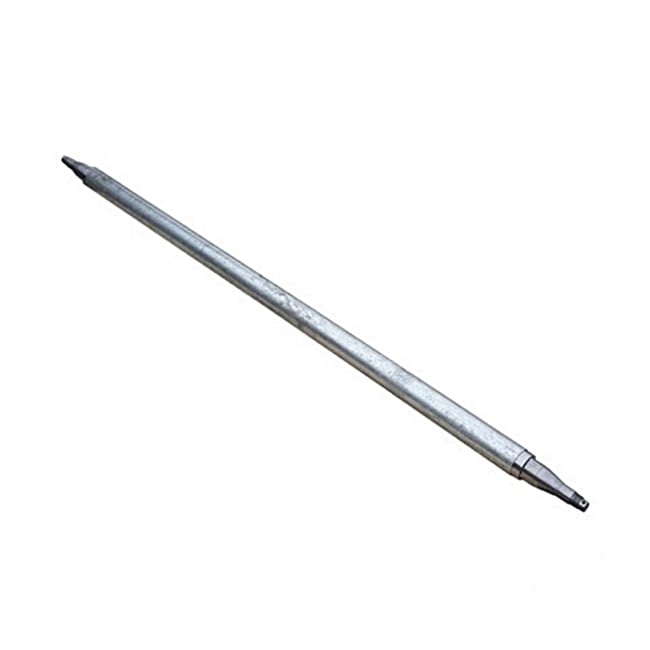

39mm Round Axle Galvanised - 750kg Maximum Rating
39mm round axle is galvanised and rated up to 750kg on LM bearings for single axle trailers and 1500kg to suit tandem or dual axle boat trailers
Add 100mm to the Face to Face measurement to get the tip-to-tip measurement. The axles listed here are face-to-face. The face measurement is where the studs are located on the hub, not the end of the hub.
Axles length is measured from tip to tip; however, the length can also be calculated from hub face to hub face. Axles supplied with nut, washer and split pin.
We cut axles into 3 lengths. 1800mm, 2100mm, and 2200mm and then cut to your desired length. Hence, you will notice the same price for the shorter axles.
Please note: Reduce axle capacity to 600kg when installing wide tyres on standard bearings.
Standard or LM Bearing Sizes are
- Inner ID 31.75mm, OD 59.10mm
- Outer ID 19.05mm, OD 45.20mm
- Seal ID 37.5mm, OD 59.10mm
- Dust Cap 45.20mm
Heavy loads on light axles create what we call axle flex. Axle flex results in axle vibration at high speeds. This vibration occurs in the middle of the axle.
The result of axle flex is premature ageing of the trailer springs and trailer vibration at high speeds.
Replace your 39mm Round Axle Galvanised with a heavy-duty 45mm Square Axle if bending in the middle by more than 5mm.
Wider trailers require square axles for the best suspension performance.
Caravan axles and their maximum rating.
- 39mm Round Axle - 750kg
- 40mm Square Axle - 1000kg
- 40mm Square Galvanised Axle - 1000kg
- Round Axle 45mm - 1600kg
- 45mm Round Galvanised Axle - 1600kg
- Square Axle 45mm - 1450kg
- 45mm Square Parallel Axle - 1600kg
- 45mm Galvanised Square Axle - 1600kg
- 50mm Square Axle - 2500KG
- 50mm Galvanised Square Axle - 2250kg
- 60mm Round Trailer Axle 2t or 3t
- 60mm Round Axle - 3000kg
- 60mm Galvanised Round Axle - 3000kg
Trailer Axle 39mm Round Galvanised
|Dimensions||230 × 50 × 50 cm|
|Tip to Tip Measurement|
1450mm Long, 1475mm Long, 1500mm Long, 1525mm Long, 1550mm Long, 1575mm Long, 1600mm Long, 1625mm Long, 1650mm Long, 1675mm Long, 1700mm Long, 1725mm Long, 1750mm Long, 1775mm Long, 1800mm Long, 1825mm Long, 1850mm Long, 1875mm Long, 1900mm Long, 1925mm Long, 1950mm Long, 1975mm Long, 2000mm Long, 2025mm Long, 2050mm Long, 2075mm Long, 2100mm Long, 2125mm Long, 2150mm Long, 2175mm Long, 2200mm Long, 2225mm Long, 2250mm Long, 2275mm Long, 2300mm Long, 2325mm Long, 2350mm Long, 2375mm Long, 2400mm Long, 2425mm Long, 2450mm Long, 2475mm Long
