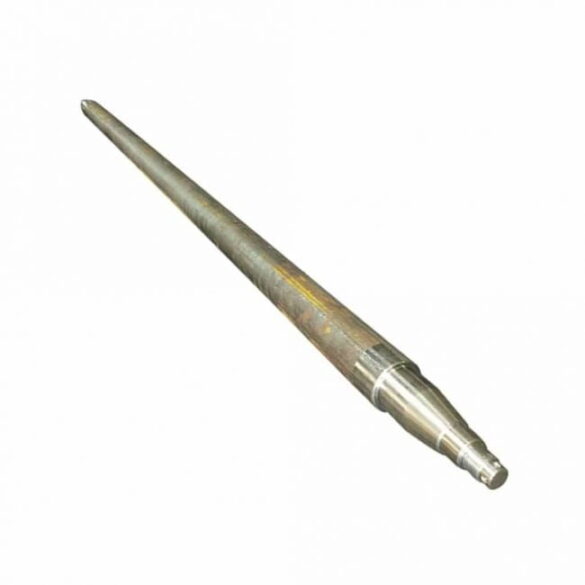

60mm Round Axle is made in Australia and rated to a maximum of 3t
Couplemate manufacturers axles from Bluescope steel in our Wynnum, Brisbane workshops.
Note: Please advise tip to tip length or face to face measurement and axle profile after ordering. Example 2t, 3t, parallel, slimline.
60mm Round axles rarely cause problems.
60mm Round Axle can vary significantly in price. Axles are manufactured in a variety of places, including India, China, Malaysia, and Australia. Real problems may come from imported steel, causing steel fractures along the beam. Consistent hardness along the beam is another problem.
Couplemate uses virgin Australian steel rated to K1045 for 2t and 3t axles.
Trailer Axle Alignment
Installing a new axle into position is quite tricky for novice installers.
Measure the distance from the chassis rail to the back of the hub on both sides. Once correctly aligned, install the u-bolts over the axle.
Alternatively, measure the chassis width of the trailer. This measurement allows us to weld the axle pads onto the axle before delivery. As a result of the installed axle pads, the axle will auto-locate over the spring centre pins.
In seconds, the axle is perfectly aligned and ready for the u-bolt kit to be installed. Great article below.
Other common problems and tips:
- Rough seal journals cause a loss of grease through the rear seal.
- 50mm Square Axles must be examined before installation for cracks in the steel along the axle.
- Some suppliers supply non-virgin steel or scrap steel and forge this steel into a solid square or round shape for axle production. Always ask for Australian Steel.
- Chinese bearings are the second biggest cause of axle failure.
- Using Japanese bearings ensures the reliability of your rig.
- The combination of Japanese Bearings and a 50mm Square Axle will help you lower maintenance costs for your rig.
Calculating The Correct Axle Measurements
As a result of viewing the video above, calculate the face to face measurement.
- Measure the offset wheel. The wheel offset is the distance between the inside of the hub and the outside of the rubber.
- Add 50 mm to the offset. Alternatively, choose your own distance between the rubber and the chassis.
- Multiply by 2 for both sides. Add your chassis width to the above number.
Metric to Imperial Converter
Convert Imperial (inches) to metric (mm)
Still unsure of what measurements to take? Check out this handy guide below:
[P] - Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] - Overall axle length (tip to tip)
[F] - Hub face to hub face measurement
[A] - Chassis width
[C] - Tyre clearance
[B] - Back offset
[H] - Tyre to chassis
[G] - Axle pad centres
Identifying Bearing Combinations
You will also need to identify your bearing combination which can be done by pulling off a hub and bearings and locating the number laser engraved onto the bearing. You will require both the inner and the outer bearing numbers.
Caravan axles and their maximum load capacity
- 39mm Round Axle - 750kg rating
- 39mm Round Axle – Galvanised
- 40mm Square Axle - 1000kg rating
- 40mm Square Galvanised Axle - 1000kg
- Round Axle 45mm - 1600kg
- 45mm Round Galvanised Axle - 1600kg
- Square Axle 45mm - 1600kg
- 45mm Square Parallel - 1600kg
- 45mm Galvanised Square Axle - 1600kg
- 50mm Square Axle - 2500kg
- 50mm Galvanised Square Axle - 2250kg
- 60mm Galvanised Round Axle - 3000kg
|Face to Face Length||
1500mm, 1525mm, 1550mm, 1575mm, 1600mm, 1625mm, 1650mm, 1675mm, 1700mm, 1725mm, 1750mm, 1775mm, 1800mm, 1825mm, 1850mm, 1875mm, 1900mm, 1925mm, 1950mm, 1975mm, 2000mm, 2025mm, 2050mm, 2075mm, 2100mm, 2125mm, 2150mm, 2175mm, 2200mm, 2225mm, 2250mm, 2275mm, 2300mm, 2325mm, 2350mm, 2375mm
