Description

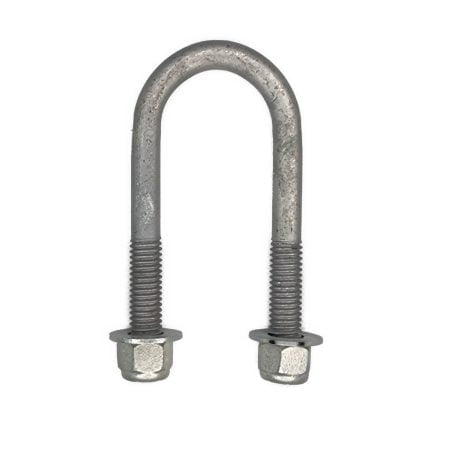

39mm Round Galvanised U-Bolt Incl Gal Nylocks
39mm round galvanised U-bolt made by Couplemate. We manufacture our own galvanised U bolts.
Rolled threads with gal flat washer and galvanised nylocks. Thread length is 60mm.
How do I calculate the correct length, measure
- Spring width plus
- Axle Pad 8mm plus
- Axle width plus
- Nyloc plus
Ensure the thread passes through the nylon in the nut.
How to Measure U-bolts (example)
It is important you retighten u-bolts approx 200lkms after installation due to steels ability to stretch a little under load.
Furthermore, we stress-tested these u -bolts during manufacture and batch test until destruction.
Destruction loads exceed 17,000kg for 1/2 inch galvanised u-bolts.
Finally, our u-bolts are derated to 375kg each or 1500kg per set of 4 or enough u-bolts to suit a single axle.
The max rating of 750kg axles is 750kg with u-bolt rating @ 1500kg.
The humble u-bolt is a major cause of caravan accidents? We think so, read here.
Galvanised u bolt clamp lits are listed below
- 50mm Square Galvanised Ubolt Clamp Kit
- 56mm Galvanised UBolt Clamp Kit
- 75mm Galvanised U bolt Clamp Kit
- 100mm Galvanised U bolt Clamp Kit
| A
Round U-Bolts |
A
Square U-Bolts |
B
Width |
C
Height |
Part Number |
|---|---|---|---|---|
| 1 ½” (39mm) | ½” (13mm) | 4″ (100mm) | U39R4GH | |
| 1 ½” (39mm) | ½” (13mm) | 4½” (112mm) | U39R45GH | |
| 1 ½” (39mm) | ½” (13mm) | 5″ (125mm) | U39R5GH | |
| 1 ½” (39mm) | ½” (13mm) | 5½” (137mm) | U39R55GH | |
| 1 ¾” (45mm) | ½” (13mm) | 4″ (100mm) | U45R4GH | |
| 1 ¾” (45mm) | ½” (13mm) | 4½” (112mm) | U45R45GH | |
| 1 ¾” (45mm) | ½” (13mm) | 5″ (125mm) | U45R5GH | |
| 1 ¾” (45mm) | ½” (13mm) | 5½” (137mm) | U45R55GH | |
| 1 ¾” (45mm) | ½” (13mm) | 6″ (150mm) | U45R6GH | |
| 1 ¾” (45mm) | ½” (13mm) | 6½”(162mm) | U45R65GH | |
| 2″ (50mm) | ½” (13mm) | 4″ (100mm) | U50R4GH | |
| 2″ (50mm) | ½” (13mm) | 4½” (112mm) | U50R45GH | |
| 2″ (50mm) | ½” (13mm) | 5″ (125mm) | U50R5GH | |
| 2″ (50mm) | ½” (13mm) | 5½” (137mm) | U50R55GH | |
| 2″ (50mm) | ½” (13mm) | 6″ (150mm) | U50R6GH | |
| 2″ (50mm) | ½” (13mm) | 6½”(162mm) | U50R65GH | |
| 2″ (50mm) | ½” (13mm) | 7″ (175mm) | U50R7GH | |
| 2 ⅓” (60mm) | ½” (13mm) | 5″ (125mm) | U60R5GH | |
| 2 ⅓” (60mm) | ½” (13mm) | 6″ (150mm) | U60R6GH | |
| 2 ⅓” (60mm) | ½” (13mm) | 7″ (175mm) | U60R7GH | |
| 2 ½” (65mm) | ½” (13mm) | 5″ (125mm) | U65R5GH | |
| 2 ½” (65mm) | ½” (13mm) | 6″ (150mm) | U65R6GH | |
| 2 ½” (65mm) | ½” (13mm) | 7″ (175mm) | U65R7GH | |
| 1 ½” (40mm) | ½” (13mm) | 4″ (100mm) | U40S4GH | |
| 1 ½” (40mm) | ½” (13mm) | 4½” (112mm) | U40S45GH | |
| 1 ½” (40mm) | ½” (13mm) | 5″ (125mm) | U40S5GH | |
| 1 ½” (40mm) | ½” (13mm) | 5½” (137mm) | U40S55GH | |
| 1 ½” (40mm) | ½” (13mm) | 6″ (150mm) | U40S6GH | |
| 1 ¾” (45mm) | ½” (13mm) | 4″ (100mm) | U45S4GH | |
| 1 ¾” (45mm) | ½” (13mm) | 4½” (112mm) | U45S45GH | |
| 1 ¾” (45mm) | ½” (13mm) | 5″ (125mm) | U45S5GH | |
| 1 ¾” (45mm) | ½” (13mm) | 5½” (137mm) | U45S55GH | |
| 1 ¾” (45mm) | ½” (13mm) | 6″ (150mm) | U45S6GH | |
| 1 ¾” (45mm) | ½” (13mm) | 6½”(165mm) | U45S65GH | |
| 1 ¾” (45mm) | ½” (13mm) | 7″ (175mm) | U45S7GH | |
| 2″ (50mm) | ½” (13mm) | 3″ (75mm) | U50S3GH | |
| 2″ (50mm) | ½” (13mm) | 4″ (100mm) | U50S4GH | |
| 2″ (50mm) | ½” (13mm) | 4½” (112mm) | U50S45GH | |
| 2″ (50mm) | ½” (13mm) | 5″ (125mm) | U50S5GH | |
| 2″ (50mm) | ½” (13mm) | 5½” (137mm) | U50S55GH | |
| 2″ (50mm) | ½” (13mm) | 6″ (150mm) | U50S6GH | |
| 2″ (50mm) | ½” (13mm) | 6½”(165mm) | U50S65GH | |
| 2″ (50mm) | ½” (13mm) | 7″ (175mm) | U50S7GH | |
| 2″ (50mm) | ½” (13mm) | 8″ (200mm) | U50S8GH | |
| 2″ (50mm) | ½” (13mm) | 10″ (250mm) | U50S10GH | |
| 2 ¼” (56mm) | ½” (13mm) | 4½” (112mm) | U56S45GH | |
| 2 ¼” (56mm) | ½” (13mm) | 5″ (125mm) | U56S5GH | |
| 2 ¼” (56mm) | ½” (13mm) | 5½” (137mm) | U56S55GH | |
| 2 ¼” (56mm) | ½” (13mm) | 6½”(165mm) | U56S65GH | |
| 3″ (75mm) | ½” (13mm) | 3″ (75mm) | U75S75GH | |
| 3″ (75mm) | ½” (13mm) | 4″ (100mm) | U75S100GH | |
| 3″ (75mm) | ½” (13mm) | 5″ (125mm) | U75S125GH | |
| 3″ (75mm) | ½” (13mm) | 6″ (150mm) | U75S150GH | |
| 3″ (75mm) | ½” (13mm) | 7″ (175mm) | U75S175GH | |
| 3 ¼” (82mm) | ½” (13mm) | 4 ¾” (120mm) | U80S120GH | |
| 4″ (100mm) | ½” (13mm) | 3″ (75mm) | U100S75GH | |
| 4″ (100mm) | ½” (13mm) | 4″ (100mm) | U100S100GH | |
| 4″ (100mm) | ½” (13mm) | 5″ (125mm) | U100S125GH | |
| 4″ (100mm) | ½” (13mm) | 8″ (200mm) | U100S200GH | |
| 1 ¾” (45mm) | ⅝” (16mm) | 6″ (150mm) | CM600GH | |
| 2″ (50mm) | ⅝” (16mm) | 6″ (150mm) | CM602GH | |
| 2 ⅓” (60mm) | ⅝” (16mm) | 7″ (175mm) | CM604GH | |
| 1 ¾” (45mm) | ⅝” (16mm) | 6″ (150mm) | CM601GH | |
| 2″ (50mm) | ⅝” (16mm) | 7″ (175mm) | CM603-7GH |
Couplemate Trailer Parts sells only the best quality 39mm Round Galvanised U-Bolt Incl Gal Nylocks and caravan spare parts throughout Australia.
Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.
We also ship products to New Zealand via Australia Post Air Express.
