50mm Square Heavy Duty U-Bolt Kit

50mm Square Heavy Duty U-Bolt Kit

$94.25

Strong, High-TensileCouplemate Electrogal Logo
Recommended for Heavy Trailers
Perfect for Off-Road and Rocker Roller Springs

Product by Couplemate™ Australia.

Couplemate accepts PayPal, Visa and Mastercard.

50mm Heavy Duty ElectroGal U-Bolt Kits

50mm heavy-duty U-bolt kits are designed to secure 50mm axles to 60mm spring suspension used on tandem trailers.

Product Specifications

  • U-Bolt Thickness: 16mm (M16)
  • Leg Length: 180mm
  • Thread Length: 50mm
  • Coating: ElectroGal

Specifically designed to handle 3000kg and over.

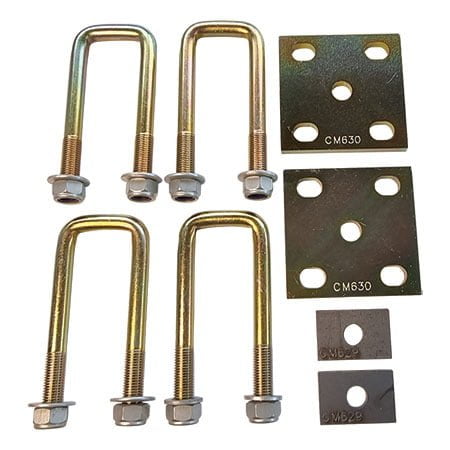

This kit is supplied with:

  • 4 x U-Bolts
  • 8 x Washers
  • 8 x Nyloc nuts
  • 2 x Fish Plates
  • 2 x Axle Pads/Spacers



U-Bolt Calculator

Not sure how long your U-Bolt needs to be? Use the Couplemate™ U-Bolt Calculator to get a quick, accurate answer.

All measurements are in millimetres (mm).



Calculate Total









What is ElectroGal?

ElectroGal is electrolysis that applies a dual coating to steel components. Electrolysis is a reaction to electrically charged particles passing from a base metal through conductive water to the u bolts or other parts that are in solution.

After cleansing, u-bolts are coated with 2 solutions to coat the before the final coating of nickel is applied.

Tightening U-Bolts

Torque Setting: 100Nm

Couplemate recommends tightening nylons with a socket. Critical: Tighten nuts on the diagonals.

Q. Can I use a Rattle Gun to tighten U-Bolts?

Generally speaking, we recommend against it.

Rattle guns used on tightening U-Bolts tighten too fast and can cause the nylon inside the nyloc to overheat and become loose. Rattle guns cause one side of the fish plate to become too tight, causing spring breakages at the centre bolt.

test heavy duty 16mm u-bolt kit

Are Heavy-Duty U-Bolts worth it?

Within the industry, Trailer U-Bolts lack a standardised testing procedure.

However, Couplemate™ Engineers have developed its own rigorous testing method. In this process, we subject u-bolts, nuts, and fish plates to a static load test until destruction occurs.

All of our 16mm Heavy Duty U-bolt Galvanised Kit undergo a 200-tonne test. During this testing, the u-bolts in the right-hand image ultimately broke at the 23t threshold.

The u-bolts in the right-hand image broke at 23t.

Not convinced? Read why U-Bolts could be the primary cause of highway accidents.

Related Towing Products

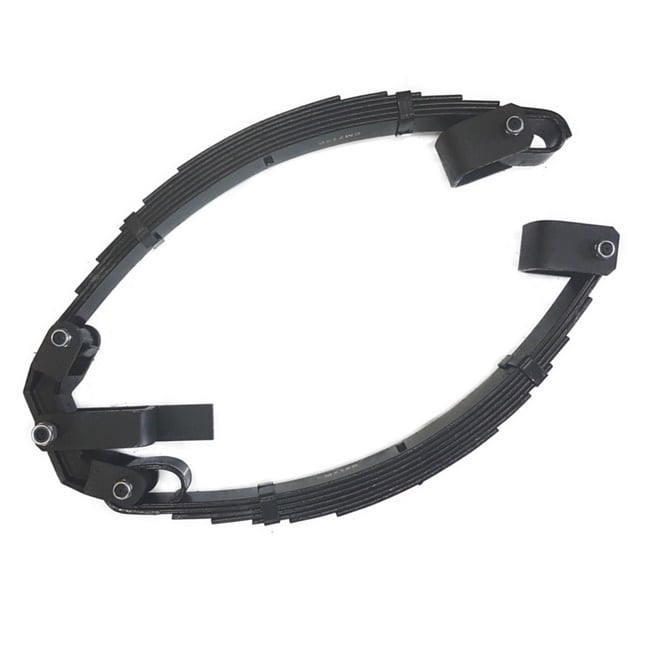

AL-KO Rocker Roller Springsalko rocker roller springs
