2t x 6 Stud Landcruiser 12-inch Galvanised Disc Rotor

Part No: N/A Category: Tags: , ,
Part No: N/A Category: Tags: , ,

Price

Original price was: $280.00.Current price is: $260.00. Inc.GST

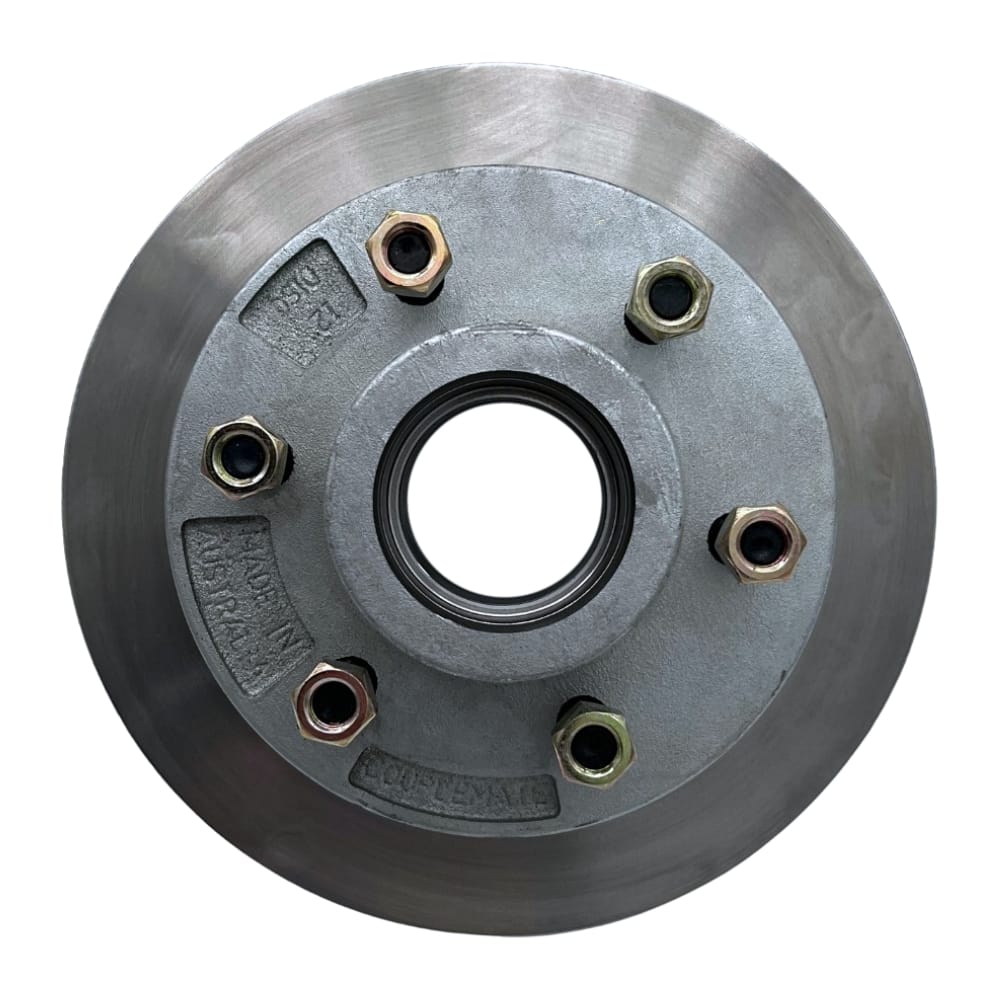

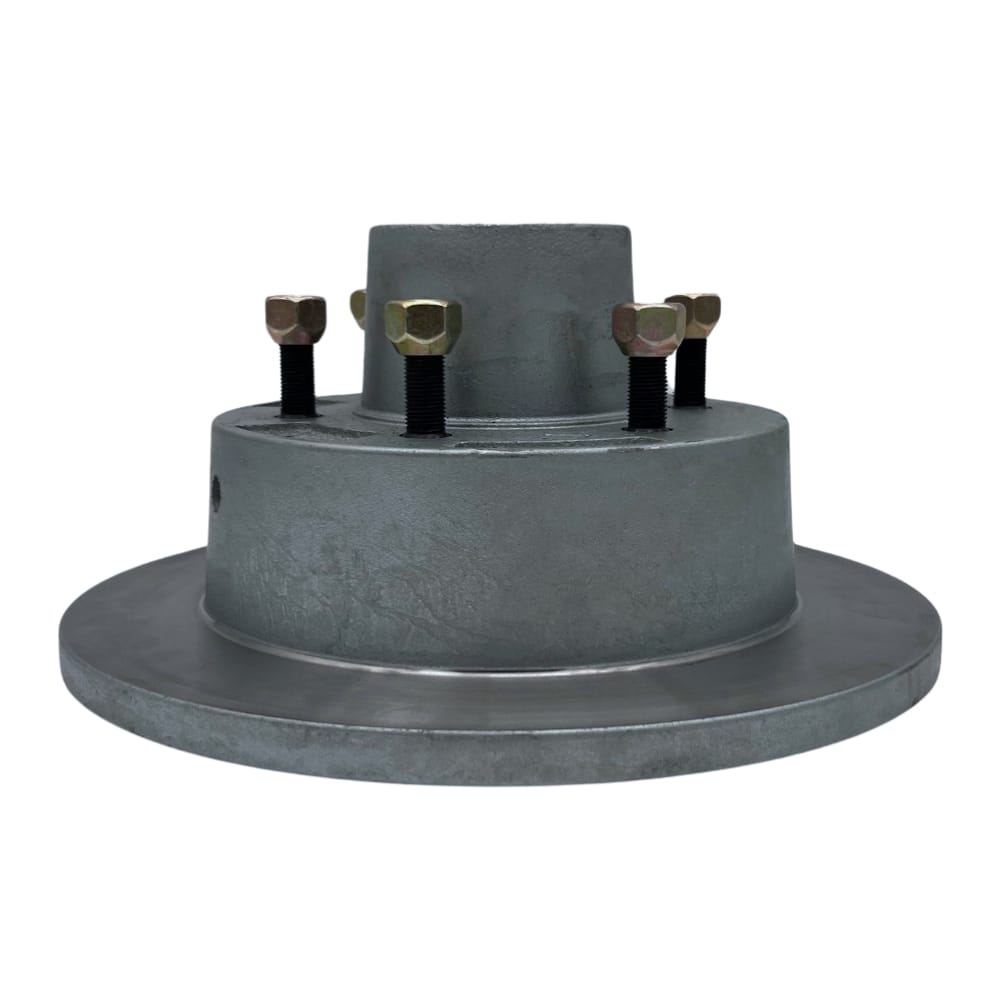

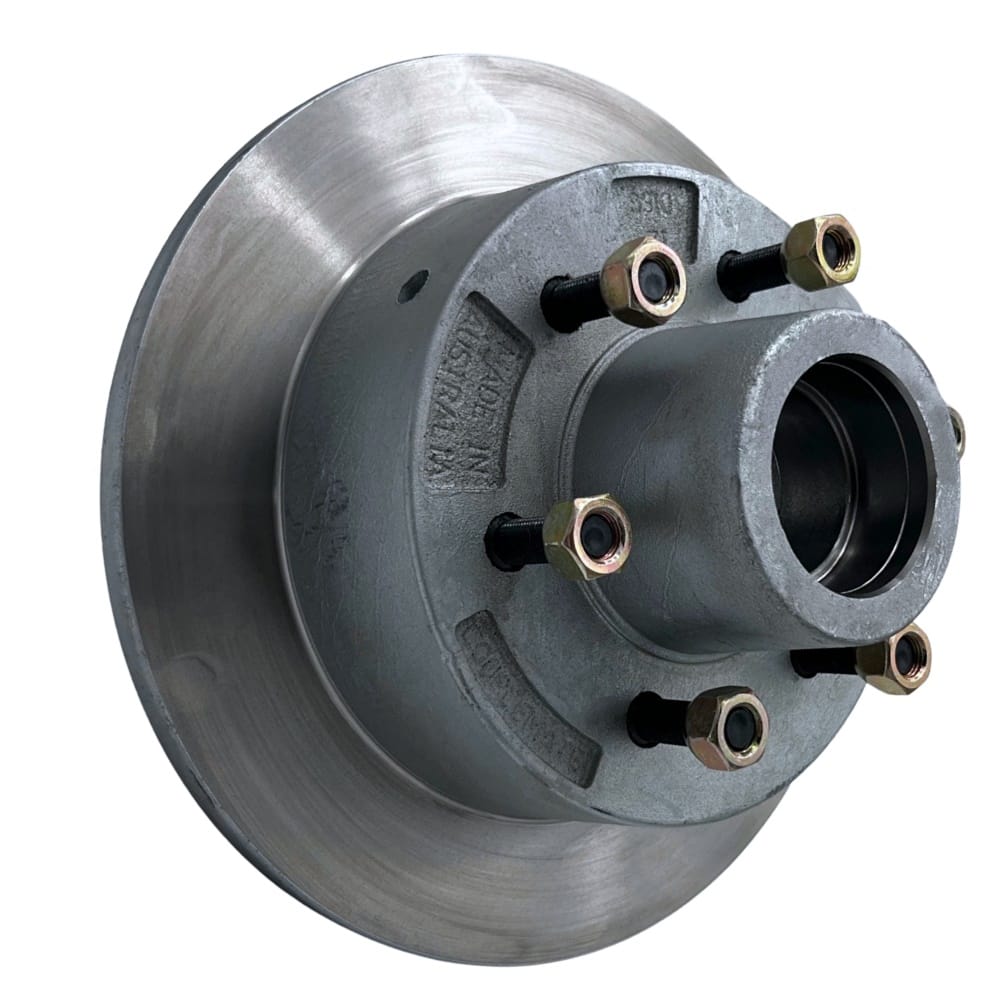

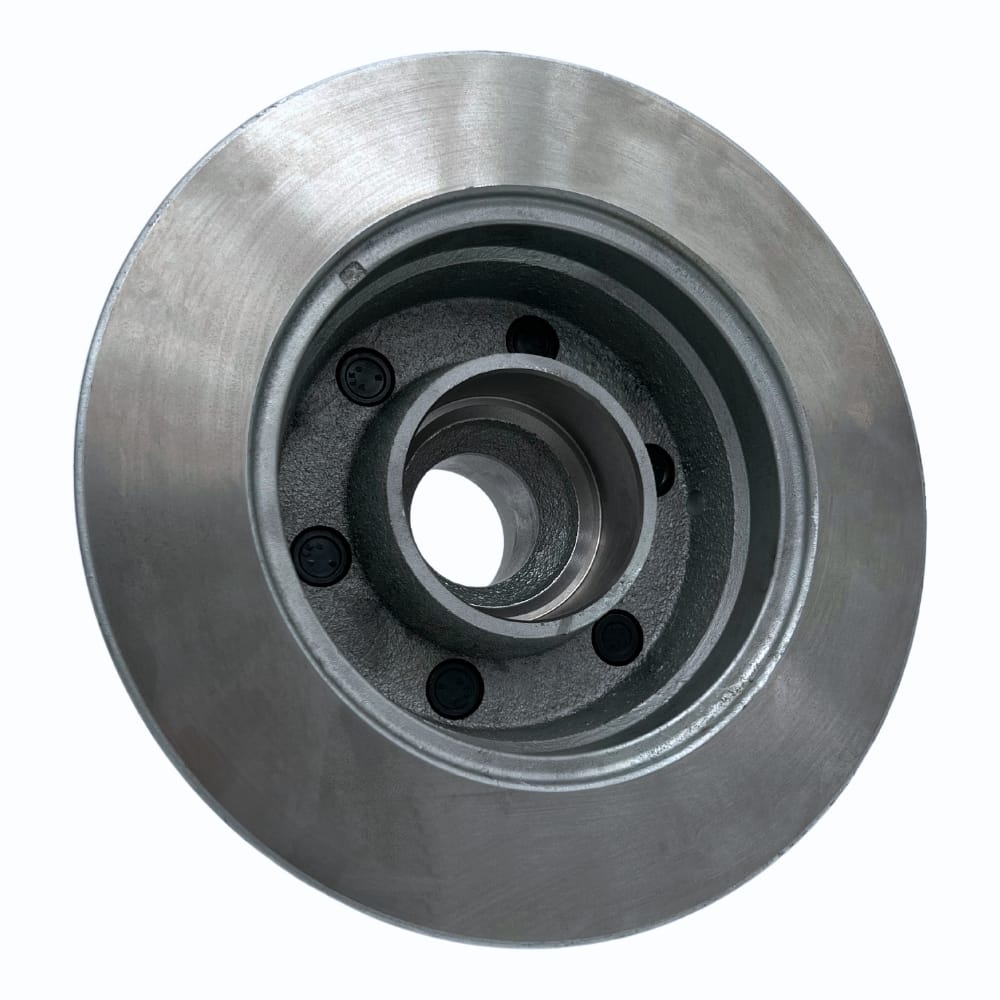

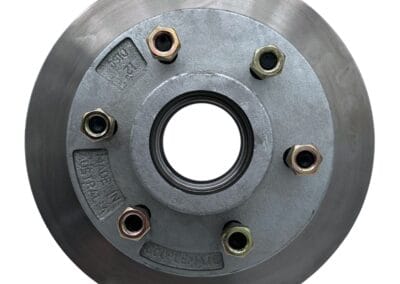

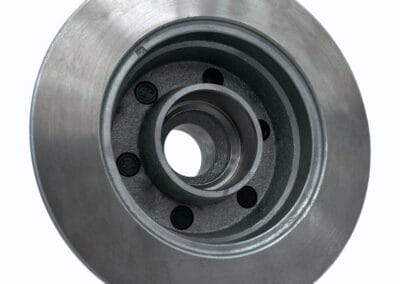

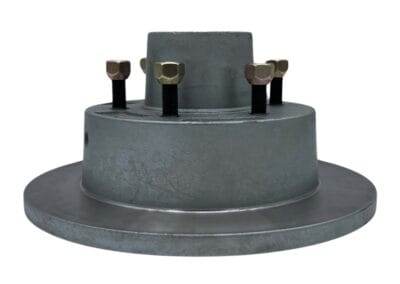

The Couplemate™ 12-inch Galvanised Rotor is available in a 6S Landcruiser stud pattern to suit 2.0t boat trailers and marine axles. It is designed for safe and secure braking and includes 6 x M12x1.5 wheel nuts.

Machined disc surface to maximise braking.
Hot dipper Galvanised to provide superior rust protection.
High-quality hub made from cast iron featuring metric studs to suit mags and steelies.

It is officially licensed with the Australia Made Campaign.

Frequently Purchased Together

NSK AU 2t Marine Wheel Bearing Kit - Seal 494013

High-quality 2.0t Australian bearing kit for caravans, campers, and trailers. Each kit includes one of:

  • 30210J inner bearing
  • 15123/245 outer bearing
  • 63.5mm grease/dust cap
  • Marine  seal

Kits sold individually (per hub).

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

12-inch Galvanised Disc Rotor | Suits 6S Landcruiser Trailer Wheels (2t)

The Couplemate™ hot-dipped galvanised 12-inch integral rotor suits the 6S Landcruiser PCD (139.7mm) and Australian 2t bearings.

Couplemate Trailer Parts manufactures 2t galvanised disc rotors from high-quality cast iron in Australia.

Disc Specifications

  • Diameter: 300mm (12-inch)
  • Hub Coating: Hot Dipped Galvanised
  • Stud Pattern: 6 Stud Landcruiser
  • PCD: 6 x 139.7mm
  • Stud Options:
    • 1/2″ UNF (imperial)
    • M12x1.5 (metric)

N.B. This disc will suit Australian-style calipers (15mm pad spacing) such as ALKO and Trojan.

Trailer Wheel Requirements

  • Minimum Wheel Bore: 105mm
  • PCD: 6 x 139.7mm (i.e. 6S Landcruiser)

Bearing Requirements (not supplied)

  • Inner Bearing: 30210J
  • Outer Bearing:15123/245

Purchase bearings here: Japanese NSK Marine 2.25t Bearing Kit

What are the Benefits of a Galvanised Disc Rotor?

Couplemate™ engineers increased braking capacity by removing the galvanised coating on the disc surfaces.

Coatings like dacroment and zinc on braking surfaces reduce braking efficiency.

Superior Australian-Made Quality

Couplemate™ boat disc rotor hubs are made in Australia: designed, cast, machined, and hot dipped domestically.

It provides superior strength and durability. Reliable disc brakes are important for road safety.

Installation & Safety Guidelines

Please check the condition of your boat trailer axle and trailer bearings before use. A wear-free axle bearing journal and a fresh set of bearings will maximise your rotor efficiency and lifespan.

Couplemate™ strongly advises using Japanese tapered roller bearings with marine-grade grease (not clay-based). Moreover, you’ll want to ensure your disc brake pads are in good condition.

Ensure wheel nuts are tight upon installation. Check and re-tightened wheel nuts and u-bolts after the first trip and every 5000 km/6 months after that.

Dacromet Process vs Hot-dip Galvanizing

Dacromet: In the Dacromet treatment process, chromic acid reacts with zinc, aluminium powder, and base metal to form a dense passive film that is highly corrosion-resistant.

Hot dip galvanizing: First, the iron and steel parts are pickled to remove the iron oxide on the surface of the iron and steel parts.

Products are then immersed in molten zinc solution.

Then, through the reaction and diffusion between iron and zinc, zinc alloy coating with good adhesion is coated on the surface of steel products.

The Application of the Dacromet Process and Hot-dip Galvanizing Process is Different

Dacromet is uses

  • hardware tools,
  • auto and motorcycle parts,
  • subway tunnels,
  • metal parts of light rail,
  • railway and electrified railway,
  • metal parts of bridges,
  • highways,
  • port machinery, and metal parts in high-heat environments around engines.

Hot dip galvanizing uses

  • marine industry,
  • railway,
  • highway protection,
  • power towers,
  • communication towers,
  • street lamp poles,
  • substation auxiliary facilities,
  • and light industry.

Additional information

Weight15 kg
Dimensions35 × 35 × 20 cm
Stud Type

M12x1.5, 1/2" UNF

Stud Pattern (PCD)

Hub Boss Diameter

105mm

Hub Size

12-inch

NSK Bearing #

15123/245, 30210J

Materials

Cast Iron (AS1830)

Coating

Galvanised

Campaign

Australian Made

Bearing Profile
