45mm Round Galvanised Lazy Axle
$377.85 – $543.00
Shipping

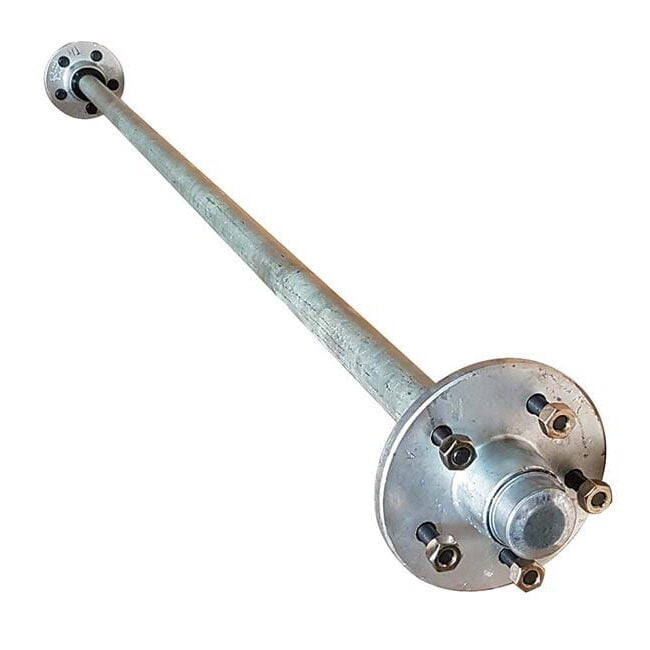

45mm Round Galvanised Lazy Axle
45mm round galvanised lazy or unbraked axle is used on tandem trailers and has a maximum weight rating of 1450kg.
When used on a single axle, the rating is 750kg due to having no brakes.
Parallel axles are perfect for launching trailers in a hardstand boatyard or as the rear axle in a 2000kg tandem axle set.
Why use a parallel axle in a tandem set?
If your rig runs 15″ or 16″ wheels, the parallel rear axle will require less maintenance than a slimline axle suited to the larger bearing setup.
Parallel setups are suitable for 15″ and 16″ wheels only. Smaller wheels use the 1450kg slimline setups.
The Galvanised Unbraked Axle kit comprises:
- 45mm Round Galvanised Axle
- 2 x Galvanised Lazy Hubs
- Nuts to suit the stud pattern
- Japanese bearings
Unbraked axles include axle nuts and split pins. All shafts are made and galvanised in Australia.
Available Stud Patterns
- Ford – Slimline
- HT Holden – Slimline
- HQ Holden – Slimline
- 6 Stud Landcruiser – Slimline
- 5 Stud Landcruiser – Slimline
- 6 Stud Landcruiser Parallel
- 5 Stud Landcruiser Parallel
Review more galvanised lazy axles below
- 39mm Round Galvanised Unbraked Axle
- 45mm Square Galvanised Unbraked Axle
- 50mm Square Galvanised Unbraked Axle
- 60mm Round Galvanised Unbraked Axle
Calculating The Correct Axle Measurements
As a result of viewing the video above, calculate the face-to-face measurement.
- Measure the offset wheel. The wheel offset is the distance between the inside of the hub and the outside of the rubber.
- Add 50 mm to the offset. Alternatively, choose your own distance between the rubber and the chassis.
- Multiply by 2 for both sides. Add your chassis width to the above number.
Still unsure of what measurements to take? Check out this handy guide below:
[P] – Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] – Overall axle length (tip to tip)
[F] – Hub face-to-hub face measurement
[A] – Chassis width
[C] – Tyre clearance
[B] – Back offset
[H] – Tyre to chassis
[G] – Axle pad centres
Identifying Bearing Combinations
You will also need to identify your bearing combination, which can be done by pulling off a hub and bearings and locating the number laser engraved onto the bearing. You will require both the inner and the outer bearing numbers.
Additional information
| Weight | 70 kg |
|---|---|
| Dimensions | 240 × 50 × 50 cm |
| Stud Pattern | 5 Stud Landcruiser – Parallel, 6 Stud Landcruiser – Parallel, Ford (5 x 114.30mm), Holden HT (5 x 107.95mm), Holden HQ (5 x 120.65mm), Land Cruiser 6S, 5s Landcruiser (5 x 150mm) |
| Beam Size | 45mm Round |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
