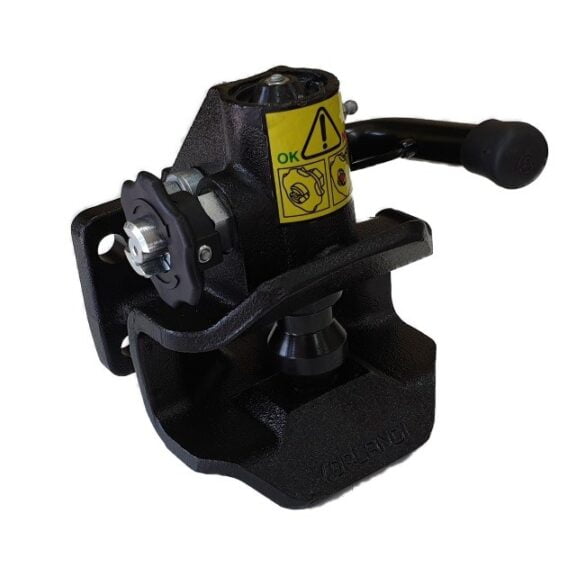

40mm Orlandi (Pin/Ring) Coupling

Part No: CMT001 Category:
Part No: CMT001 Category:

$975.00

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

40mm Orlandi Truck Trailer (Pin/Ring) Coupling

  • Hole Pattern 120mm x 55mm
  • CRN 37744
  • D-Value 30kN
  • V-Value 18kN
  • S-Load 350kg
  • DIN 74054
  • M14 – Class 10.9 Bolts
  • Torque 230 Nm

Operating Instructions

COUPLING

Before the coupling operation, check that the trailer’s brake is on and that the drawbar eye and the coupling are on the same level.

  1. Pull the security knob (3) outwards as shown in figure 2a. (Technical Datalink)
  2. Turn the security knob clockwise as far as it will go as shown in figure 2b, and then release it.
  3. Lift the action lever (4a) as far as it will go as shown in figure 2c. The coupling pin is now up.
  4. Reverse the towing vehicle slowly until the drawbar eye is in the bellmouth. The coupling pin (25) comes down, and the security device engages automatically, as shown in the detailed drawing of Figure 2d.

ATTENTION: Ensure the coupling operation is properly performed and that the security device is engaged as shown in figure 2d.

UNCOUPLING

Make sure that the trailer brake is on, follow points 1, 2, and 3 above and then move the towing vehicle forward. Coming out of the drawbar eye makes the coupling pin come down automatically.

NOTE: To ensure secure and efficient functioning check that during the coupling and uncoupling operation the drawbar eye is not more than 3 degrees higher or lower than the horizontal axis of the coupling

Maintenance

ATTENTION! Make sure that the coupling pin is down during all maintenance operations.

All moving parts of the coupling are subject to wear. The extent of wear depends on the working conditions and on the maintenance carried out.

After every 15.000

  1. Check the tightness of the bolts (2-3 in fig.1) to be:
    Hole pattern Bolt type Class Torque
    120 x 55 M14 10.9 120 Nm
    83 x 56 M10 8.8 50 Nm
  2. Lubricate the mechanism through the lubrication nipple (9) in fig. 4 in the technical datalink
  3. Carry out this operation with the coupling pin (fig. 3b) lifted to avoid over-greasing.
  4. Lubricate all the moving parts of the security system (3)

List of available ring couplings, tow eyes and ringfeder adaptor

Additional information

Weight10 kg
Dimensions20 × 20 × 20 cm
