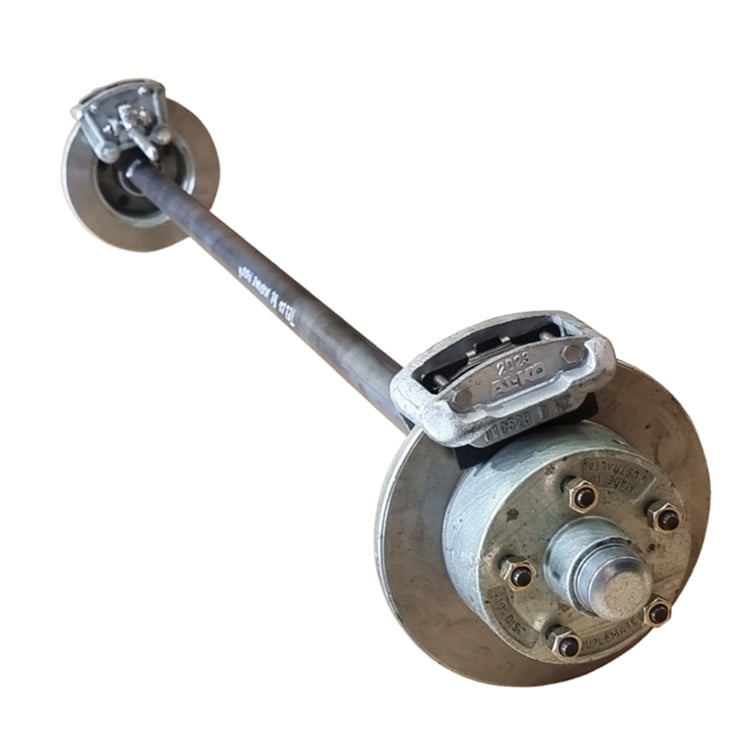

45mm Round Mechanical Disc Braked Galvanised Axle

$880.00$1,146.00

Enter the Face-to-Face length of your axle. (mm).
Please enter a number from 1000 to 2310.

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

45mm Round Mechanical Disc Brake Override Axle Kit

45mm Round Mechanical Disc Brake override axle kits ensure the braking safety of your boat trailer.

The galvanised 45mm round mechanical axle is disc braked and is rated at 1450kg.

Couplemate factory assembles galvanised axles daily in our Brisbane workshops to ensure your travels are problem-free.

How do Override Brakes Work?

When a tow vehicle exerts a force on the brake, the override mechanism is activated, and the internal mechanical callipers are further activated. This provides a great braking experience and ensures the safety of your vehicle.

Depending on the make of your vehicle, Couplemate offers several override axle kits..

Calculating the face-to-face measurement on your axle

  1. Measure the offset wheel. The wheel offset is the distance between the hub’s inside and the rubber’s outside.
  2. Add 50 mm to the offset. Alternatively, choose the distance between the rubber and the chassis.
  3. Multiply by 2 for both sides. Add your chassis width to the above number.

Still unsure of what measurements to take? Check out this handy guide below:

[P] – Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] – Overall axle length (tip to tip)
[F] – Hub face-to-hub face measurement
[A] – Chassis width
[C] – Tyre clearance
[B] – Back offset
[H] – Tyre to chassis
[G] – Axle pad centres

How To Measure An Axle

Identifying Bearing Combinations

You will also need to identify your bearing combination, which can be done by pulling off a hub and bearings and locating the number laser engraved onto the bearing. You will require both the inner and the outer bearing numbers.

Where to identify bearing number. Look for the laser engraved number on the bearing.

Kit Contents:

More Axle kits can be found at the links below.

Finally, this product requires an override coupling, brake cable kit, and a park brake plate and handle.

Additional information

Weight70 kg
Dimensions240 × 50 × 50 cm
Stud Pattern

5 Stud Landcruiser – Parallel, 6 Stud Landcruiser – Parallel, Ford (5 x 114.30mm), Holden HT (5 x 107.95mm), Holden HQ (5 x 120.65mm), Land Cruiser 6S, 5s Landcruiser (5 x 150mm)

Beam Size

45mm Round

Our Service Lifetime Warranty

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.

Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.

Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.

60-Day Returns

After 60 years of experience, we know that life has its unpredictable moments.

All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.

You can view our full policy for change-of-mind returns here.
