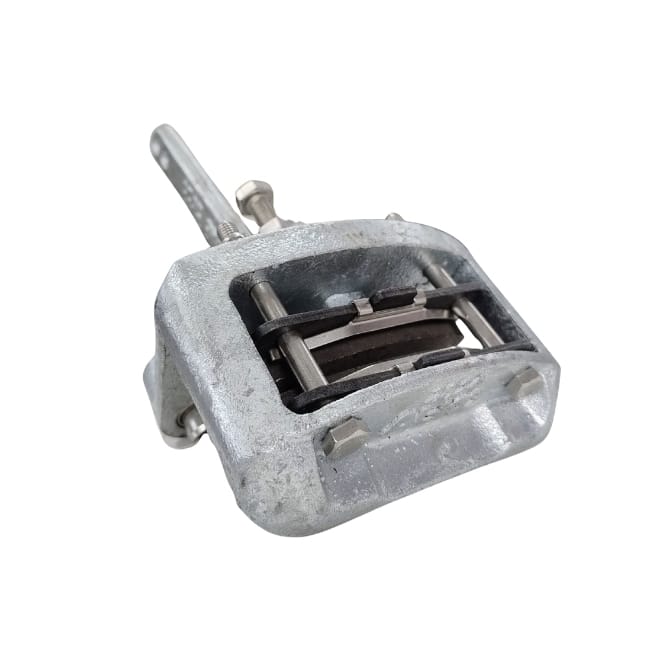

AL-KO Mechanical Disc Brake Caliper

Name: AL-KO Mechanical Forward Pull Disc Caliper
Brand: AL-KO
SKU: CALP-M-AL-FP
Price: $99.00
Availability: InStock

SKU: CALP-M-AL-FP Category: Disc Caliper and Parts Brand: AL-KO

Al-Ko Mechanical Disc Caliper | Forward Pull | Disc Brake

Price

$99.00 Inc.GST

**All of our calipers come with brake pads

Shipping

Select delivery location

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

AL-KO Mechanical Disc Brake Caliper

In many cases, mechanical disc caliper parts for Alko calipers also fit other branded calipers.

Ideal for single-axle trailers and caravans up to 1.5t, and tandem trailers up to 2000kg. Further, mechanical calipers fit both 10-inch and 12-inch disc rotors.

There are four types of Al-ko mechanical disc calipers

1400kg forward pull
1400kg centre pull
2000kg forward pull
2000kg centre pull

The maximum braking capacity is 1300kg on 16-inch Wheels and 1400kg on 14-inch wheels on 45mm Axles and larger.

Mechanical Disc Brakes
Galvanised disc caliper body and lever.
Stainless steel sliding bushes and adjusting bolts.
It suits independent rubber suspension axles and beam axles.
Suitable for discs 10mm to 15mm thick.
Disc and Caliper range to fit wheels from 13 inches to 16 inches in diameter.
Dual brake ratios.
Easy to operate and adjust.

Adjusting the cable removes slack from the stretched cable. Also, adjust the bolt on the Caliper to align the brake pads.

Popular mechanical disc caliper to suit 10-inch and 12-inch disc rotors.

Do you have trouble reversing boat trailers? Check out this caravan reversing guide.

Caliper trailer parts are available below

Tip: Tighten the disc caliper bolt, then back it off 1/2 turn.

Brake adjustment prevents pad chatter and keeps the disc pads perfectly aligned during braking.

Couplemate uses AL-KO calipers on the following axle groups

FAQ & Installation Guide: AL-KO Mechanical Disc Brake Caliper

What You SHOULD Do (Do’s)

Do torque mounting bolts correctly: Always tighten the 7/16” UNF high-tensile mounting bolts to exactly 55 Nm (40 ft-lb) to prevent the caliper from shaking loose.
Do apply thread locker: Coat each mounting screw thread with a high-strength compound like Loctite 262 before securing the caliper to the flange.
Do fit washers correctly: Install both a flat washer and a shakeproof washer directly under the head of each mounting bolt.
Do wash down after saltwater use: Use the open disc design to flush the caliper thoroughly with fresh water after every boat ramp immersion to prevent salt build-up.
Do check rotor compatibility: Verify that your trailer brake discs or rotors are within the compatible thickness range of 12mm to 15mm.

What You Should NOT Do (Don’ts)

Don’t exceed axle weight limits: Never overload past the rated load capacities (typically 1,300kg to 2,000kg per pair depending on whether you are running light-duty or heavy-duty AL-KO variants and wheel sizes).
Don’t mix pull styles blindly: Do not buy a forward-pull caliper if your system requires a centre-pull configuration (commonly used on AL-KO Independent Rubber Suspension / I.R.S. setups).
Don’t let mechanical cables slack or bind: Avoid leaving excessive slack or creating sharp bends in the brake cable housing, which causes friction and significantly reduces stopping power.
Don’t mix brake pads or hardware brands: Avoid using generic aftermarket brake pads; stick to genuine [AL-KO Caliper Spares](https://alko.com.au/product/solutions/disc-brakes/caliper-support-parts/ “AL-KO Caliper Support Parts”) to guarantee rated mechanical performance.
Don’t use for breakaway over 2 tonnes: Do not rely on cable-actuated mechanical calipers for trailers over 2,000kg Gross Trailer Mass (GTM), as Australian regulations require independent control and breakaway systems (like hydraulic IQ7 systems).
