50-Tonne Rigid Mount Pintle Hook – 6 Hole
Price
$1,204.25 Inc.GST
Shipping

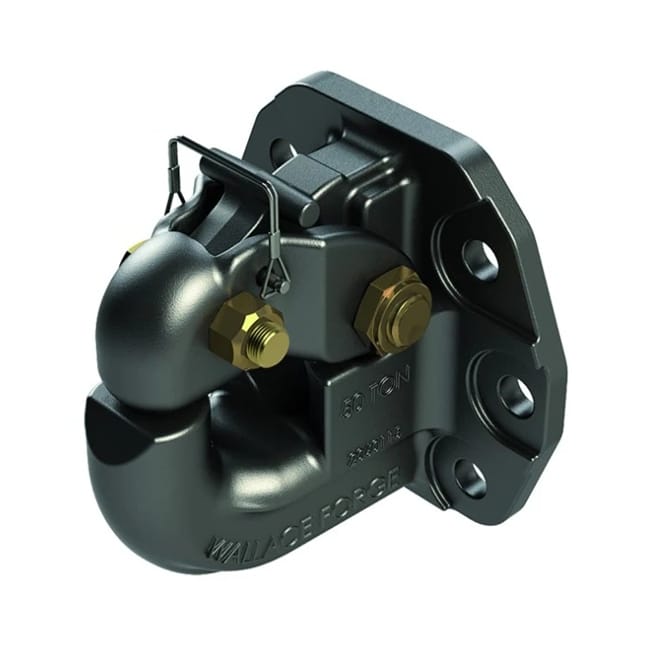

Wallace Forge 50-Tonne Rigid Mount Pintle Hook
ADR APPROVED – CTA-016123
Model: 2060115
Specifications
| Detail | Value |
|---|---|
| Approval | ADR / CTA-016123 |
| Model | 2060115 |
| Mounting Type | Rigid-mount, 6-bolt pattern |
| Maximum Gross Trailer Weight (GTW) | 50 Tonne |
| Maximum Vertical Load (MVL) | 9 Tonne |
| D-Value | 10 Tonne |
| Compatible Drawbar Eye Diameter | 2⅜” (60mm) to 3″ (76mm) |
| Required Eye Thickness | 1¼” (32mm) to 1⅝” (41mm) |
| Recommended Mounting Plate Thickness | At least ⅞” (22mm) |
| Unit Weight | 18.1 kg |
| Bolt Pattern | Standard 6-bolt pintle hook pattern |
Information
This pintle hook is suitable for heavy road-train, construction, and industrial applications.
Use only with a compliant drawbar eye within the specified internal diameter and ring thickness range.
Ensure the mounting plate is minimum ⅞” steel and that bolts are torqued to the manufacturer’s specification.
SIZE GUIDE (Suggested Layout)
1. Compatible Drawbar Eyes
-
Internal Diameter: 60–76 mm (2⅜”–3″)
-
Ring Thickness: 32–41 mm (1¼”–1⅝”)
2. Mounting Requirements
-
Mounting Plate Thickness: Minimum 22 mm (⅞”)
-
Bolt Pattern: 6-bolt heavy-duty pintle hook pattern
(Typically suits M20 or ¾” Grade 8 bolts — check supplier data)
3. Towing Capacity Guide
-
Maximum Trailer Weight: 50,000 kg
-
Maximum Vertical Load: 9,000 kg
-
D-Value: 10,000 kg
(Ensures compatibility with most heavy rigid-to-trailer combinations)
4. Recommended Applications
-
Heavy rigid trucks
-
Side-tippers
-
Low loaders
-
Road train lead trailers
-
Construction equipment trailers
