65mm Rocker Roller Spring Bushes

$14.00 - $21.25

SKU: N/A Category:
Couplemate accepts PayPal, Visa and Mastercard.

65mm Rocker Roller Spring Bushes

6t x 65mm rocker roller spring bushes are high tensile and include

  • Steel Roller Bush
  • Steel Bush to suit the centre rocker bolt
  • Bush to suit spring eye

Associated Parts

Spare Parts Specifications

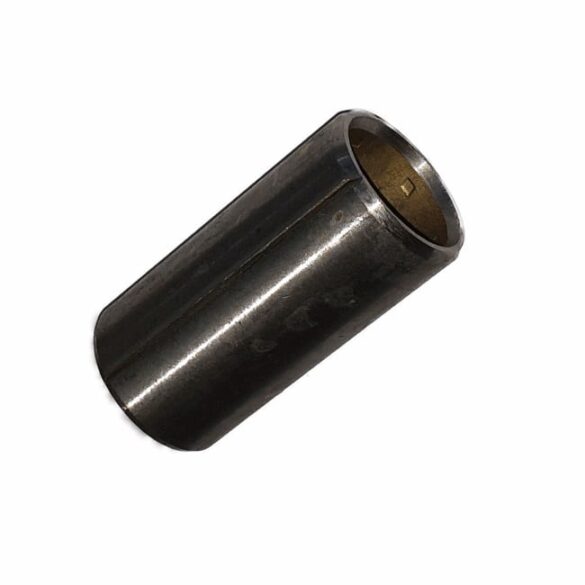

  • D0918 – ID 1 inch – OD 1 1/4 inch – Width 65mm – Rocker arm centre bush
  • D0923 – ID 7/8 inch  – OD 1 1/8 inch – Width 65mm – Spring eye bush

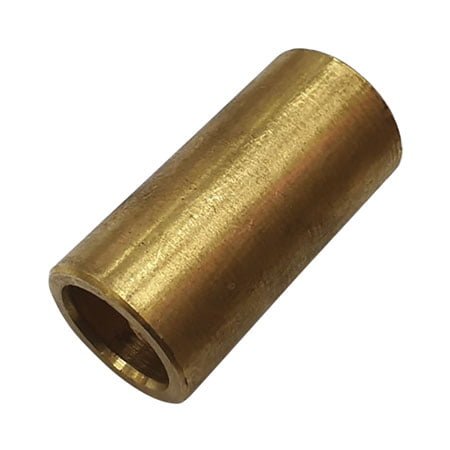

  • D2202 – 22.75mm ID x OD 1 1/4 inch

Rocker Roller Installation  method

The length of rocker roller springs can vary from 1mm to 5mm. The best method to install is as follows.

  • Weld the Center bracket into position, connect the centre rocker and attach springs to the centre rocker.
  • Install front and back spring hanger brackets onto the springs.
  • Stretch the front spring as far as it will go and tack it onto your chassis rail.
  • Stretch the back spring as far as it will go and tack it onto your chassis rail.

Why U-bolts may be the Major Cause of Accidents

Additional information

Weight0.25 kg
Dimensions7 × 4 × 4 cm
65mm Rocker Roller Bush

ID 7/8 inch  – OD 1 1/8 inch, 22.75mm ID x OD 1 1/4 inch, ID 1 inch – OD 1 1/4 inch
