65mm Rocker Roller Spring Parts

6t x 65mm rocker roller spare parts are high tensile and include

• Steel Roller Bush
• Steel Bush to suit the centre rocker bolt
• Brass Bush to suit spring eye
• Shackle Bolts
• 65mm Centre rocker arm

8 Leaf x 6t Springs up to – 18-inch Wheels

Spare Parts Specifications

• D0918 - ID 1 inch - OD 1 1/4 inch - Width 65mm - Rocker arm centre bush
• D0923 - ID 7/8 inch  - OD 1 1/8 inch - Width 65mm - Spring eye bush
• D2202 - 7/8 inch ID x 65mm Brass Bush

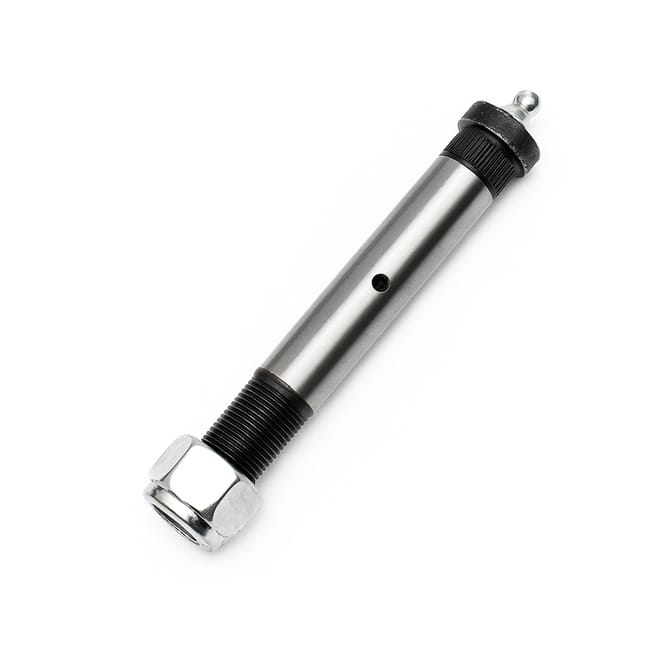

• D1117 - Spring Greasable Shackle Pin - 7/8 inch x 4.5 inch
• D1119 - Rocker Center Greaseable Shackle Pin - 1-inch x 4.5 inch
• D1715 - 65mm Center rocker arm

Rocker Roller Installation method

The length of rocker roller springs can vary from 1mm to 5mm. The best method to install is as follows.

• Weld the Center bracket into position, connect the centre rocker and attach springs to the centre rocker.
• Install front and back spring hanger brackets onto the springs.
• Stretch the front spring as far as it will go and tack it onto your chassis rail.
• Stretch the back spring as far as it will go and tack it onto your chassis rail.
