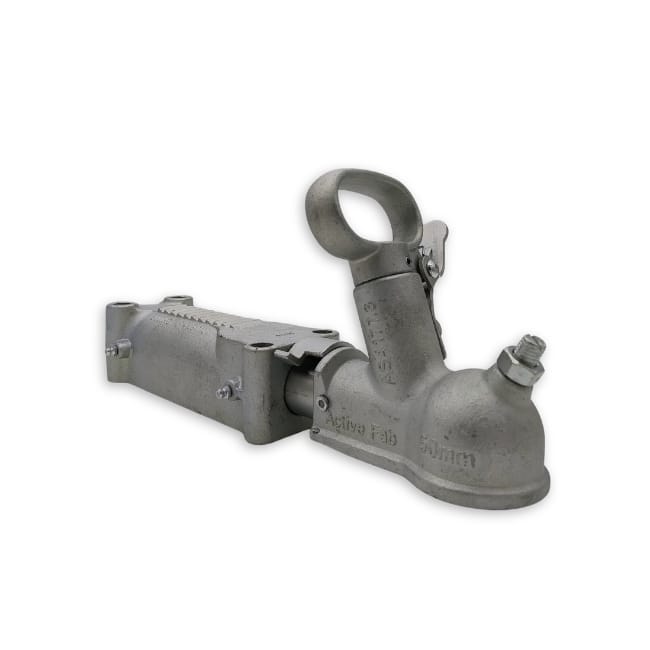

AL-KO 2000kg Override Coupling CTA-060194

Part No: CM233 Category:
Part No: CM233 Category:

$165.00

ADR Compliant
Suits hydraulic and mechanical brakes
Rated for up to 2000kg

Genuine AL-KO product.

Recommended Hand Brake

AL-KO Override Park Low Profile Hand Brake

 ADR Compliant.
Australian-Standard 4-Bolt Hole Pattern
Suits mechanical override couplings.

Genuine AL-KO product.

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

AL-KO Override Ball Coupling to suit 2t brake spring kits

The 2t Mechanical Override Coupling from AL-KO is a versatile coupling system used with both mechanical and hydraulic braking systems, as well as 2t disc rotors.

This coupling is designed to provide reliable and secure towing performance, ensuring that your trailer stays connected to your vehicle at all times.

With its durable construction and easy-to-use design, the AL-KO Override Ball Coupling is a popular choice among trailer owners and towing professionals alike.

We carry good stocks of AL-KO 1t and 2t mechanical override couplings for immediate Express Dispatch

Hole Spacings 184mm x 54mm x 13.5mm

AL-KO Override Ball Coupling and Complies with Australian Standards. Override couplings suit the following hydraulic brake systems:-

Be sure to buy a brass 3/16-inch adaptor to insert into the Master Cylinder. The 3/6-inch tube will have a flared end, which must be fitted into an adaptor to seal the connection properly.

The adjustment nut on the coupling head is a 1/2-inch BSW thread. This nut prevents the coupling from jumping on the tow ball and creates and tight fit by removing slop that can occur through wear,

To properly adjust this nut;

  • Put pressure on the coupling head to firmly on the tow ball.
  • Loosen the nut.
  • Screw the thread so you can feel it touch the top of the tow ball.
  • Now tighten the locking nut being careful not to unscrew the threaded screw.

Your coupling should now be tight and ready to tow.

Coupling plates are available here

Review more couplings from these links below

Additional information

Weight10 kg
Dimensions30 × 20 × 20 cm
