Price
$7.00 Inc.GST
U-bolt Kit 100mm long. Add roughly 13mm to your length for the spacer plate and nut/washer.
✓ Galvanised U-bracket with 60mm thread length.
✓ Includes 2 x Galvanised Nyloc nuts (1/2″ BSW).
✓ Also available in a U-bolt clamp kit.
All dimensions (length, width) are the internal U-Bolt measurements.
Shipping

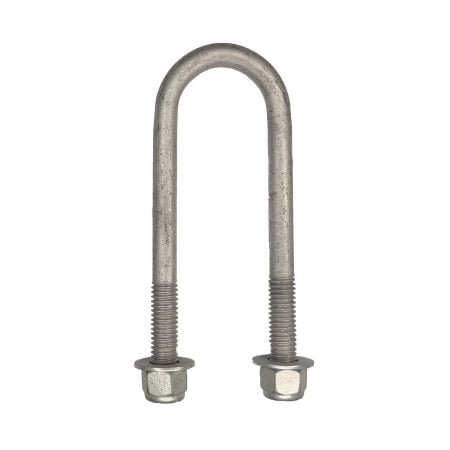

150mm x 39mm Round Galvanised U-Bolt Incl, Gal Nylocks
150mm x 39mm round galvanised U-bolts by Couplemate are also known as 40mm round u bolts.
Rolled threads with gal flat washer and galvanised nylocks. The thread length is 60mm.
How do I calculate the correct size? Measure
- Spring width plus
- Axle Pad 8mm plus
- Axle width plus
- Nylock plus
Ensure the thread passes through the nylon in the nut. The captive nylon insert is the key to locking a Nylock nut onto a thread.
Removing the Nylock nut weakens the nylon insert upon reuse.
39mm Round U-Bolts Fit the following Axles
- 39mm Round Axle
- 39mm Round Axle – Galvanised
- 39mm Round Unbraked Lazy Axle
- 39mm Round Galvanised Lazy Axle
How to Measure U-bolts
Measure U-bolts from the inside of the U-bolt to the tip of the thread.
It would be best to retighten U-bolts approximately 200 hours after installation, as the steel tends to stretch slightly under load.
Furthermore, we stress-tested u-bolts during manufacture and batch test until destruction.
Destruction loads exceed 17,000kg for 1/2-inch galvanised U-bolts.
Finally, U-bolts are derated to 375kg each or 1500kg per set of 4 or enough U-bolts to suit a single axle.
The max rating of 750kg axles is 750kg with a U-bolt rating of 1500kg.
The humble U-bolt is a significant cause of caravan accidents.
Read how U-bolts cause accidents here.
39mm Round U-Bolts in various lengths
Galvanised U-bolt clamp kits are listed below
Additional information
Weight | 0.5 kg |
---|---|
Dimensions | 10 × 6 × 1 cm |
Bolt Diameter | 12.7mm |
Coating | Galvanised |
Fastener Type | U-Bolt |
U-Bolt Width | 39mm |
Stud Thread | 1/2" BSW |
