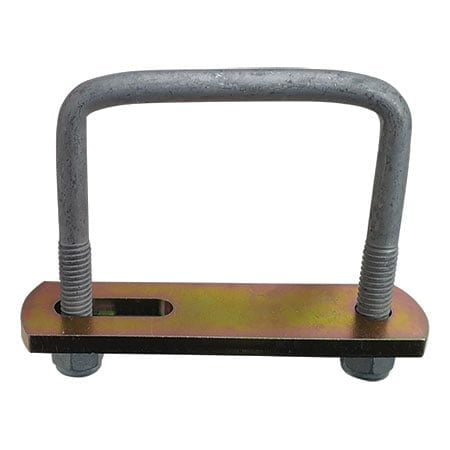

100mm Square U-Bolt Clamp Kit

SKU: N/A Category: U-Bolts and Kits Tags: Couplemate™ Core, U-Bolt Clamp Kit Brand: BoltBiz

Price

Price range: $14.30 through $19.50 Inc.GST

U-Bolt Length

Clear

U-bolt available from 75mm to 200mm lengths. Add roughly 13mm to your length for the spacer plate and nut/washer.

✓ Galvanised U-bracket with 60mm thread length.
✓ Includes 2 x Galvanised Nyloc nuts (1/2″ BSW).
✓ Electro-plated spacer plate (8mm thick).

All dimensions (length, width) are the internal U-Bolt measurements.

Shipping

Select delivery location

100mm U-bolt Clamp Kit

100mm U-bolt Clamp Kit with plates is used to clamp equipment to boat trailers or similar trailers.

U-bolts are measured from the leg’s inside to the thread’s tip. The width of the u-bolt is always measured from the inside.

Available Lengths are

75mm
100mm
125mm
150mm
200mm

Tip: Tightening with a rattle gun can cause uneven tension on the clamp.

Check all mild steel U-bolts for tightness after the first 100 kilometres of travel. Mild steel stretches upon initial tightening, so it is best to check.

The inside measurement is 100mm.
Measure theInsidee of the top to the tip of the thread to obtain the desired thread length.

Understanding Caravan and Trailer U-Bolts

Purchase more U-bolt clamp kits here

Frequently Asked Questions: 100mm Square U-Bolt Clamp Kit

The Do’s

Do measure your material: Verify your square tube, drawbar, or chassis rail is exactly 100mm wide before installation.
Do check thread clearance: Ensure you have enough protruding thread length to accommodate your bracket thickness, washers, and nuts.
Do tighten evenly: Alternate between the two sides of the U-bolt while tightening to ensure even clamping pressure.
Do use a torque wrench: Tighten the nuts to the recommended torque specification for your bolt grade to avoid stripping threads.
Do apply anti-seize: Use a thread lubricant (especially on stainless steel variants) to prevent thread galling or seizing.
Do inspect regularly: Check the tightness of the nuts after your first trip, particularly when used on boat trailers or heavy-duty racks.

The Don’ts

Don’t use on round bars: Never use a square U-bolt on round tubing, as it will concentrate stress and crush the pipe.
Don’t over-tighten: Avoid using high-powered impact wrenches, which can bend the cross-plate or stretch the U-bolt threads.
Don’t reuse deformed bolts: Never reinstall a U-bolt that has been bent, stressed, or shows visible thread damage.
Don’t mix metal types: Avoid pairing raw steel plates with galvanized or stainless bolts to prevent galvanic corrosion.
Don’t modify the bolt: Do not heat, bend, or drill into the U-bolt, as this drastically reduces its structural load rating.

Additional information

Weight	0.3 kg
Dimensions	15 × 8 × 4 cm
Coating	Galvanised
Stud Thread	1/2" BSW
Spacer Plate Type	Slotted Shackle Plate
U-Bolt Length	75mm, 100mm, 125mm, 150mm, 175mm, 200mm
U-Bolt Application	U-Bolt Clamps
U-Bolt Width	100mm
Fastener Type	U-Bolt
