50mm Square U-Bolt Clamps

Part No: 50SGC Category:
Part No: 50SGC Category:

$12.75$17.25

U-bolt available from 75mm to 250mm lengths. Add roughly 13mm to your length for the spacer plate and nut/washer.

✓ Galvanised U-bracket with 60mm thread length.
✓ Includes 2 x Galvanised Nyloc nuts (1/2″ BSW).
✓ Electro-Plated spacer plate (8mm thick).

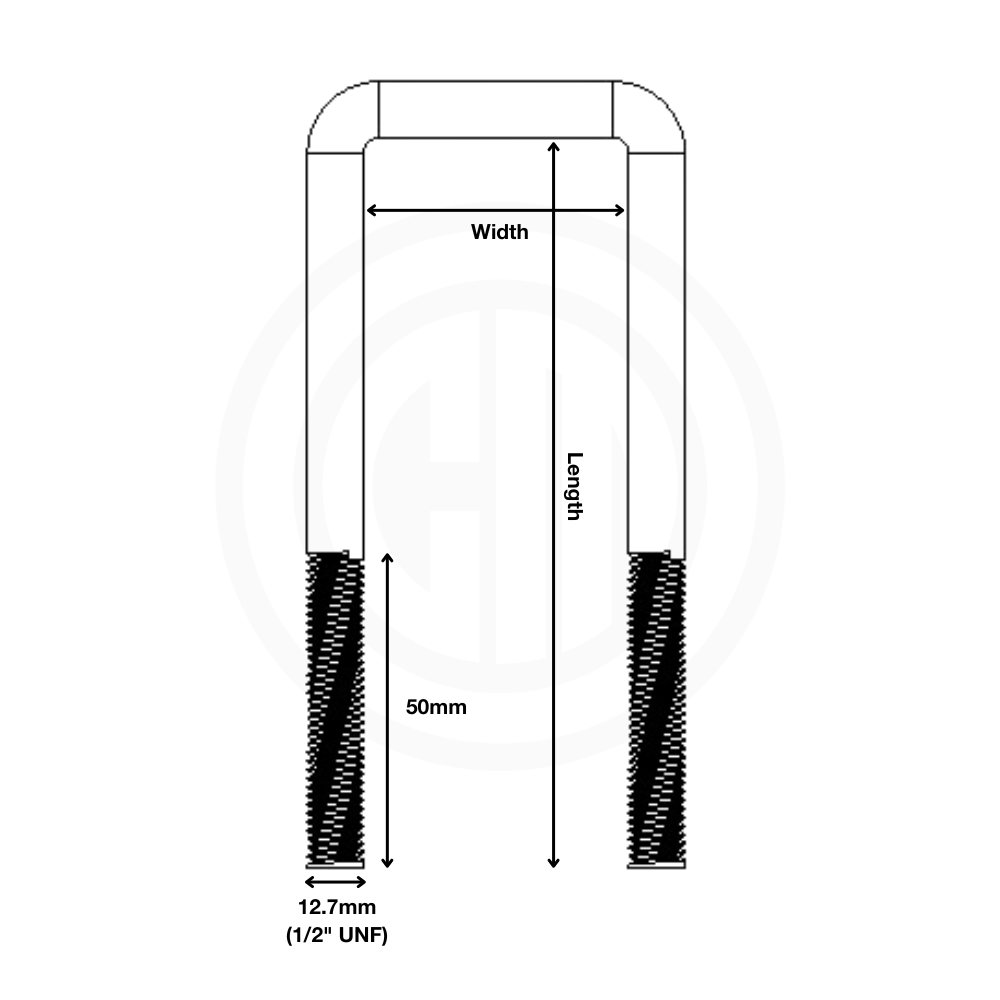

All dimensions (length, width) are the internal U-Bolt measurements.

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

50mm Square Galvanised U-bolt Clamp Bracket Kit Incl Washers Nylocks

50mm square galvanised u-bolt clamp kit is ideal for clamping boating equipment and other hardware with great ease.

This kit is designed for trailers and boat trailers when you need to lug equipment around.

Replacement u-bolts for this clamp kit are here.

The special anti-corrosive galvanising treatment makes the bolt last longer without rusting and provides the strength to carry necessary hardware. The clamp kit comprises additional washers and nylock nuts galvanised to maintain superior quality.

Further, the 50mm square galvanised U bolt has rolled threads instead of cut threads. Additionally,

  • the thread length is 60mm.
  • The thread size is 1/2 inch BSW.

Four elements uniquely define any U-bolt:

  1. Material type (for example, bright zinc-plated mild steel or galvanised)
  2. Thread dimensions (for example, 1/2 inch )
  3. Inside diameter (for example, 50 mm – the distance between the legs)
  4. Inside height (for example, 125 mm)

50mm Galvanised Clamp Kit Technical Specs:

  • Weight- 1 kg
  • Dimensions- 8 x 6 x 6 cm
  • Shackle Plate 40x x 8mm
  • Select Length- 75 mm, 100 mm, 125 mm, 137mm, 150mm, 162mm, 175 mm, 200mm, 250mm

You can also check out the other U bolts on Couplemate.

Furthermore, we tested these u bolts during manufacture and batch tests until destruction.

Destruction loads exceed 17,000kg for 1/2-inch galvanised u-bolts.

Finally, derated u-bolts to 375kg each or 1500kg per set of 4 or enough u-bolts to suit a single axle.

The max rating of 750kg axles is 750kg with a u-bolt rating of 1500 kg.

Vibration fatigue can loosen u-bolts if not re-tightened after 300 km.

Purchase more U-bolt clamp kits here

50mm Square Galvanised Ubolt Clamp Kit

Additional information

Weight1 kg
Dimensions8 × 15 × 1.5 cm
U-Bolt Length

75mm, 100mm, 115mm, 125mm, 140mm, 150mm, 165mm, 175mm, 200mm, 250mm

U-Bolt Application

U-Bolt Clamps

Fastener Type

U-Bolt

Coating

Galvanised

Stud Thread

1/2" BSW

U-Bolt Width

50mm

Spacer Plate Type

Non-Slotted Shackle Plate

Bolt Diameter

12.7mm
