51kN Pintle Hitch Tow Bar Receiver (7.0t ATM)

Name: Pintle Hitch Tow Bar Receiver | 6.0t High-Strength Hook
Brand: Couplemate
SKU: PINTLEHOOK-535
Price: 250.25 AUD
Availability: OutOfStock
Rating: 5.00 (1 reviews)

SKU: PINTLEHOOK-535 Category: Pintle Hooks Tags: Couplemate™ Core, CTA Certified, Pintle Brand: Couplemate

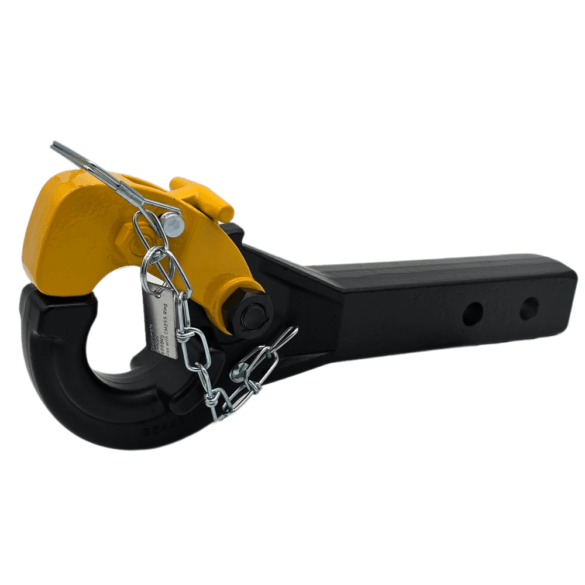

Photo Of Genuine Yellow Horn Couplemate Pintle Hitch With Tow Bar Hitch Receiver Arm

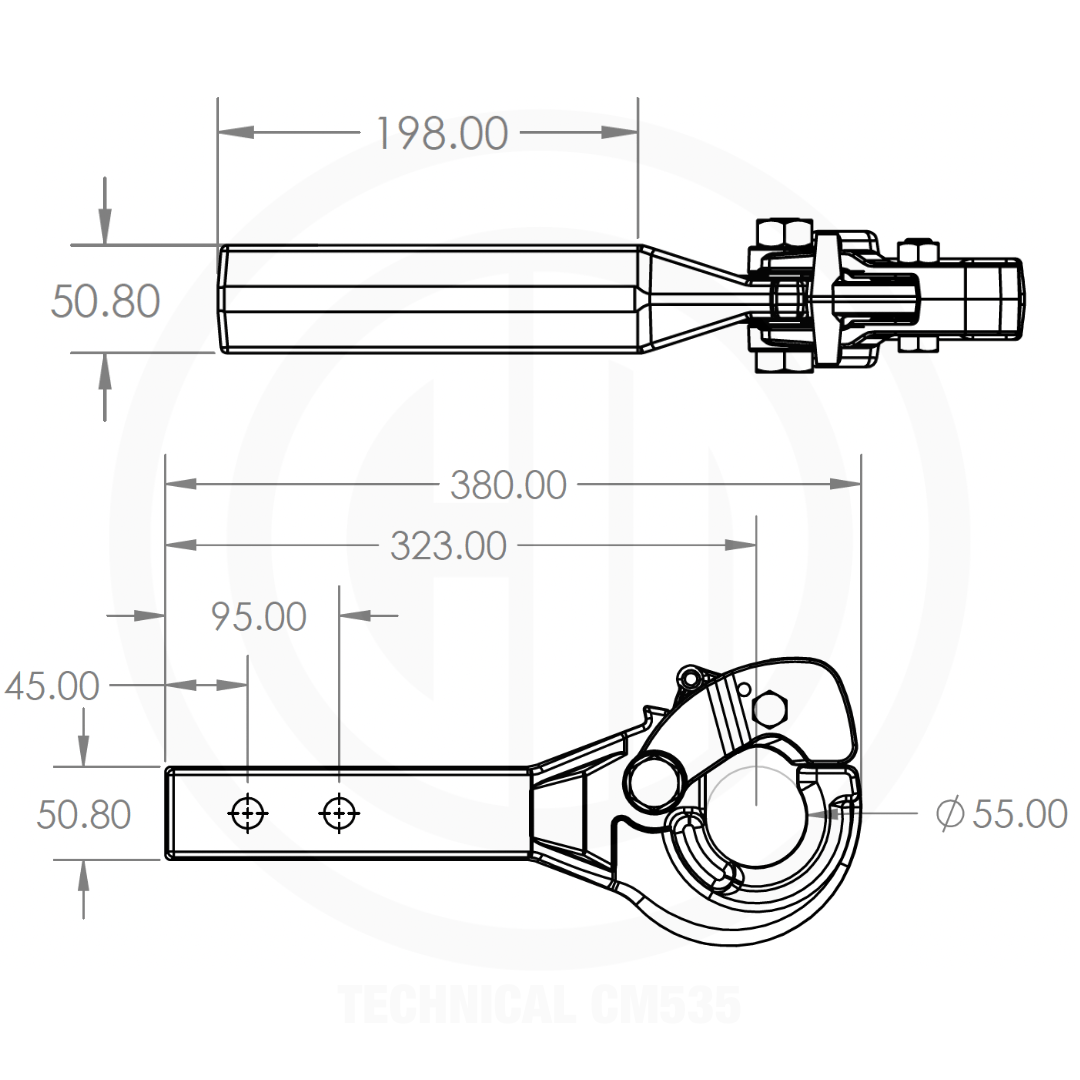

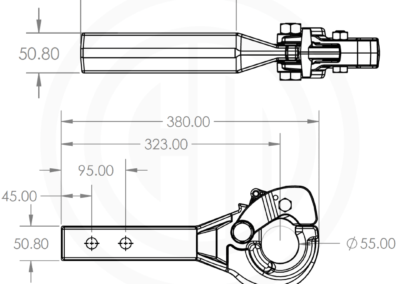

Engineering schematic of the Couplemate CM535 pintle hook tow bar receiver hitch

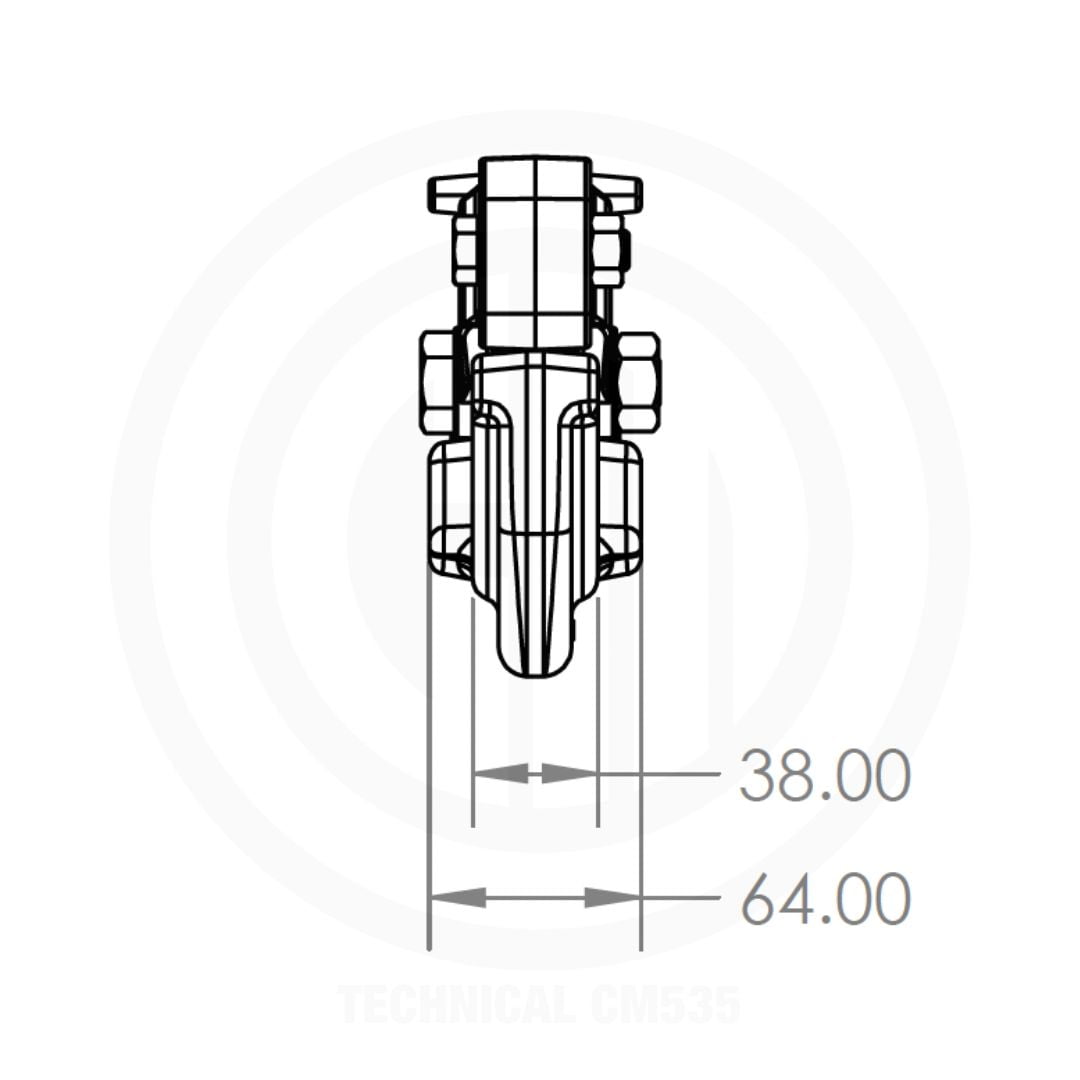

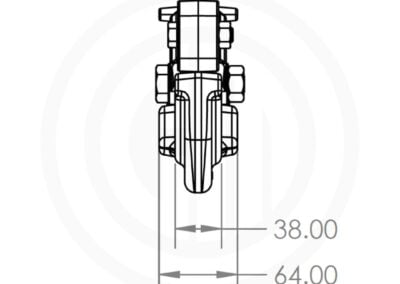

Engineering schematic of the Couplemate CM535 pintle hook tow bar receiver hitch front view

Price

$250.25 Inc.GST

Out of stock

Genuine Yellow-Horn Couplemate™ Pintle Hook

Out of stock until May 2026

✓ Forged hitch body provides a safe and secure trailer connection.
✓ High-strength pintle receiver arm for standard Australian tow bars.

N.B. Please ensure the D-Value is compatible with your application.

Shipping

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

High-Strength Pintle Hitch Tow Hitch Receiver | 51kN (7.0t ATM)

The CM535 is a forged pintle hitch tow bar adaptor.

Genuine yellow-horn Couplemate™ pintles ensure a safe, secure connection, and this high-strength pintle receiver provides safe towing applications up to 7000kg (7.0 t) ATM.

It is worthwhile noting that price discrepancies when what appear similar hooks are due to testing. Couplemate pintle hook undergoes either dynamic cyclic testing or static testing according to ADR62 – Mechanical Connections between Vehicles.

Pintle Hook Tow Hitch Specifications

Materials: Medium-strength high tensile carbon steel (K1045)
Size: Suitable for 50mm tow bars.
D-Value: 51kN.
V-Value: 40kN.

The component has the forged pintle body, chain, pin, and clip. Please note that it does not come with a tow bar retaining pin.

Shop our entire pintle range here

Important Pintle Information: 51kN D-Value

“D-Value” refers to the maximum force that can be safely exerted on a component along a prescribed axis.

In simple terms, a D-Value assigns a rating to towing connections.

Please use the table below to ensure the 51kN value suits your application.

Jackknife Events

Important: Take care when reversing to prevent jackknife events.

Read about Jackknife events here.

Inexperienced drivers cause a jackknife. In the past, owners have called, assuming it was a warranty issue, because the drivers were unaware of how the damage occurred.

The article above explains the Jackknife with additional images illustrating the unintentional damage caused by reversing.

Broken Couplings

Purchase other pintle hook mount equipment here.

Additional information

Weight	10 kg
Dimensions	40 × 20 × 6 cm
Materials	SAE1045 (Forged)
Coating	Powder Coated
Max. ATM	6000kg ATM
