AL-KO 7 Leaf x 60mm Jayco Tandem Springs
Price
$415.00 Inc.GST
Shipping

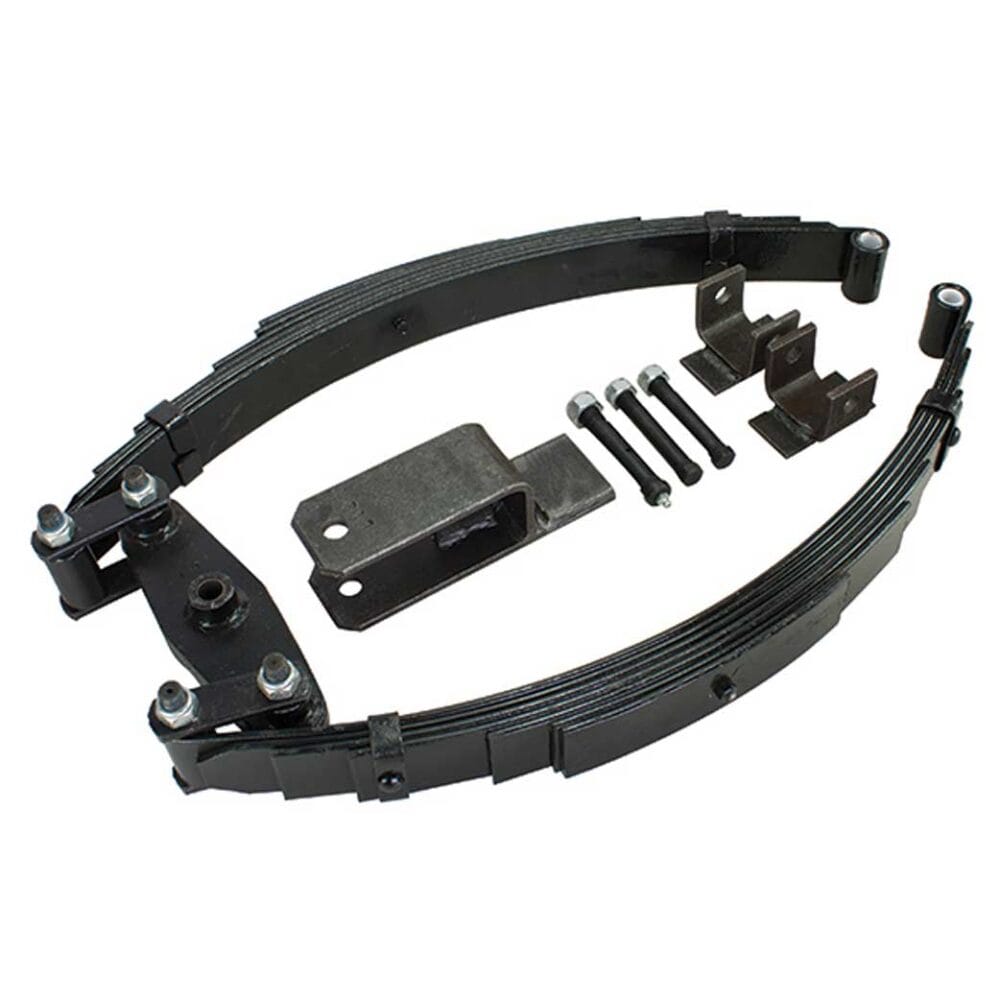

7 Leaf Standard Tandem Jayco Springs from AL-KO
7 Leaf Jayco standard tandem springs are among the most popular springs when upgrading Jayco caravan suspension.
Jayco and other caravan manufacturers use this type of spring. The price is for one side only and includes two springs and a spring kit.
The shackle spring kit contains
- 60mm Standard Tandem Rocker Arm
- Centre hanger x 1
- Shackle plates and shackle bolts x 2
- Front and rear hangers x 2
- 18mm Centre Bolt x 1
- M16 Non-Greaseable Shackle Bolt x 6
Caravan tandem springs are 60mm wide and are among the best investments you can make in your suspension system.
How so? 60mm springs twist less and are more robust, better withstanding shock loading from potholes, railway lines, cattle grids, and corrugations.
If you choose 45mm-wide springs and a lower-cost suspension system, you must determine whether your trailer is suitable for harsh conditions or for local use.
OK, so right now, you have a grasp on spending a few extra dollars as a better investment for your family adventures.
Purchase single replacement springs below
Replacement Spring Sizes and ratings
- 5 Leaf Single Spring – 2000kg Pair
- 6 Leaf Single Spring – 3000kg Pair
- 7 Leaf Single Spring – 3400kg Pair
- 5 Leaf x 60mm Standard Tandem Springs
- 6 Leaf x 60mm Standard Tandem Springs
Caravans use this spring for its durability at high speeds. This spring can withstand twisting under shock loads, such as high-speed potholes.
Specifications – 7 Leaf Standard Tandem Springs
- 60mm x 6mm
- 700mm eye-to-eye
- 120mm free camber
- 386mm eye-to-centre bolt
- 16mm Shackle pin diameter
- Spring bushes 16mm x 22mm x 60mm
Tack weld it to the hanger plate to prevent the shackle bolt from spinning.
Tip: Springs fit 14″ wheels. If your wheel is 15″ or 16″, then turn one spring around. These springs have a 50mm offset from the centre.
Tandem springs can be challenging to fit correctly. This article may help you with your setup or adjust your existing configuration.
Additional information
| Weight | 30 kg |
|---|---|
| Dimensions | 100 × 40 × 20 cm |
| Spring Leaf # | 7 Leaf |
| Spring Camber | 120mm |
| Spring Leaf Thickness | 6mm |
| Spring Length | 700mm |
| Spring Offset | 386mm |
| Spring Leaf Rating | 7 leaf – 800kg – 60mm |
