45mm x 16mm Square Heavy Duty U-Bolts
Price
$12.50 Inc.GST
Shipping

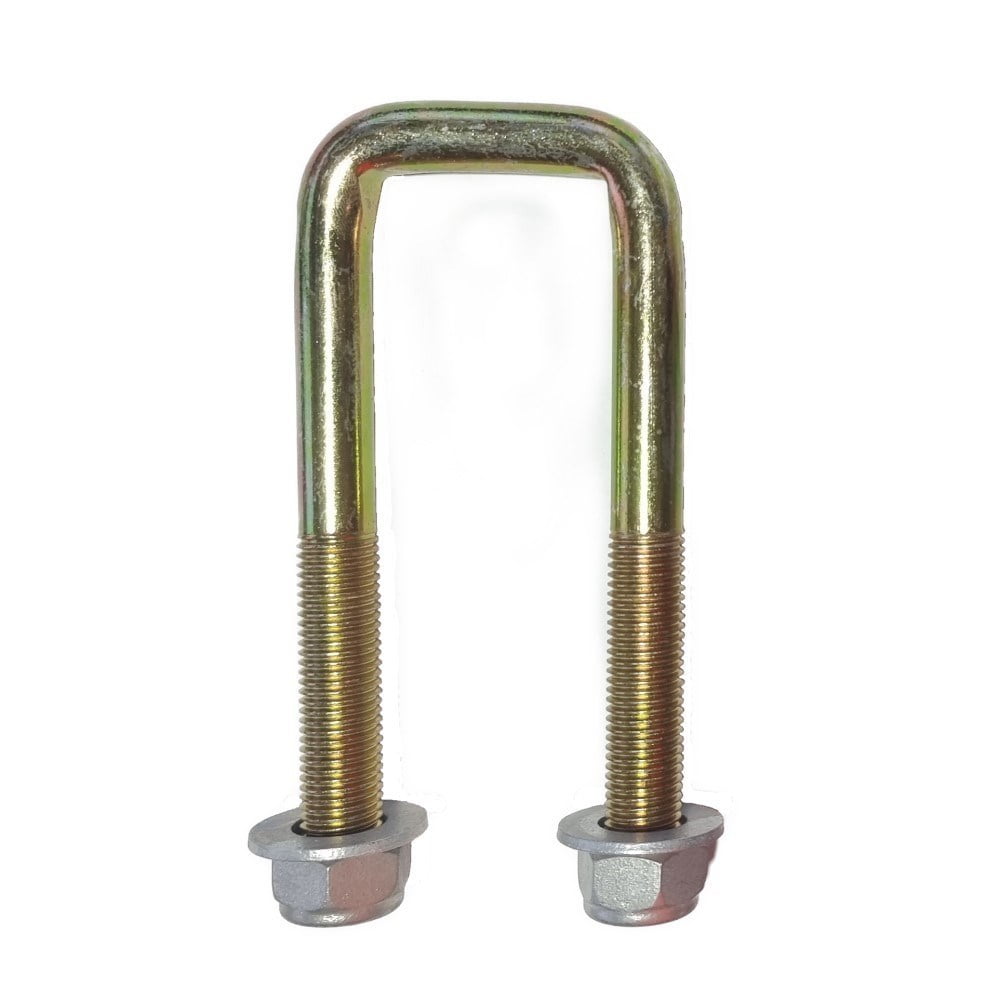

45mm x 16mm Square ElectroGal U-Bolt Incl Nylock and Washer
46mm x 16mm Square U-bolts are U-shaped bolts with a thread length of 75mm.
Upgrade your trailer’s stability with our 45mm x 16mm Square ElectroGal U-bolts. Tested for reliability, these heavy-duty U-bolts are perfect for rigs up to 6t.
Couplemate have tested both 1/2-inch and 16mm u-bolts to destruction.
The BBL or break load limit of 16mm u-bolts is 23t. This BBL is well above the working loads of trailers up to 6t.
For loads exceeding 6t, we recommend high-tensile U-bolts with UNF threads to ensure sufficient torque when tightening nuts.
M16 U-bolts are available in a variety of sizes and materials, including:
- Inside width: 45mm is the inside width and the distance between the two legs of the U-bolt.
- Length: The U-bolt’s length is 150 mm, measured from the bottom of the bend to the bottom of the threads. M16 u-bolts are available in lengths ranging from 150mm to 200mm.
- Grade: The grade of the U-bolt refers to its strength.
When choosing an M16 U-bolt, it is essential to consider the following factors:
- The size of the object you are securing: The inside width of the U-bolt should be large enough to fit around the object you are securing.
- The thickness of the object you are securing: The U-bolt should be long enough to go through the object you are securing and leave enough thread to attach a nut.
- The environment in which the U-bolt will be used: When used in a corrosive atmosphere, use stainless steel or another corrosion-resistant material.
M16 U-bolts are versatile and affordable fasteners for various applications.
U-Bolt Kits are available here
- 45mm Square Heavy Duty U-Bolt Kit
- 50mm Square Heavy Duty U-Bolt Kit
- 60mm Round Heavy Duty U-Bolt Kit
- 65mm Round x 16mm ElectroGal U-Bolt Kit
Purchase Replacement 16mm U-bolts here
- 50mm x 16mm Square ElectroGal U-Bolt
- 60mm x 16mm Round ElectroGal U-Bolt
- 65mm x 16mm Round ElectroGal U-Bolt
- M16 Flat Washer- Galvanised – 701037
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 8 × 2 × 20 cm |
