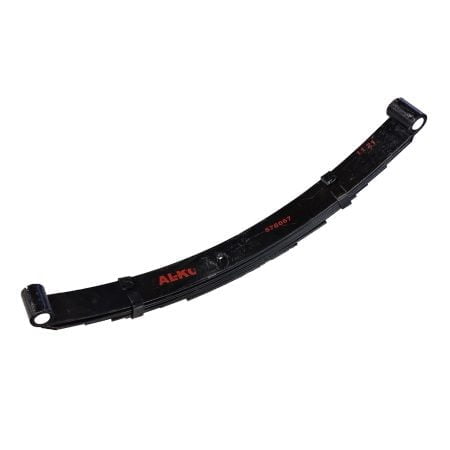

AL-KO 7 Leaf x 60mm Offset Leaf Spring – 685mm – 576067

Part No: SHACKLE-60-685-7-Offset-AL Category:
Part No: SHACKLE-60-685-7-Offset-AL Category:

Price

$179.00 Inc.GST

Frequently Bought Together

60mm Caravan Tandem Shackle Kit

M16 Non Greaseable Shackle Bolt

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

Al-ko 7 Leaf x 685mm Offset 60mm wide Replacement Caravan Spring.

The Al-ko 7 Leaf x 685mm Offset 60mm wide Replacement Caravan Spring is a 7-leaf spring with an eye-to-eye measurement of 685mm and a width of 60mm.

It has a free camber of 117mm and an eye-to-center bolt measurement of 300mm and 385mm. The spring is made of 6.5mm thick leaves and is powder-coated black.

This spring is a replacement spring for caravans with a G&S Chassis. It is shorter than standard tandem springs and is no longer a standard spring to obtain. However, it is still available from some retailers, such as Couplemate Trailer Parts.

Melbourne Trailers supplied a G&S Chassis caravan suspension system. However, Alko discontinued it and replaced it with the 57606X series springs.

This particular spring is shorter than standard tandem springs and is no longer a standard spring to obtain.

Should I replace all springs when one spring broken or flattened?

In an emergency, on holidays and stuck in an outback town, the best thing to do is to replace the broken spring and continue your journey.

At a suitable time, visit a weight bridge and weight your rig because it is likely the rig is heavier than you think.

Now your rig has the correct weight, consider replacing the other spring because it is likely to be damaged also.

You might even be surprised to learn that you need a spring upgrade becuase your existing spring is both under rated and over working.

If you need more information on the right course of action, call the experts on 0733483822 and we’ll help you though ensuring your rig is in great shape for the highway.

685mm x 60mm offset springs are available in the following capacity

  • 6 Leaf – 990 kg per spring
  • 7 Leaf – 1100 kg per spring

Features

  • 685mm Eye to Eye.
  • 5/8″ x 7/8″ x 60mm bush.
  • Free Camber 117mm
  • Eye to Center Bolt 300mm and 385mm
  • 6.5mm Leaf
  • Powder Coated Black

If you want a replacement spring for your caravan with a G&S Chassis, the Al-ko 685mm Offset 60mm wide Replacement Caravan Spring is a good option. This high-quality spring will provide your caravan a smooth and comfortable ride.

We suggest putting your caravan over a weighbridge to get your exact loading before any upgrade.

Furthermore, in most cases, resolved spring problems begin with a weighbridge certificate and a set of tow ball scales.

Couplemate highly recommends using tow ball scales to help you correctly balance your caravan.

Spring upgrades are standard on tandem setups. In many cases, suspension upgrades re-invigorate the caravan’s towing capacity to OEM standards.

Purchase similar 60mm springs here.

Finally, upgrading broken springs to the next load capacity is common. However, keep the same ATM intact.

Al-ko 685mm Offset Spring

Additional information

Weight11 kg
Dimensions93 × 15 × 10 cm
