Rated Bow Shackle
Price
Price range: $4.00 through $7.50 Inc.GST
Shipping
✓ Hot-dipped galvanised body surface finished.
✓ Marking with WLL, size, manufacture ID, grade and batch number.
✓ AS 2741 compliant.

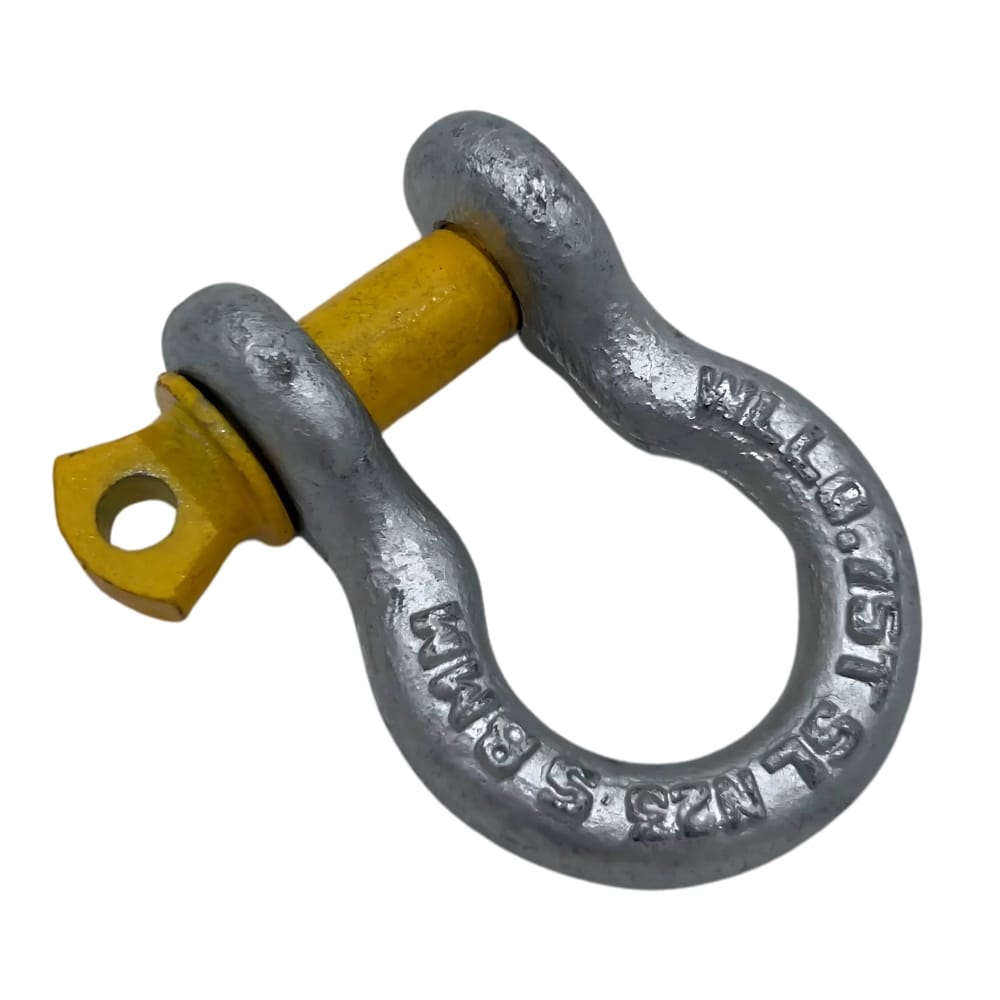

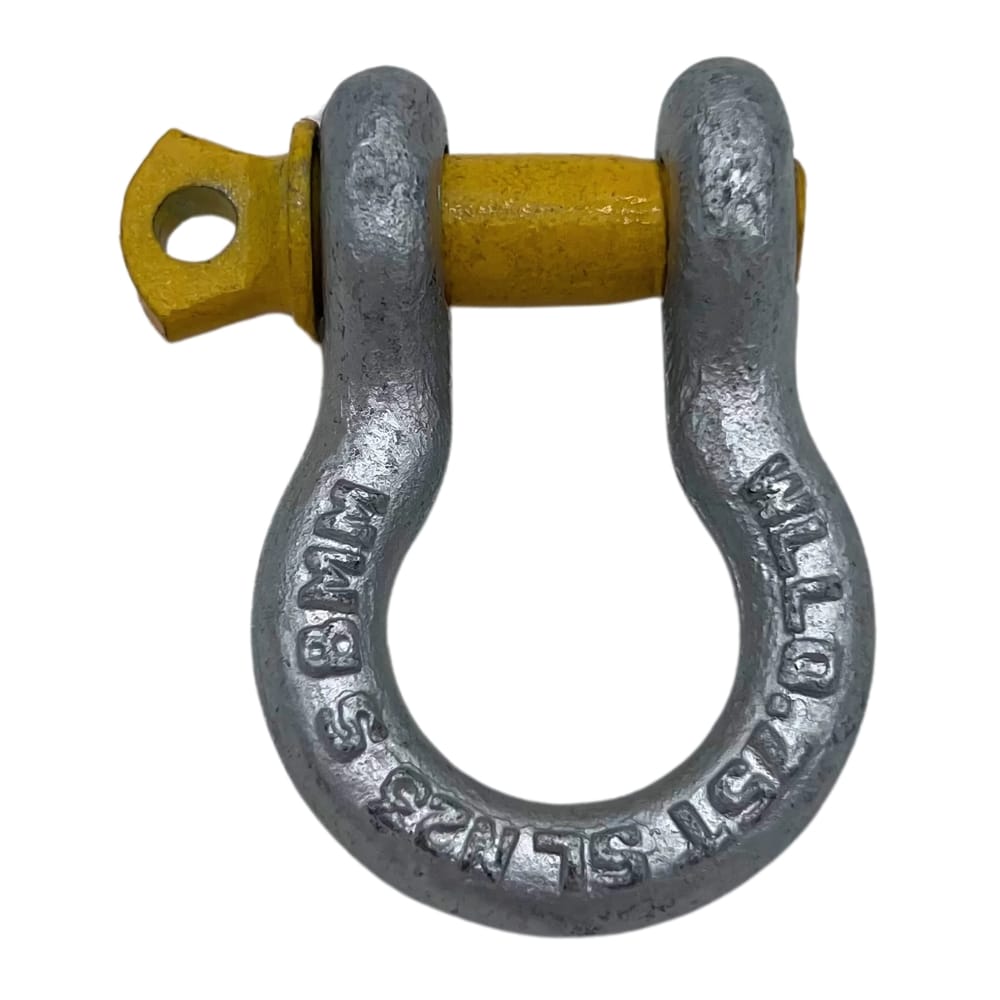

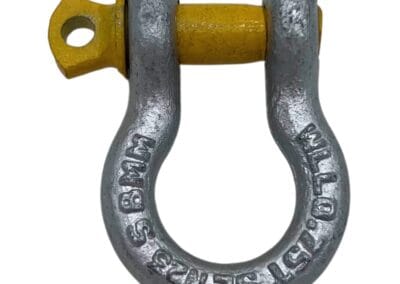

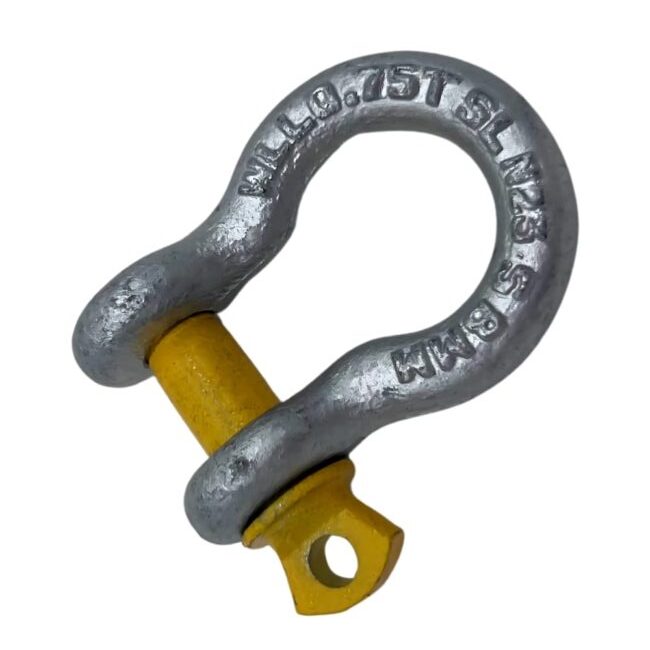

8mm Galvanised Bow Shackle for 10mm Safety Chain
8mm bow shackles are often used on off-road trailers, caravans, and campers. It even suits off-road boat trailers as it has a galvanised shackle body.
Bow Shackle Specifications
Key feature: Hot-dipped galvanised bow body to maximise longevity and rust protection.
8mm – 3,000kg Max ATM
- Aggregate Trailer Mass (ATM): 3000kg maximum
- Working Load Limit (WLL): 0.75t
- Shackle Grade: S
- Pin Diameter: 8mm
10mm – 4,000kg Max ATM
- Aggregate Trailer Mass (ATM): 4000kg maximum
- Working Load Limit (WLL): 1t
- Shackle Grade: S
- Pin Diameter: 10mm
13mm – 2t Lifting Capacity (No ATM as over 4000kg)
- Aggregate Trailer Mass (ATM): 8000kg maximum
- Working Load Limit (WLL): 2t
- Shackle Grade: S
- Pin Diameter: 13mm
N.B. Each Bow Shackle is marked with WLL, size, manufacturer ID, grade, and batch number (per Australian Standard 2741).
Selecting the right bow shackle for your application (such as rating and size) is important, as undersizing/oversizing can lead to complications. Couplemate™ recommends this 8mm bow shackle for maximum 3000kg ATM.
For the trailer side, the Couplemate™ CM551-3 Safety Chain Holder is a popular drawbar connector.
Similar Tow Bar Components
- Anti-Rattle Shim Kit for Noisy Tow Bars
- G80 Hammerlock (Trailer Butterfly Clips)
- Towing Strap – 60mm x 9 mtr
Dee and Bow Shackles links
- 3.0t ATM Off-Road Galvanised Bow Shackle
- 4.0t ATM Off-Road Galvanised Bow Shackle
- 3.0t ATM Tow Bar D-Shackle (9.5mm)
- 4.0t ATM Tow Bar D-Shackle (10mm)
- 6.0t ATM Tow Bar D-Shackle (11mm)
Additional information
| Weight | .2 kg |
|---|---|
| Dimensions | 5 × 2 × 2 cm |
| Working Load Limit (WLL) | 0.75t – 3,000kg ATM, 1.0t – 4,000kg ATM, 1.5t, 2.0t |
| Coating | Galvanised |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
-
