4.0t Adjustable Trailer Stand – Extra Heavy Duty
Price
$373.80 Inc.GST

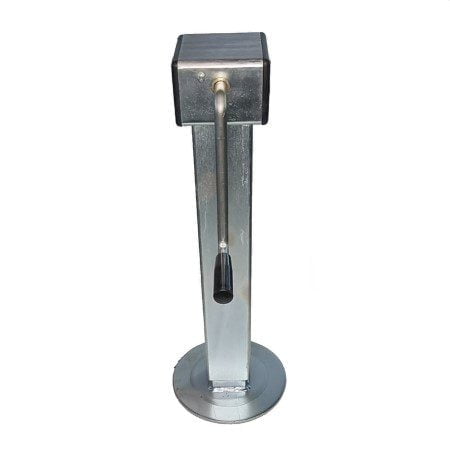

The Manutec™ ASSW-HD is an Extra Heavy Duty Adjustable Trailer Stand to safely stabilise your trailer. Commonly seen on larger work trailers and agricultural application.
✓ Rated at 4000kg static load capacity for large trailers.
✓ 580mm closed height with 310mm lift (890mm total).
✓ Convenient side winding handle (fixed).
Shipping
Extra Heavy Duty Adjustable Trailer Stand
This extra heavy duty adjustable stand is ideal for stabilising plant trailers, camper trailers, caravans, and agricultural equipment.
Please note that the non-swivel leg must be fixed to the chassis rail permanently.
What Makes it “Extra” Heavy Duty?
Most drawbar stands and jockey wheels are designed to take 10% of a trailers ATM (i.e. the ball weight).
As an example, a normal static load capacity for a 2000kg ATM caravan is 200kg. This trailer stand has a static load capacity of 4000kg (4.0t).
Common Trailer Applications
Ideal for stabilising plant trailers, fifth-wheeler gooseneck caravans, and heavier work or agricultural equipment.
This heavy duty stand is a necessary inclusion in your trailer toolkit if you’re a commercial contractor, farmer, or outdoor enthusiast.
4.0t Adjustable Stand Specifications
- Outer tube: 80mm x 80mm x4mm.
- Inner tube: 70mm x 70mm x 4mm.
- Closed height: 580mm.
- Lift: 310mm.
- Drive Ratio: 2:5:1.
- Finish: Zinc
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 60 × 15 × 15 cm |
| Coating | Zinc |
| Static Load Capacity | 4000kg (4.0t) |
