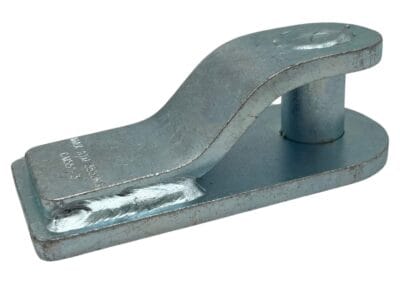

3.5t Aluminium Trailer Safety Chain Holder Kit
Price
$258.00 Inc.GST
Safety chain is required on all boat trailers with a rigid drawbar. This boat trailer chain holder kit suits marine application and is designed for 3.5t ATM aluminium trailers.
✓ Designed for 3.5t ATM boat trailers with an aluminium body.
✓ Kit includes galvanised safety chain, G80 hammerlock, and drawbar holder.
✓ Easily bolts to the aluminium drawbar through Grade 8 bolts (not included).
Shipping
3.5t Aluminium Trailer Safety Chain Holder Kit
Safety chain holder for aluminium chassis rail. Grade 8.8 bolts are required but not included in this kit.
This chain holder passed all regulatory requirements for safety chain attachment to aluminium boat trailers.
Bolting safety chains to the trailer is not legal, although we have often witnessed bolted safety chains on trailers at the boat ramp.
What is a CTA, and what does it mean for me?
ROVER is an administration system for the Road Vehicle Standards (RVS) legislation that administers CTA Approvals. This legislation replaces the Motor Vehicle Standards Act 1989.
A CTA number is your guarantee that the Government has approved the product you are purchasing for use by vehicle manufacturers and has passed all the tests required by regulations.
Approvals for Aluminium Drawbar Trailers
- CTA-061230 13mm Safety Chain
- CTA-061915 – Safety Chain Holder
Testing Specifications
- Longitudinal Tension: 37kN (Pass)
- Vertical Tension: 18.9kN (Pass)
Safety chain holders are available in two models:
- 10mm suit trailers up to 2.5t
- 13mm suit trailers from 2.5t to 3.5t (note, two pcs required)
Comparative products
Dee or bow shackles are not approved for attaching safety chains to safety chain holders (on the trailer).
Conversely, dee / Bow shackles are approved for attachment of the safety chain to the tow bar only.
Can Dee Shackles lengthen safety chains? Hammerlocks but not multiple dee shackles may lengthen chains.
Furthermore, the shackles do not connect to the safety chain holder, so the chain must not be detached from the chassis rail. It is possible to separate the chain using dee shackles.
Also, once the safety chain holder has been installed and tensioned by your installer, it is installed for life or until the manufacturer decides the holder should be upgraded.

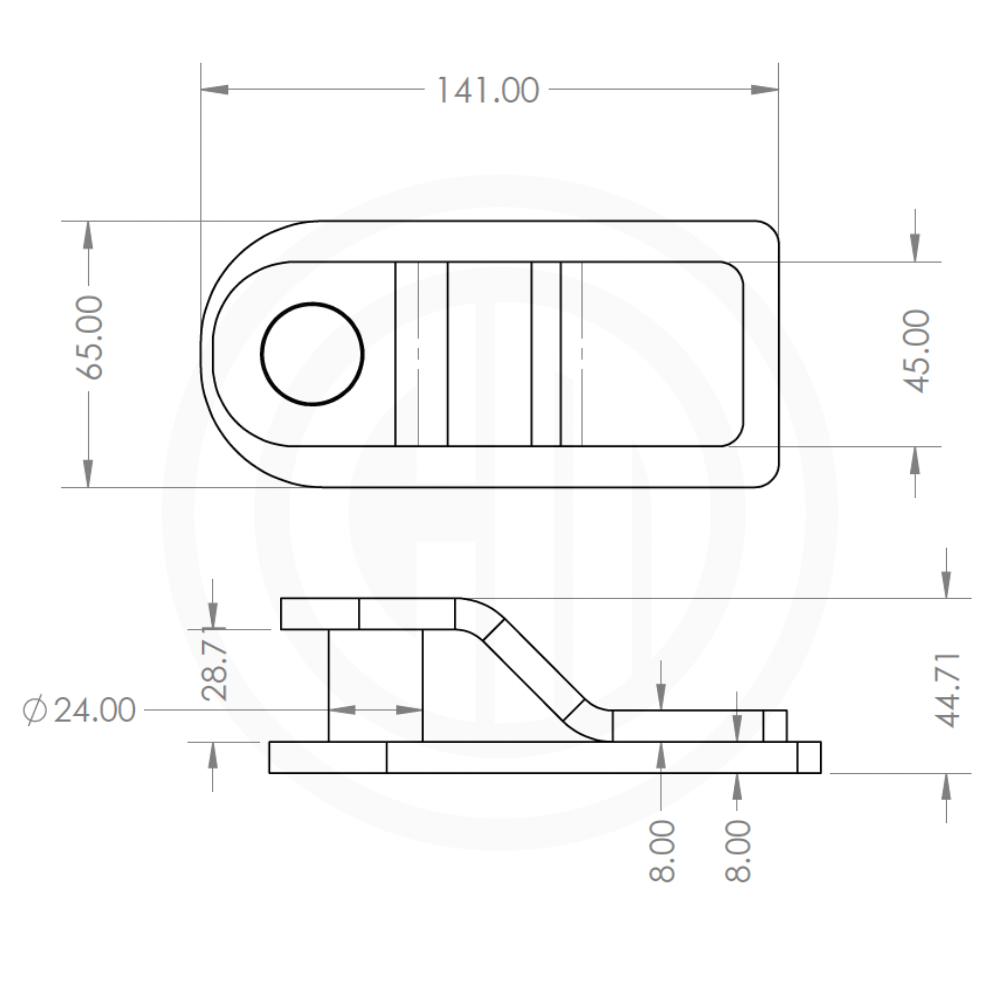

Safety Chain Plate Specifications
Legals
We have seen some pretty lousy chain setups in the past. As a result, we took the time to invent a simple solution to a critical problem.
Weld the safety chain or safety chain holder to your chassis rail. Welding the chain holder to a bracket and then bolting to the chassis rail using Grade 8 bolts is an accepted practice.
For example, welding steel brackets to aluminium trailers is impossible unless some innovative engineering is provided.
Weld only half a link directly to the trailer. However, Aluminum chains are not permissible as safety chains.
In conclusion, the bracket holes accommodate 6 x M8.8 high tensile bolts and 100mm of weld top and bottom.
Links to Standard Safety Chain Holders
- 10mm x 2.5t Galvanised Trailer Safety Chain
- 10mm x 2.5t Safety Chain and Holder Kit
- 13mm x 3.5t Galvanised Trailer Safety Chain
- Drawbar Safety Chain Holder – 3.5t ATM Rated
- 10mm G80 Safety Chain Connection Kit (4.5t ATM)
- 13mm Safety Chain Connection Kit (3.5t ATM)
- 2.0t Safety Chain Hook Set (6mm)
- 4.0t Safety Chain Hook Set (8mm)
- 6.0t Safety Chain Hook Set (10mm)
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 20 × 10 × 10 cm |
| Materials | 250G Steel, High Tensile Steel (4140), High-Tensile Alloy Steel (G80) |
| Max. ATM |
