Coil Spring Independent Suspension
Price
Price range: $165.00 through $195.00 Inc.GST
Shipping

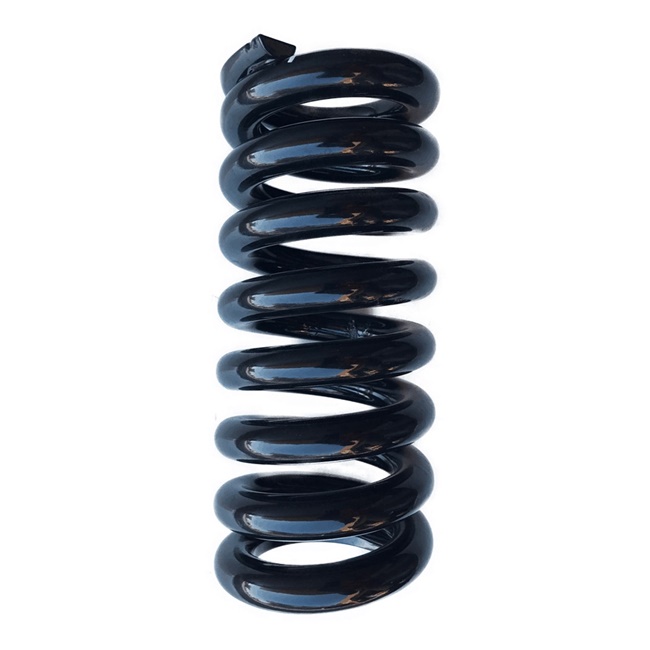

Replacement Heavy-Duty Coil Springs for Independent Trailer Suspension
Upgrade or replace your camper trailer axle suspension with our premium range of five powder-coated Australian-made coil springs, precision-rated from 600kg to 1125kg per spring.
Product Description
Ensure your caravan or camper trailer handles corrugated outback tracks with ease. Traditional leaf spring suspensions on solid axles are considered inferior to heavy-duty, independent front suspensions. An independent suspension offers significant advantages in ride height on dirt roads.
Without a solid axle beam in the middle of the trailer to scrape ridges, you gain maximum ground clearance when navigating deep ruts. As your trailer’s payload increases, upgrading your suspension system is vital.
We use only premium, Australian-made Lovells springs in our Couplemate independent suspension assemblies. Our replacement coils feature a durable, powder-coated protective layer.
Each spring is engineered for optimal spring rate tuning, compressing exactly 1mm for every 30kg of load (or 0.0333mm per 1kg).
Please note: Lovells Australia may supply blue powder-coated springs when the standard black series is out of stock. If your trailer uses a competitor’s suspension brand, please measure your original dimensions thoroughly before purchasing, as we cannot verify competitor coil sizing.
Key Features
- Australian Made: Genuine Lovells quality engineering.
- Corrosion Resistant: High-grade powder-coated finish.
- Optimal Ground Clearance: Eliminates the central axle beam drag point.
- Heavy-Duty Design: Built thicker than standard competitor springs for ultimate survival across all off-road loading profiles.
Technical Specifications
| Part Number / Model | Pair Load Rating | Single Spring Capacity | Free Height | Working Height | Inside Diameter (ID) | Outside Diameter (OD) | Material Thickness | Identification Mark |
|---|---|---|---|---|---|---|---|---|
| COIL-725 | 1450kg | 600kg – 725kg | 230mm | 190mm | 65mm | 97mm | 16mm | Red Dot |
| COIL-900 | 1800kg | 800kg – 900kg | 230mm | 190mm | 65mm | 101mm | 18mm | White Dot |
| COIL-1225 | 2500kg | 1000kg – 1225kg | 230mm | 190mm | 65mm | 104mm | 19mm | Yellow Dot |
Compatible Suspension Kits
These replacement coil springs are direct fits for the following towing assemblies:
Frequently Asked Questions
1. Why is the 16mm coil better than competitor choices?
Our 16mm coil is structurally stronger and more robust than most aftermarket springs on the market with a similar rating. We intentionally selected a 16mm baseline thickness to ensure long-term durability and fatigue resistance under punishing off-road load conditions.
2. Will these springs fit my non-Couplemate trailer suspension?
If you run another brand of suspension, please verify your existing coil dimensions against our specifications sheet before ordering. We do not keep records of competitor technical dimensions and cannot guarantee cross-compatibility without exact measurements.
3. My suspension has internal shock absorbers. Will these work?
Some trailer manufacturers design independent setups with a shock absorber mounted inside the coil. Please carefully measure the inside-diameter clearance of your original setup to confirm there is no internal fouling before completing your purchase.
4. Why did my order arrive with blue springs instead of black?
Lovells Australia manufactures our high-grade springs locally. During periods where the standard black series is temporarily out of stock, Lovells supplies identical factory-spec springs finished in their iconic signature blue powder coat to eliminate shipping delays.
📋 Installation & Maintenance Rules
✔️ The Do’s
- Always replace in pairs: Change both the left and right sides at the same time to maintain uniform ride height and equal side-to-side handling dynamics.
- Verify suspension ratings: Ensure your independent suspension rating exceeds your total towed trailer weight by at least 20% for a critical safety buffer.
- Inspect auxiliary hardware: Visually check trailing arm bushings, mount welds, and shock absorbers during replacement; replace worn parts instantly.
- Torque to factory spec: Secure all mounting hardware and safety pins firmly, and have a professional wheel alignment after installation.
❌ The Don’ts
- Do not overload the coils: Never exceed the maximum rated payload configuration (e.g., 2,500kg per axle limits) to avoid catastrophic bottoming out.
- Do not mix spring rates: Avoid pairing a brand-new progressive coil with an old, sagging, or different-spec factory spring.
- Do not use heat to modify: Never apply a blowtorch or heat source to force a fit, as heating permanently alters the heat-treated spring steel’s structural integrity.
- Do not neglect routine checkups: Avoid leaving your trailer uninspected; check for loose hardware or rust after long storage periods or heavy off-road trips.
❓ Frequently Asked Questions
How do I know my independent trailer coil springs need replacing?
▼
Look out for visible trailer sagging on one side, uneven tyre wear, or a noticeably rough, bouncy ride. If you see structural cracks, severe corrosion from storage, or if the coil bottoms out under normal loads, replace it immediately.
Will these replacement springs fit my specific brand of camper trailer?
▼
These heavy-duty replacement springs are designed to seamlessly integrate with most major imported independent trailing arm suspension setups (IFS). Always measure your current coil height, inside/outside diameter, and wire thickness to cross-reference dimensions prior to purchasing.
Can I install these replacement heavy-duty coils myself?
▼
Yes, if you have appropriate heavy-duty mechanical equipment like high-capacity jack stands and proper mechanical spring compressors. Because coil springs store high energy under immense tension, we strongly recommend professional installation or professional alignment checks for maximum road safety.
What is the difference between a linear and progressive coil spring?
▼
Linear coil springs maintain a fixed stiffness rate across their entire compression stroke. Progressive coils feature a varied pitch or tapered wire thickness, delivering a smooth ride quality under light unladen loads while stiffening up to handle heavy payloads over rough off-road terrain.
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 30 × 13 × 13 cm |
| Coil Size | 1225kg, 600kg, 800kg |
