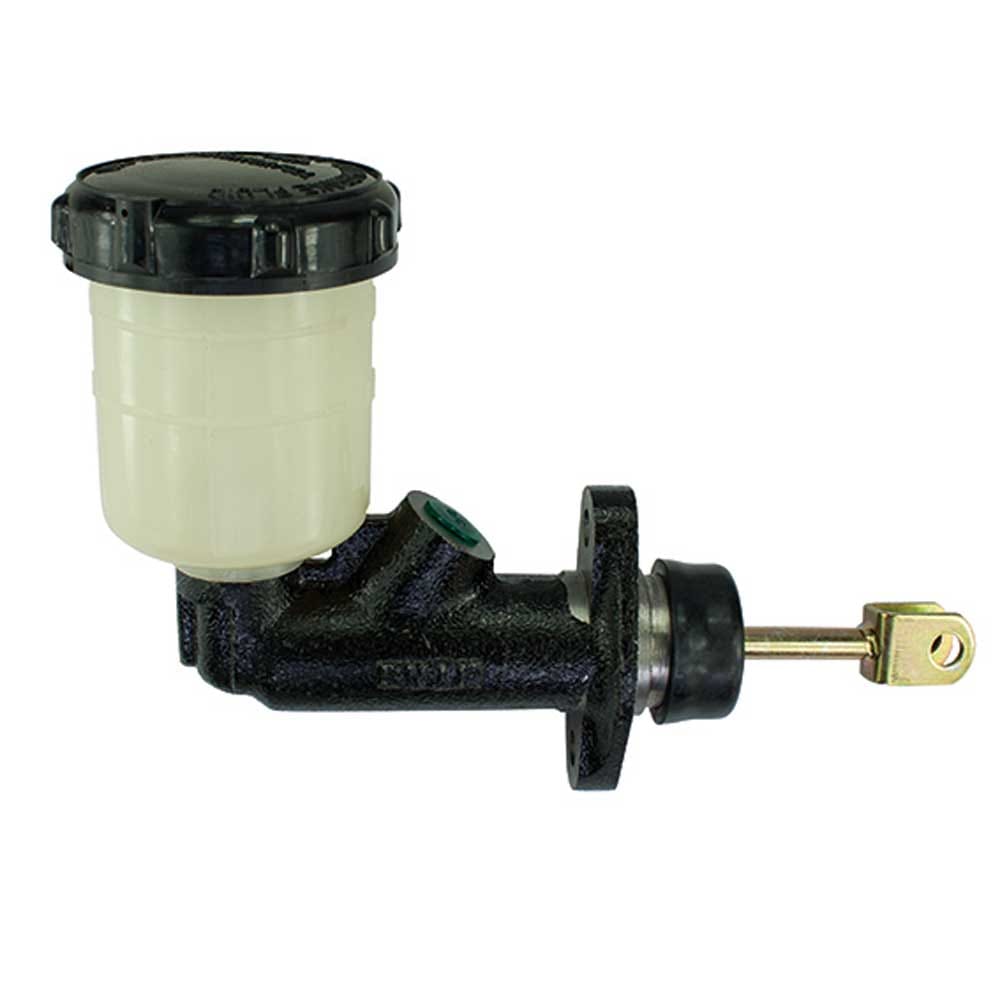

7/8″ Hydraulic Trailer Master Cylinder – 313007

SKU: HYDRAULIC-001-7/8 Category: Brake Caliper Repair Parts Tags: Hydraulic, Master Cylinder Brand: ECTBS

7/8&Quot; Hydraulic Trailer Master Cylinder - 313007

Price

$35.95 Inc.GST

10 in stock

Suits: 2000kg override couplings that tow tandem axle trailers.
Wheel Compatibility: Best suited to 14-inch, 15-inch and 16-inch wheels.

Shipping

Select delivery location

7/8″ Hydraulic Trailer Master Cylinder

Hydraulic trailer master cylinder, 7/8 inch to suit 2000kg override couplings that tow tandem axle trailers. Best suited to 14-inch, 15-inch and 16-inch wheels.

Bled and adjusted brakes are the key to an efficient hydraulic braking system. Once the brakes have been bled, tighten the nut on the back of the brake lever.

Fitting Instructions

Fit the master cylinder bracket on the rear bolt mounts.
Bolt hole mounts are 54mm between centres.
Select 1/2-inch bolts that bolt right through your bracket, coupling and draw bar.
Disconnect the parking brake.
Adjust the lower nut 2mm from the back of the override, then lock it off.

A zinc bracket is required for hydraulic braking systems.

How Much Free Play: Our Advice

How Much: You must have at least 2mm free play – between 2mm and 5mm – when the hydraulic brake pads start to wear.
If there is no free play: As soon as the brakes start to work and get a little warm, you will begin to get brake build-up. This increases heat and burns out your brakes, or even pops the seals in the master cylinder

What type of brake fluid should I use?

DOT 3 or DOT 4 should be used in your boat trailer. This type of hydraulic oil does not absorb water, but the silicone in DOT 5 can cause seals to swell and bind up caliper pistons.

Hydraulic Master Cylinders and Replacement Parts

There are no FAQs for this product.

Additional information

Weight	1 kg
Dimensions	20 × 12 × 8 cm
