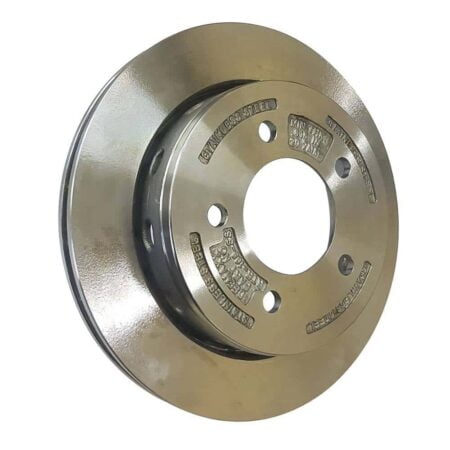

Stainless Top Hat Disc Rotor

$448.00$528.00 inc GST

SKU: N/A Category:


Stainless Top Hat Disc Rotor

Stainless Top Hat Disc Rotor ideal for all Australian and American galvanised hubs. This suits a 10-inch or 12-inch disc rotor setup.

Note: Genuine DeeMaxx equipment from the USA

You will also need a galvanised hub to fit these rotors onto your axles. Spare parts include replacement disc pads and bearings.

Stainless Rotors fit the following stud patterns

  • Ford – PCD 4.5 inch or 112.5mm. Suits a 10-inch rotor.
  • 6 Stud Landcruiser PCD – 140mm. Suits 12″ rotor
  • 5 Stud Landcruiser PCD – 150mm. Suits 12″ rotor

American rotor wall thickness is 18mm.

Australian 10-inch calipers have 15mm disc rotor walls. Stainless top hat rotors suit DeeMaxx and Kodiak calipers only.

American rotors are ideal for 3t trailers due to twin-piston calipers. Australian hydraulic calipers have a lower braking capacity.

If you have Australian or American hubs, this stainless rotor will fit however you must use American calipers only.

Purchase associated trailer parts below

Couplemate Trailer Parts sells only the best quality Stainless Top Hat Disc Rotor and caravan spare parts throughout Australia.

Customers are welcome to either pickup or take advantage of our low freight rates. Express shipping to Melbourne, Sydney, Brisbane, Perth, Adelaide, Darwin, and Hobart.

We also ship products to New Zealand via Australia Post Air Express.

© Steve Wotherspoon April 26, 2018. Images and text may be copied, provided a link back to the copied page and the source is displayed where the content or image is located.

Additional information

Weight6 kg
Dimensions40 × 40 × 10 cm
Stud Pattern

Ford 5 Stud, Land Cruiser 6S, Land Cruiser 5S
